Panduit LCD10-14D-L | Tin-Plated Copper Compression Connectors - Lu...
Description
Description

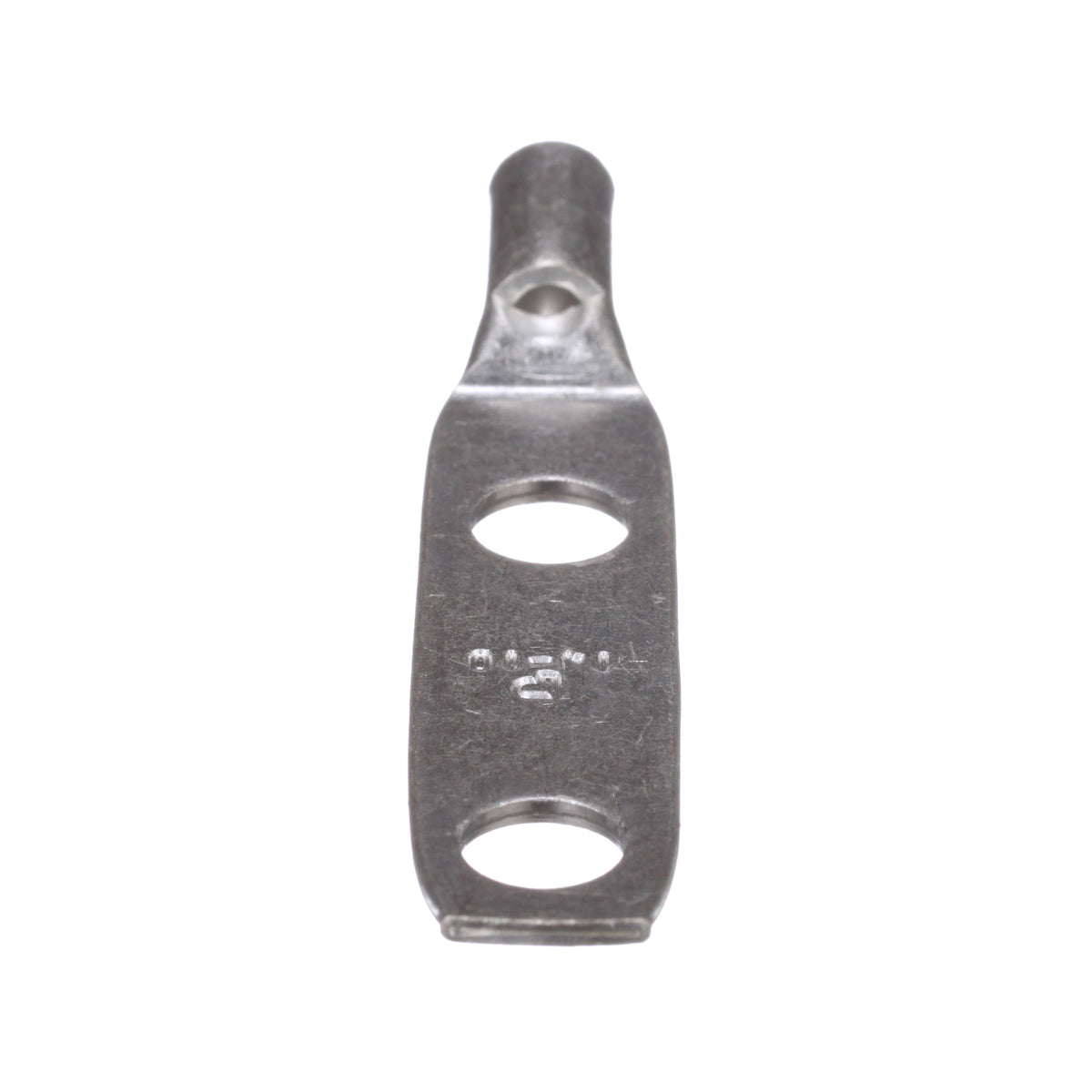

Panduit Pan-Lug Compression Connector Lug, 2-Hole, Series: LCD, Solid/Stranded Copper Conductor, 12 to 10 AWG, 14 to 10 AWG Conductor, 35 kVAC, 42.826 in Stud, Straight Tongue, 0.42 in W x 0.05 in THK Tongue, 2.16 in Overall Length, Seamless/Standard with Inspection Window Barrel, 0.13 in ID x 0.22 in OD x 0.38 in L Barrel, 7/16 in Wire Strip Length, 1 in Stud Hole Spacing, Tin Plated Finish, 90 deg C, 42552 in Mounting Hole, Copper
Features + Benefits
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- 14 to 10 AWG stranded, 12 to 10 AWG solid
- Consult cable manufacturer for voltage stress relief instructions with applications greater than 2000 V
- For use with stranded copper conductors
Panduit LCD10-14D-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498397379 Key Specs
| Copper Conductor Size (AWG) | #14 |
| Copper Conductor Size (kcmil) | 4.11 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.38 |
| Barrel Length (mm) | 9.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.42 |
| Tongue Width (mm) | 10.7 |
| Tongue Thickness (In.) | 0.05 |
| Tongue Thickness (mm) | 1.3 |
| Overall Length (In.) | 2.16 |
| Overall Length (mm) | 54.9 |
| Wire Strip Length (In.) | 42,552 |
| Wire Strip Length (mm) | 11.1 |
