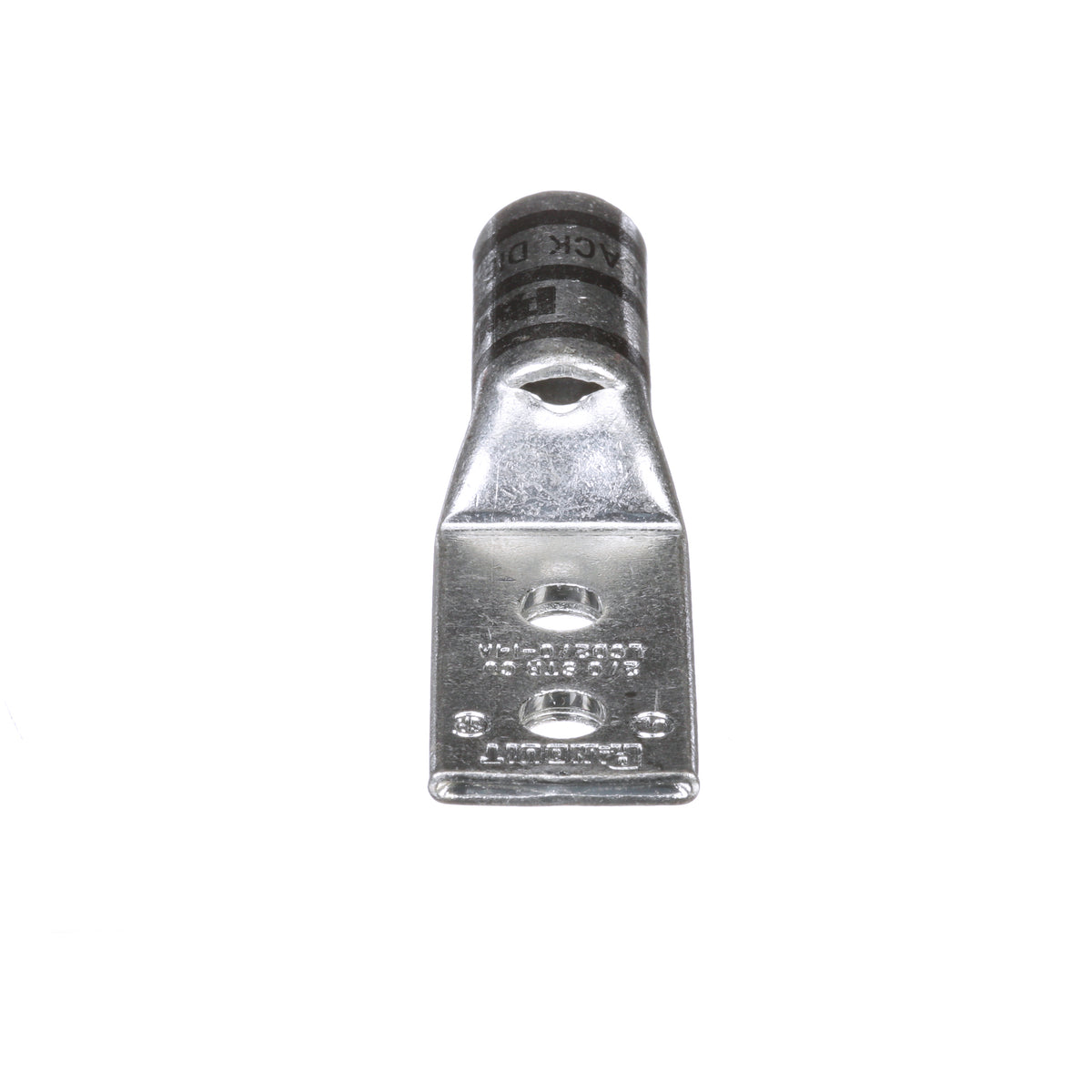

Panduit LCD2/0-14A-X | Pan-Lug Comp. Lug, 2/0, Tin Plt Copper, Strt, Two 1/4" Stud, PK10
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD2/0-14A-X | Pan-Lug Comp. Lug, 2/0, Tin Plt Copper, Strt...
Description
Description
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCD, Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 1/4 in Stud, Standard Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 2.7 in Overall Length, Standard With Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 0.98 in L Barrel, 1-1/16 in L Wire Strip, 5/8 in Stud Hole Spacing, 90 deg C, 1-1/16 in Mounting Hole, Tin Plated Copper, Black
Panduit - LCD2/0-14A-X - Features
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Specifications
Specifications
Panduit - LCD2/0-14A-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCD2/0-14A-X |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Copper Code Conductor Size (AWG) | 2/0 |
| Barrel Length (In.) | 0.98 |
| Barrel Length (mm) | 24.9 |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.4 |
| Overall Length (In.) | 2.7 |
| UPC | 07498338324 |
Panduit - LCD2/0-14A-X - Videos
| Panduit LCD2/0-14A-X Video 1 | Click to View |
|---|---|
| Panduit LCD2/0-14A-X Video 2 | Click to View |
