Panduit LCD2/0-38DF-X | Tin-Plated Copper Compression Connectors - ...
Regular price
$12.43
Unit price
Brand: Panduit
|
SKU:
LCD2/0-38DF-X
Regular price
$12.43
Unit price
Shipping calculated at checkout.
Description
Description

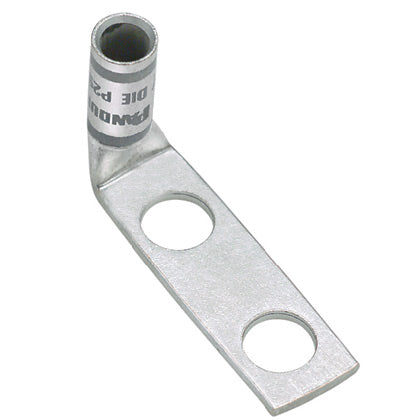

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCD, 2/0 AWG Conductor, Die Code: P45, 35 kV, 3/8 in Stud, 90 deg Tongue, 0.85 in W x 0.13 in THK Tongue, 2.66 in Overall Length, Standard Barrel, 0.98 in L Barrel, 90 deg C, 1.06 in Mounting Hole, Tin Plated Copper, Black
Features + Benefits
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Color coded barrel
Panduit LCD2/0-38DF-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356875 Key Specs
| Copper Conductor Size (AWG) | 2/0 |
| Copper Conductor Size (kcmil) | 133.1 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.98 |
| Barrel Length (mm) | 24.9 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.66 |
| Overall Length (mm) | 67.6 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
Panduit LCD2/0-38DF-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356875 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCD10-10AF-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCD2_0-38DF-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCD2/0-38DF-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356875 Environmental Information
| Panduit's RoHS Statement | Download and View |
