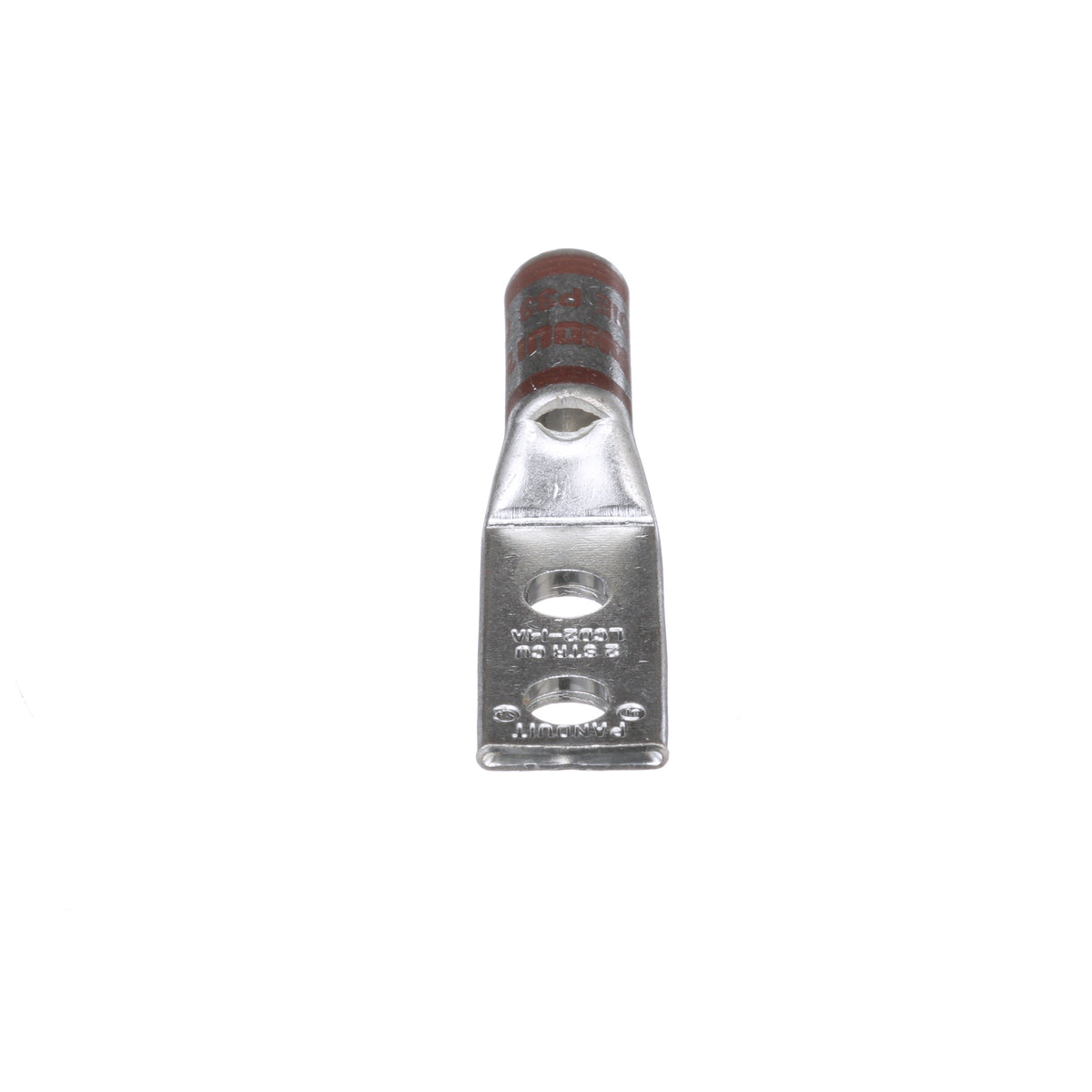

Panduit LCD2-14A-Q | Pan-Lug Comp. Lug, 2, Tin Plt Copper, Strt, Two 1/4" Stud, PK25
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD2-14A-Q | Pan-Lug Comp. Lug, 2, Tin Plt Copper, Strt, Tw...
Description
Description
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Panduit Compression Lug, 2-Hole, Series: LCD, Stranded Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 1/4 in Stud, Standard/Straight Tongue, 0.6 in W x 0.1 in THK Tongue, 2.4 in Overall Length, Standard/Inspection Window Barrel, 0.31 in ID x 0.42 in OD x 0.88 in L Barrel, 0.63 in Stud Hole Spacing, 15/16 in L Wire Strip, Tin Plated, 90 deg C, 15/16 in Mounting Hole, Copper, Brown
Panduit - LCD2-14A-Q - Features
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
Specifications
Specifications
Panduit - LCD2-14A-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCD2-14A-Q |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Copper Code Conductor Size (AWG) | 2 |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Width (In.) | 0.6 |
| Tongue Width (mm) | 15.3 |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.6 |
| Overall Length (In.) | 2.4 |
| UPC | 07498338298 |
Panduit - LCD2-14A-Q - Videos
| Panduit LCD2-14A-Q Video 1 | Click to View |
|---|---|
| Panduit LCD2-14A-Q Video 2 | Click to View |
