Brand: Panduit
|
SKU:
LCD2-14D-Q

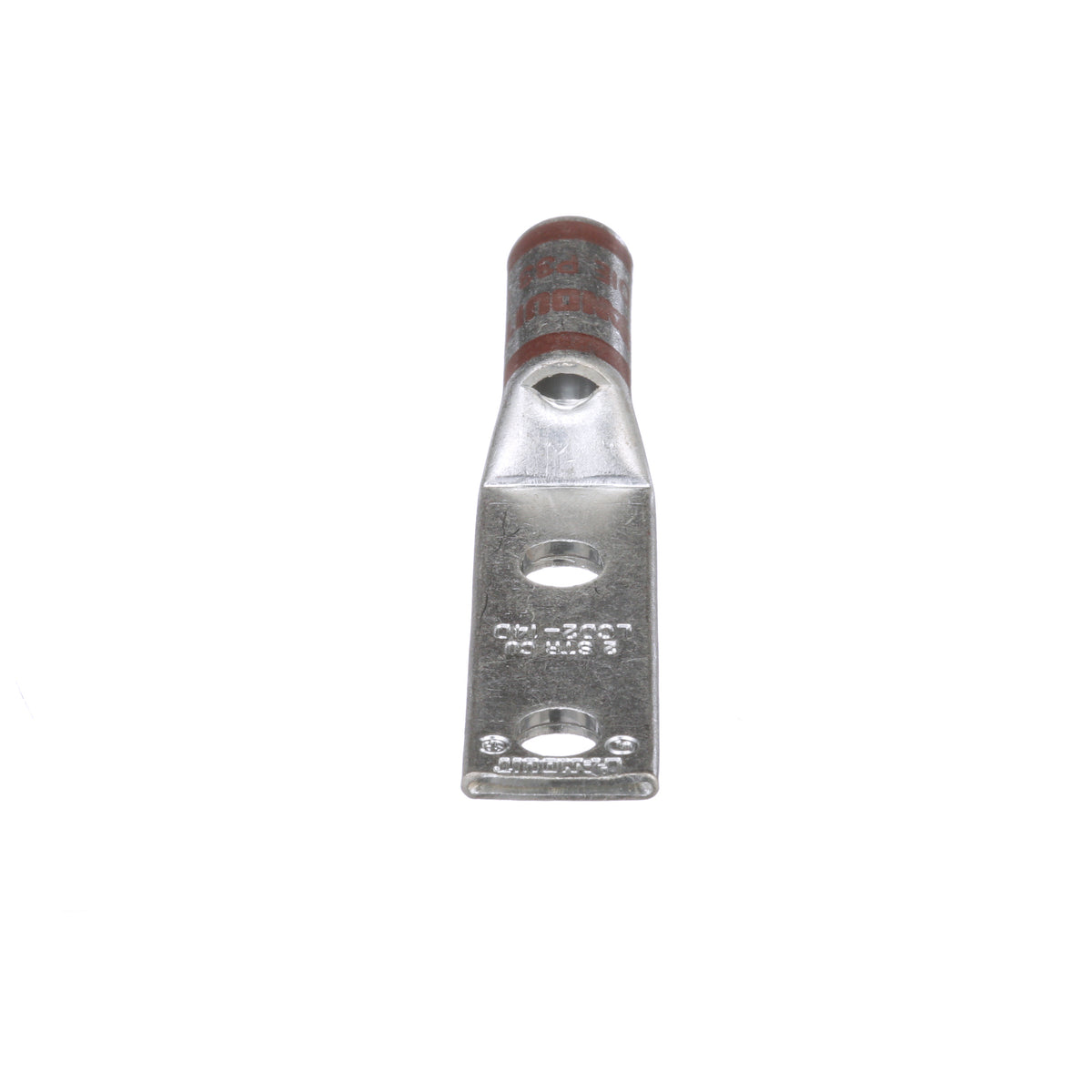

Panduit LCD2-14D-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338300
Regular price
$8.90
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD2-14D-Q | Tin-Plated Copper Compression Connectors - Lug...
Regular price
$8.90
Unit price
Description
Description
Panduit Compression Lug, 2-Hole, Series: LCD, Stranded Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 1/4 in Stud, Standard/Straight Tongue, 0.6 in W x 0.1 in THK Tongue, 2.77 in Overall Length, Standard/Inspection Window Barrel, 0.31 in ID x 0.42 in OD x 0.88 in L Barrel, 1 in Stud Hole Spacing, 15/16 in L Wire Strip, Tin Plated, 90 deg C, 15/16 in Mounting Hole, Copper, Brown
Features + Benefits
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCD2-14D-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338300 Key Specs
| Copper Conductor Size (AWG) | #2 |
| Copper Conductor Size (kcmil) | 66.36 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.6 |
| Tongue Width (mm) | 15.2 |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.5 |
| Overall Length (In.) | 2.77 |
| Overall Length (mm) | 70.4 |
| Color Code | Brown |
| Panduit Die Index Number | P33 |
Panduit LCD2-14D-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338300 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCD10-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCD2-14D-Q | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCD2-14D-Q | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338300 Environmental Information
| Panduit's RoHS Statement | Download and View |
