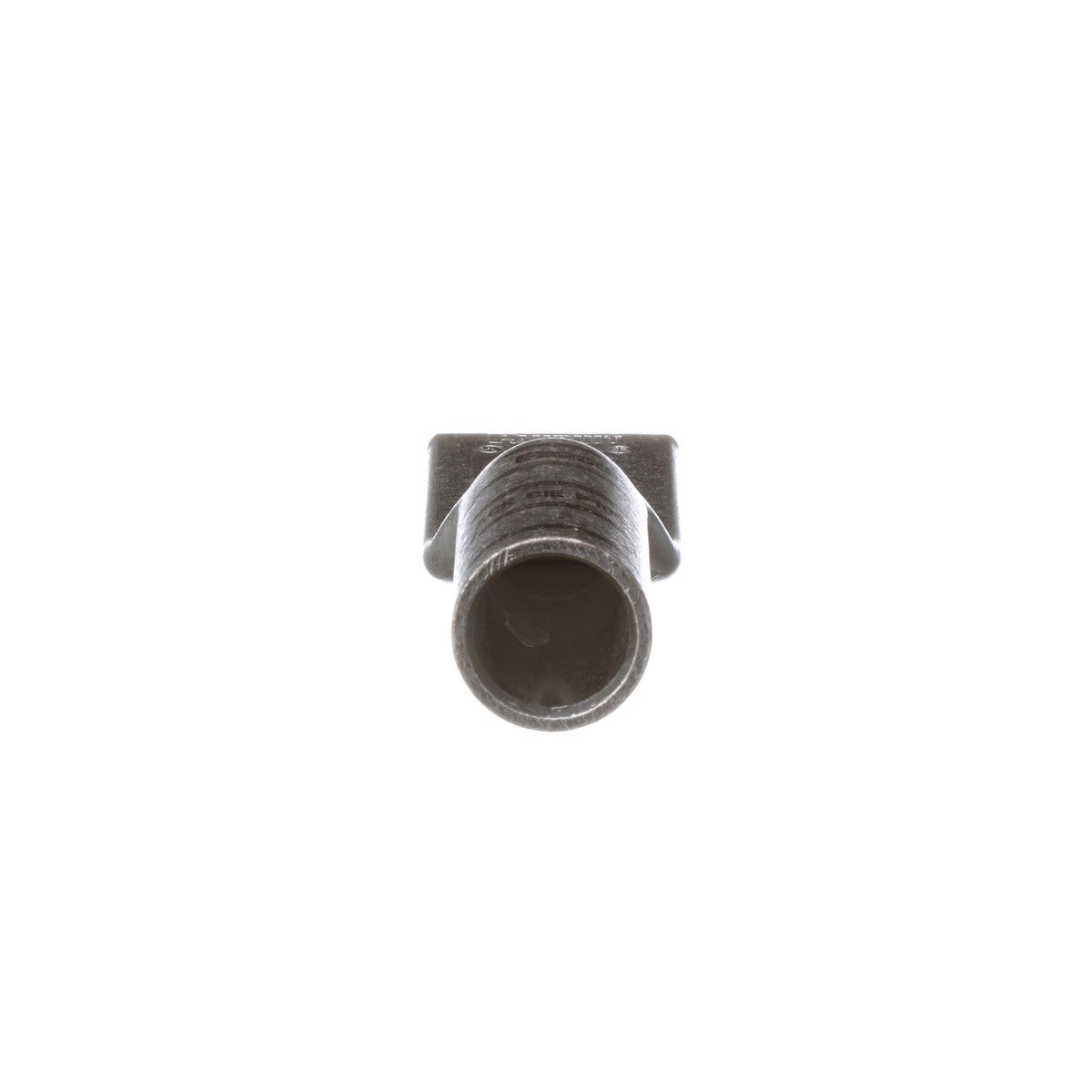

Panduit LCD2-38D-Q | Pan-Lug Comp. Lug, Tin Plt Copper, Strt, Two 3/8" Stud, PK25
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD2-38D-Q | Pan-Lug Comp. Lug, Tin Plt Copper, Strt, Two 3...
Description
Description
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
The LCD2-38D-Q Tin-Plated Copper Compression Lug, two-hole, standard barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. An inspection window aids to visually assure full conduc tor insertion, and the tin-plate material helps to inhibit corrosion. UL Listed and CSA Certified to 35 KV and temperature rated to 90C.
Panduit Compression Lug, 2-Hole, Series: LCD, Stranded Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 3/8 in Stud, Standard/Straight Tongue, 0.66 in W x 0.1 in THK Tongue, 3 in Overall Length, Standard/Inspection Window Barrel, 0.31 in ID x 0.42 in OD x 0.88 in L Barrel, 1 in Stud Hole Spacing, 15/16 in L Wire Strip, Tin Plated, 90 deg C, 15/16 in Mounting Hole, Copper, Brown
Panduit - LCD2-38D-Q - Features
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and teperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LCD2-38D-Q - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCD2-38D-Q |
| Barrel | Standard |
| Bolt Hole | 3/8 Inch |
| Gauge | 2 Awg |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Copper Code Conductor Size (AWG) | 2 |
| Barrel Length (In.) | 0.88 |
| Barrel Length (mm) | 22.4 |
| Tongue Width (In.) | 0.66 |
| Tongue Width (mm) | 16.8 |
| Tongue Thickness (In.) | 0.1 |
| Tongue Thickness (mm) | 2.6 |
| Overall Length (In.) | 3 |
| UPC | 07498338301 |
Panduit - LCD2-38D-Q - Videos
| Panduit LCD2-38D-Q Video 1 | Click to View |
|---|---|
| Panduit LCD2-38D-Q Video 2 | Click to View |
