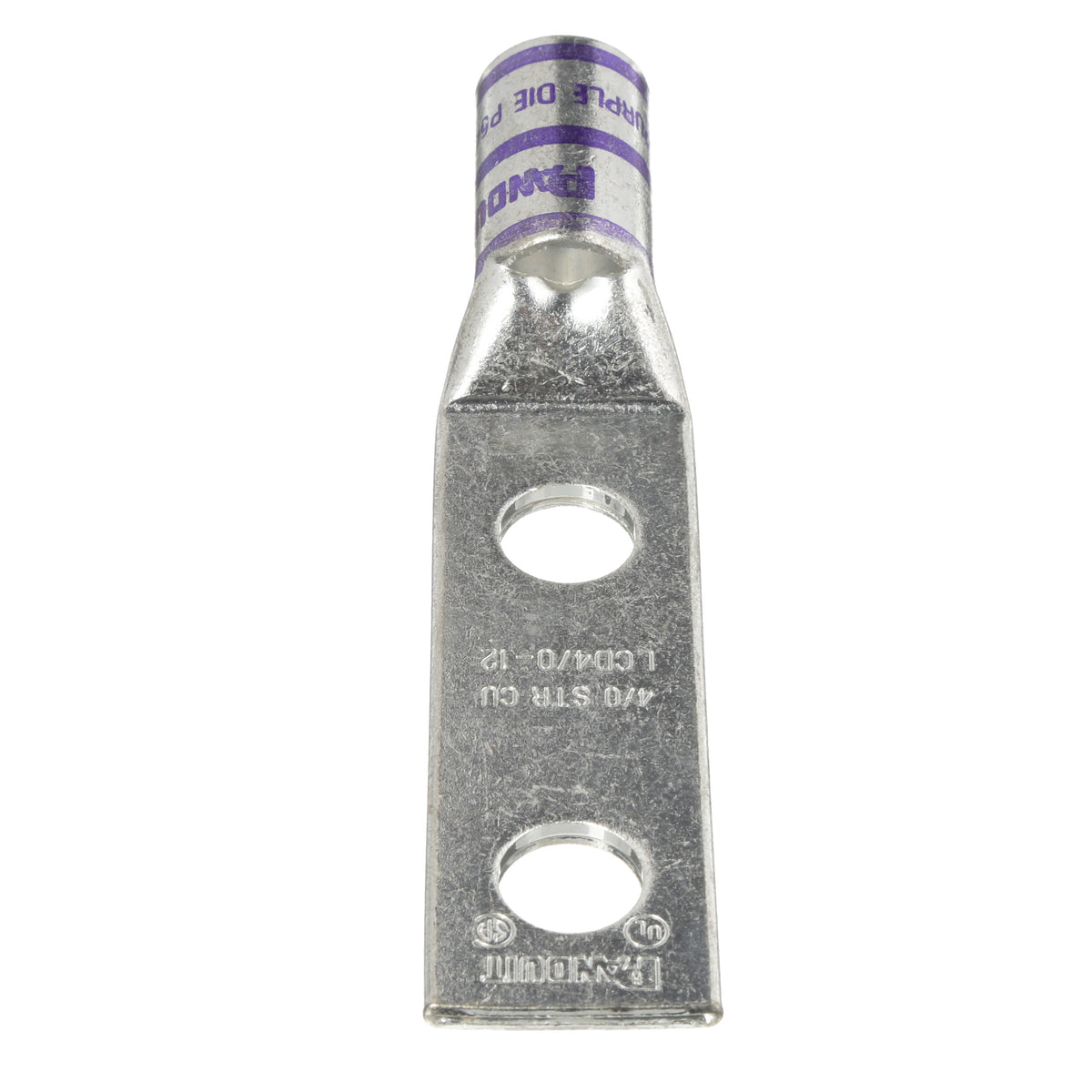

Panduit LCD4/0-12-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Two-hole, standard barrel lug with window, 4/0 AWG wire, 1/2 stud hole, 1.75 hole spacing, NEMA hole sizes and spacing.
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCD, Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 4.58 in Overall Length, Standard/Inspection Window Barrel, 0.57 in ID x 0.71 in OD x 1.19 in L Barrel, Specifications: 1-1/4 in L Wire Strip, 1-3/4 in Stud Hole Spacing, Tin Plated, 90 deg C, 1-1/4 in Mounting Hole, Copper, Purple
Panduit - LCD4/0-12-X - Features
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and teperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LCD4/0-12-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCD4/0-12-X |
| Barrel | Standard |
| Bolt Hole | 1/2 Inch |
| Gauge | 4/0 Awg |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/2 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Copper Code Conductor Size (AWG) | 4/0 |
| Barrel Length (In.) | 1.19 |
| Barrel Length (mm) | 30.2 |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 27 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 4.58 |
| UPC | 07498390096 |
Panduit - LCD4/0-12-X - Videos
| Panduit LCD4/0-12-X Video 1 | Click to View |
|---|---|
| Panduit LCD4/0-12-X Video 2 | Click to View |
