Brand: Panduit
|
SKU:
LCD4-10A-L

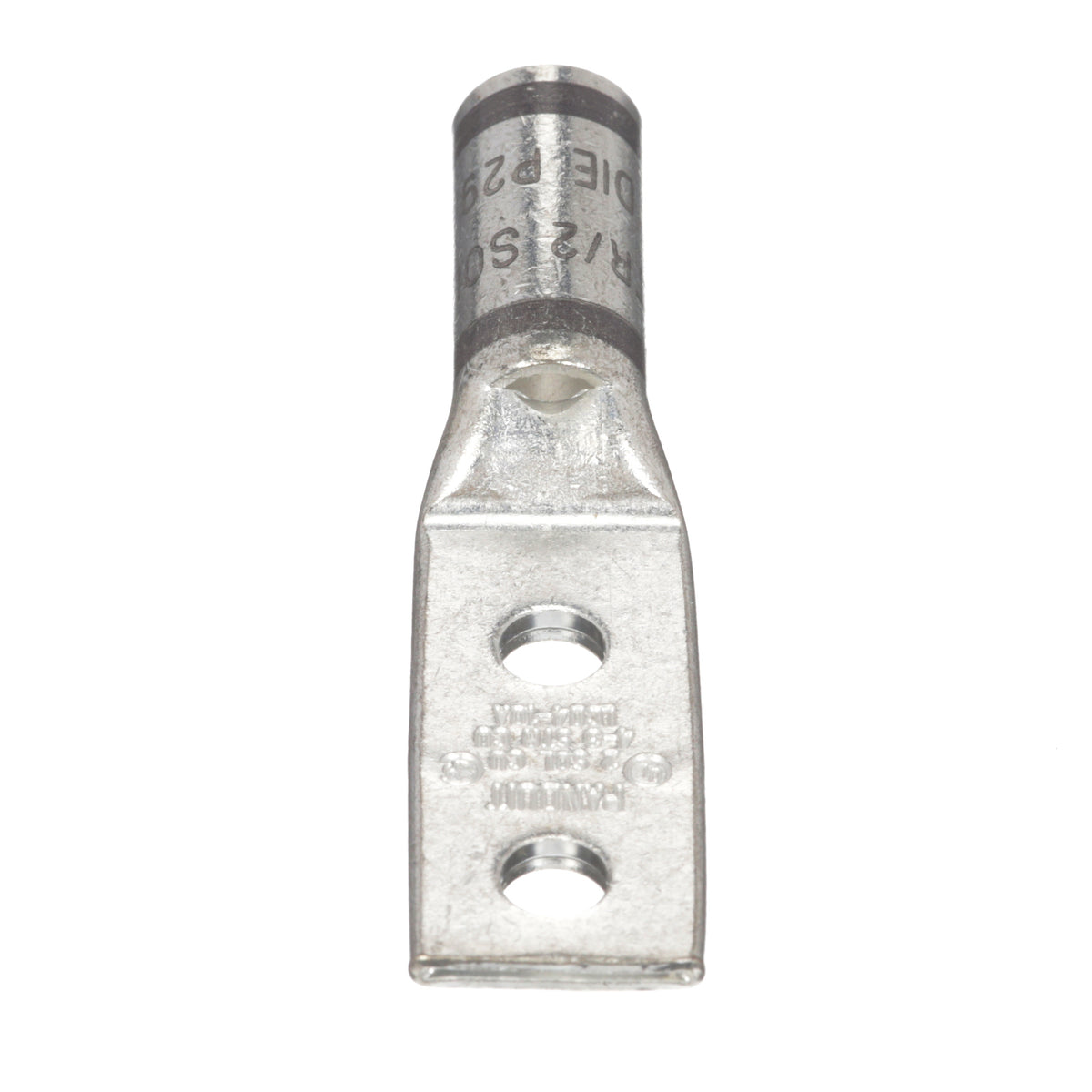

Panduit LCD4-10A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498383385
Regular price
$8.10
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD4-10A-L | Tin-Plated Copper Compression Connectors - Lug...
Regular price
$8.10
Unit price
Description
Description
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCD, Copper/Stranded Conductor, 4 to 3 AWG, 2 AWG Conductor, Die Code: P29, 35 kV, 0.19 in Stud, Straight Tongue, 0.55 in W x 0.09 in THK Tongue, 2.17 in Overall Length, Standard/Inspection Window Barrel, 0.28in ID x 0.38 in OD x 0.81 in L Barrel, Specifications: 7/8 in L Wire Strip, 0.63 in Hole Spacing, 90 deg C, 7/8 in Mounting Hole, Copper, Gray
Features + Benefits
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCD4-10A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498383385 Key Specs
| Copper Conductor Size (AWG) | #4 |
| Copper Conductor Size (kcmil) | 42 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 0.19 |
| Stud Hole Size (mm) | 4.8 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 2.17 |
| Overall Length (mm) | 55.1 |
| Color Code | Gray |
| Panduit Die Index Number | P29 |
Panduit LCD4-10A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498383385 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCD10-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCD4-10A-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCD4-10A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498383385 Environmental Information
| Panduit's RoHS Statement | Download and View |
