LCD4-14AF-L
Panduit LCD4-14AF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356772
Regular price
$9.45
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD4-14AF-L | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$9.45
Unit price
Description
Description

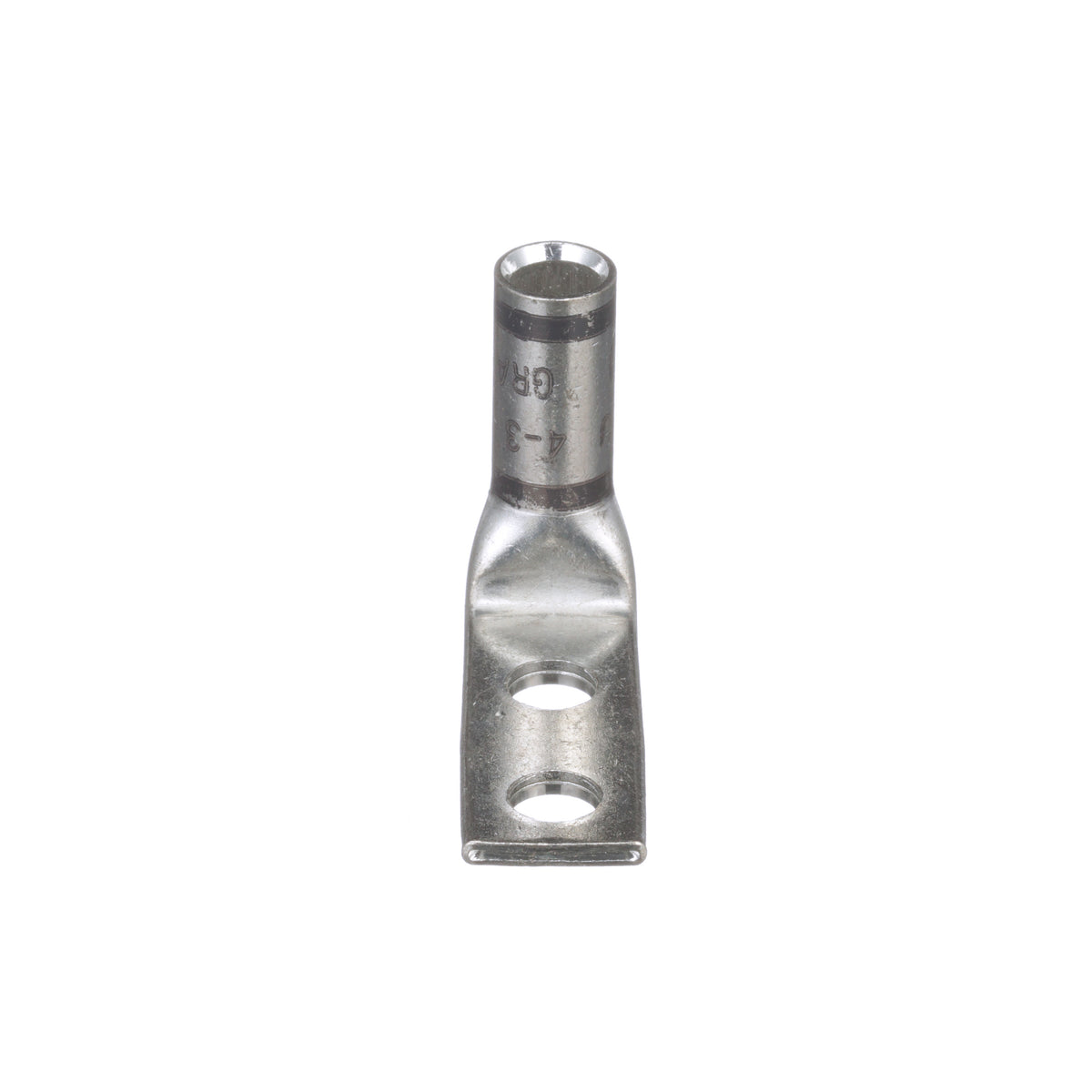

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCD, Stranded/Solid Conductor, 4 to 3 AWG, 2 AWG Conductor, Die Code: P29, 35 kV, 1/4 in Stud, 90 deg Tongue, 0.55 in W x 0.09 in THK Tongue, 1.74 in Overall Length, Standard Barrel, 0.81 in L Barrel, 90 deg C, 4.2954 in Mounting Hole, Tin Plated Copper, Gray
Features + Benefits
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Color coded barrel
Panduit LCD4-14AF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356772 Key Specs
| Copper Conductor Size (AWG) | #4 |
| Copper Conductor Size (kcmil) | 42 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.74 |
| Overall Length (mm) | 44.2 |
| Color Code | Gray |
| Panduit Die Index Number | 29 |
