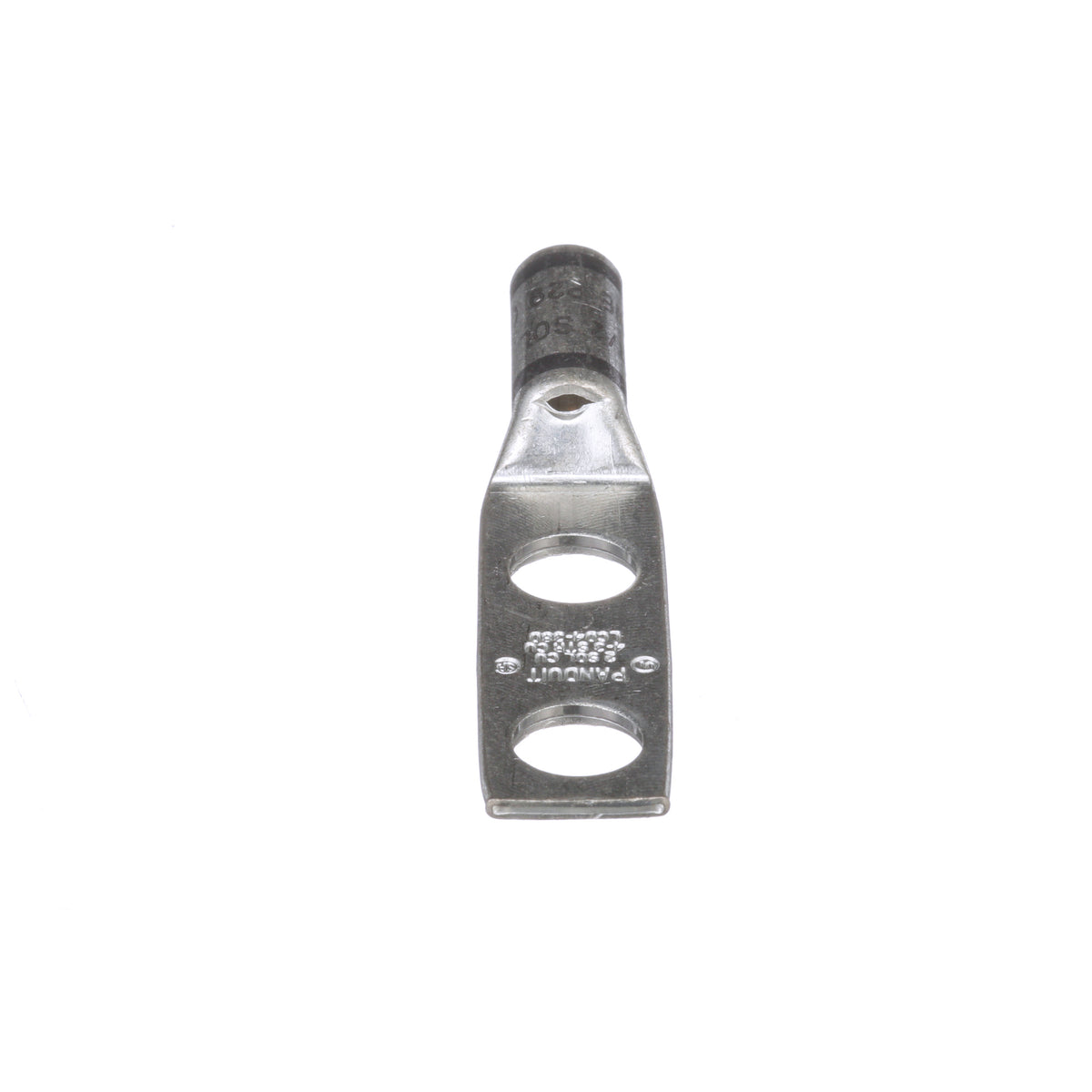

Panduit LCD4-38D-L | Pan-Lug Copper Compression Connectors - Lugs
Description
Description
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Two-hole, standard barrel lug with window, #4 " #3 AWG STR, #2 AWG SOL wire, 3/8 stud hole, 1 hole spacing.
Panduit Compression Lug, 2-Hole, Series: LCD, Solid/Stranded Copper Conductor, 4 to 3 AWG, 2 AWG Conductor, Die Code: P29, 35 kV, 3/8 in Stud, Standard/Straight Tongue, 0.62 in W x 0.08 in THK Tongue, 2.85 in Overall Length, Standard/Inspection Window Barrel, 0.28 in ID x 0.38 in OD x 0.81 in L Barrel, 1 in Stud Hole Spacing, 7/8 in L Wire Strip, Tin Plated, 90 deg C, 42.954 in Mounting Hole, Copper, Gray
Panduit - LCD4-38D-L - Features
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
- Color-coded barrels marked with PANDUIT and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- UL Listed and CSA Certified to 35 KV and teperature rated to 90C when crimped with PANDUIT and specified competitor crimping tools and dies
- UL Listed and CSA Certified for wide wire range-taking capability when crimped with PANDUIT(TM) Uni-Die(TM) Dieless Crimping Tools
- Tested by Telcordia - meets NEBS Level 3
- American Bureau of Shipping Approved
- Available with NEMA hole sizes and spacing
Specifications
Specifications
Panduit - LCD4-38D-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCD4-38D-L |
| Barrel | Standard |
| Bolt Hole | 3/8 Inch |
| Gauge | 4 Awg |
| Holes | 2 Hole |
| Inspection Hole | Yes |
| Lug Material | Copper |
| Type | Standard Compression |
| UNSPSC Code | 39121400 |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Copper Code Conductor Size (AWG) | 4 |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Width (In.) | 0.62 |
| Tongue Width (mm) | 15.8 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2.1 |
| Overall Length (In.) | 2.85 |
| UPC | 07498338307 |
