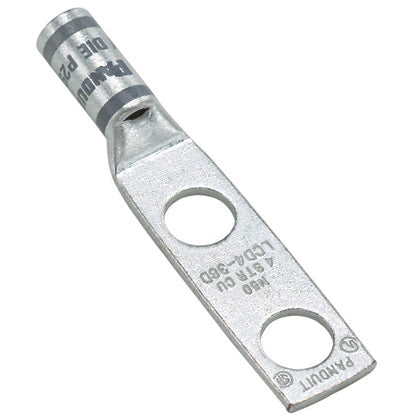

Panduit Compression Lug, 2-Hole, Series: LCD, Stranded Copper Conductor, 500 kcmil Conductor, Die Code: P87, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 4.74 in Overall Length, Standard/Inspection Window Barrel, 0.84 in ID x 1.06 in OD x 1.75 in L Barrel, 1-1/4 in Stud Hole Spacing, 1-13/16 in L Wire Strip, Tin Plated, 90 deg C, 1.81 in Mounting Hole, Copper, Brown
Features + Benefits
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCD500-12E-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498371966 Key Specs
| Copper Conductor Size (kcmil) | 500 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.25 |
| Stud Hole Spacing (mm) | 31.8 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.75 |
| Barrel Length (mm) | 44.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Tongue Thickness (In.) | 0.22 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 4.74 |
| Overall Length (mm) | 120.4 |
| Color Code | Brown |
| Panduit Die Index Number | P87 |
| Burndy Die Index Number | 20 |
