Brand: Panduit
|
SKU:
LCD6-10D-L

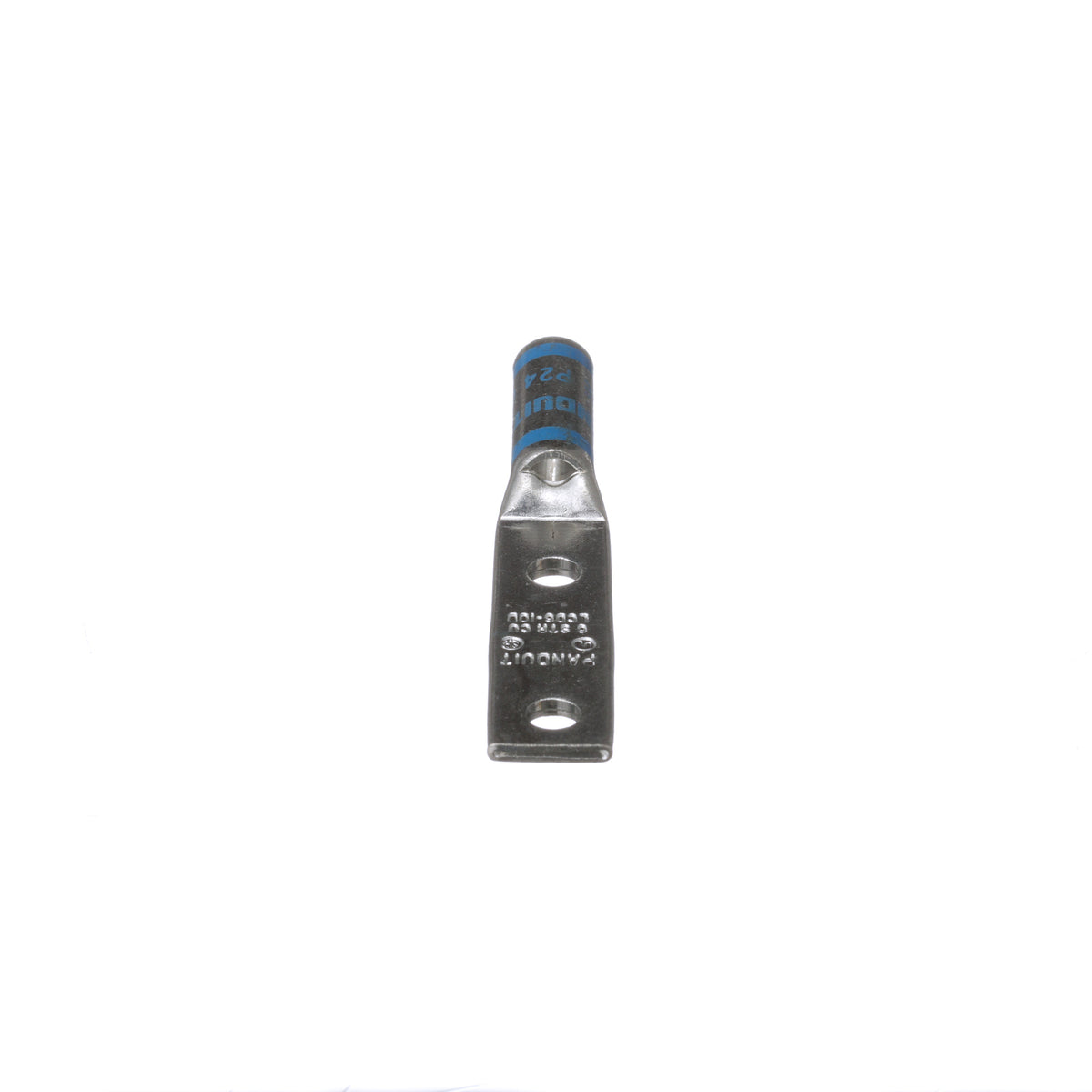

Panduit LCD6-10D-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343847
Regular price
$7.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD6-10D-L | Tin-Plated Copper Compression Connectors - Lug...
Regular price
$7.59
Unit price
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCD, Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, #10 Stud, Straight Tongue, 0.46 in W x 0.08 in THK Tongue, 2.52 in Overall Length, Standard With Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 0.81 in L Barrel, 7/8 in L Wire Strip, 1 in Hole Spacing, 90 deg C, 7/8 in Mounting Hole, Copper, Blue
Features + Benefits
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible copper conductors
Panduit LCD6-10D-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343847 Key Specs
| Copper Conductor Size (AWG) | #6 |
| Copper Conductor Size (kcmil) | 26.24 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 0.19 |
| Stud Hole Size (mm) | 4.8 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.46 |
| Tongue Width (mm) | 11.7 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 2.52 |
| Overall Length (mm) | 64 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
Panduit LCD6-10D-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343847 Data Sheets
| Selection Guides | Selection Guide - SA-PCCR02 Tool Chart Guide WEB 4-19-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - LCD10-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCD6-10D-L | Download and View |
Panduit LCD6-10D-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498343847 Environmental Information
| Panduit's RoHS Statement | Download and View |
