Brand: Panduit
|
SKU:
LCD6-14A-L

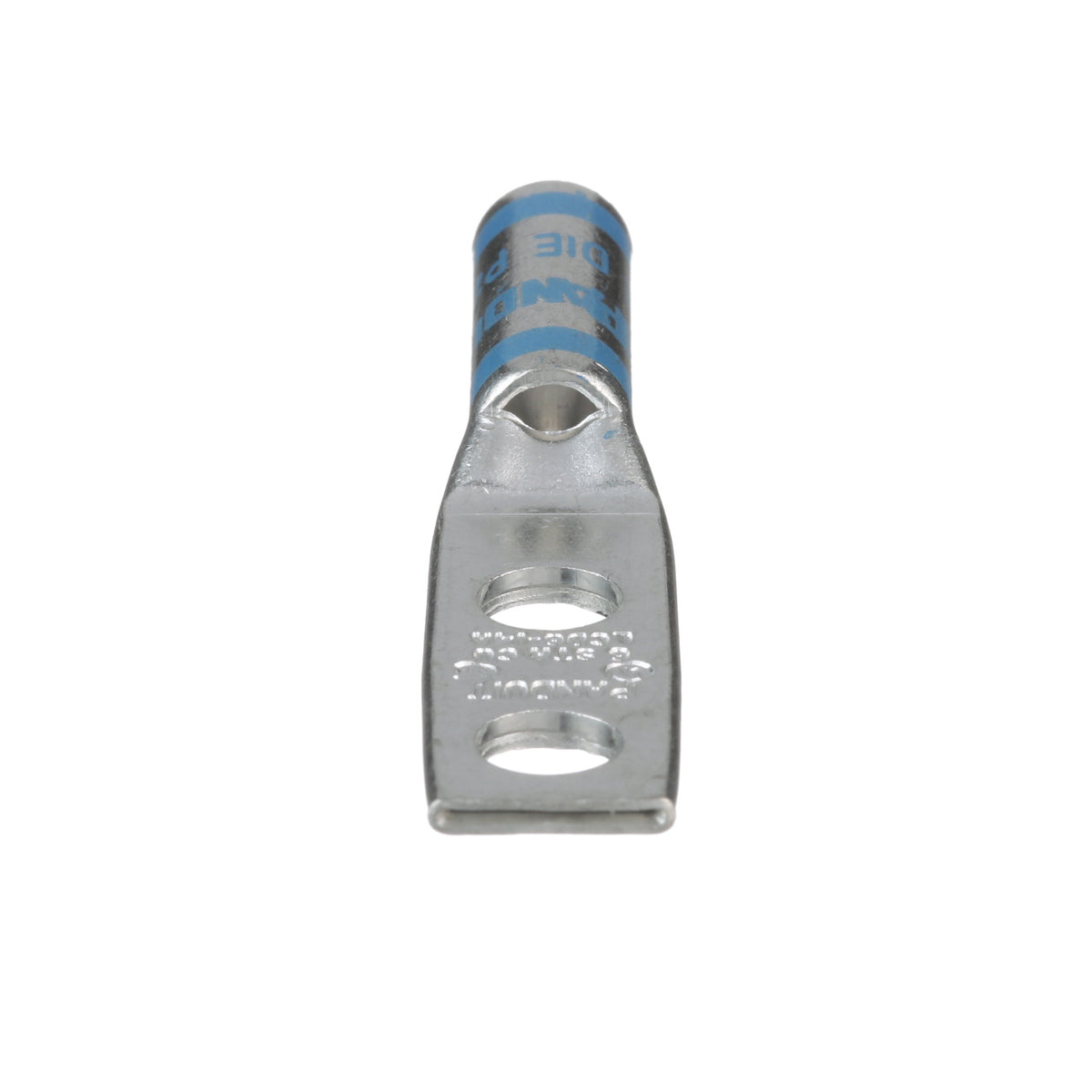

Panduit LCD6-14A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338310
Regular price
$6.76
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD6-14A-L | Tin-Plated Copper Compression Connectors - Lug...
Regular price
$6.76
Unit price
Description
Description
Panduit Compression Lug, 2-Hole, Series: LCD, Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, Standard/Straight Tongue, 0.48 in W x 0.08 in THK Tongue, 2.24 in Overall Length, Standard/Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 0.81 in L Barrel, 0.63 in Stud Hole Spacing, 7/8 in L Wire Strip, Tin Plated, 90 deg C, 7/8 in Mounting Hole, Copper, Blue
Features + Benefits
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCD6-14A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338310 Key Specs
| Inside Diameter (In.) | 0.22 |
| Inside Diameter (mm) | 5.58 |
| Outer Diameter (In.) | 0.31 |
| Outer Diameter (mm) | 7.87 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 6 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Angle | Straight |
Panduit LCD6-14A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338310 Data Sheets
| Selection Guides | Selection Guide - SA-PCCR02 Tool Chart Guide WEB 4-19-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - LCD10-10A-L Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCD6-14A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498338310 Environmental Information
| Panduit's RoHS Statement | Download and View |
