Brand: Panduit
|
SKU:
9880014

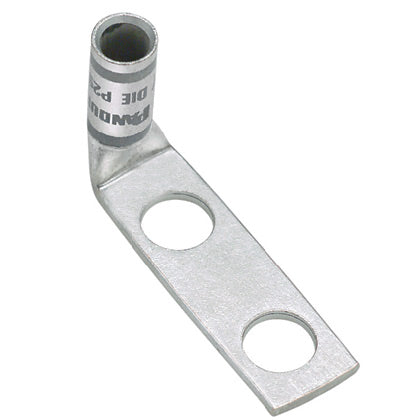

Panduit LCD6-14DF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356768
Regular price
$571.01
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD6-14DF-L | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$571.01
Unit price
Description
Description
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCD, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, 90 deg Tongue, 0.48 in W x 0.08 in THK Tongue, 2.03 in Overall Length, Standard Barrel, 0.81 in L Barrel, 90 deg C, 4.2954 in Mounting Hole, Tin Plated Copper, Blue
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- Color coded barrel
Panduit Panduit LCD6-14DF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356768 Key Specs
| Copper Conductor Size (AWG) | #6 |
| Copper Conductor Size (kcmil) | 26.24 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.81 |
| Barrel Length (mm) | 20.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 2.03 |
| Overall Length (mm) | 51.6 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
Panduit Panduit LCD6-14DF-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498356768 Environmental Information
| Panduit's RoHS Statement | Download and View |
