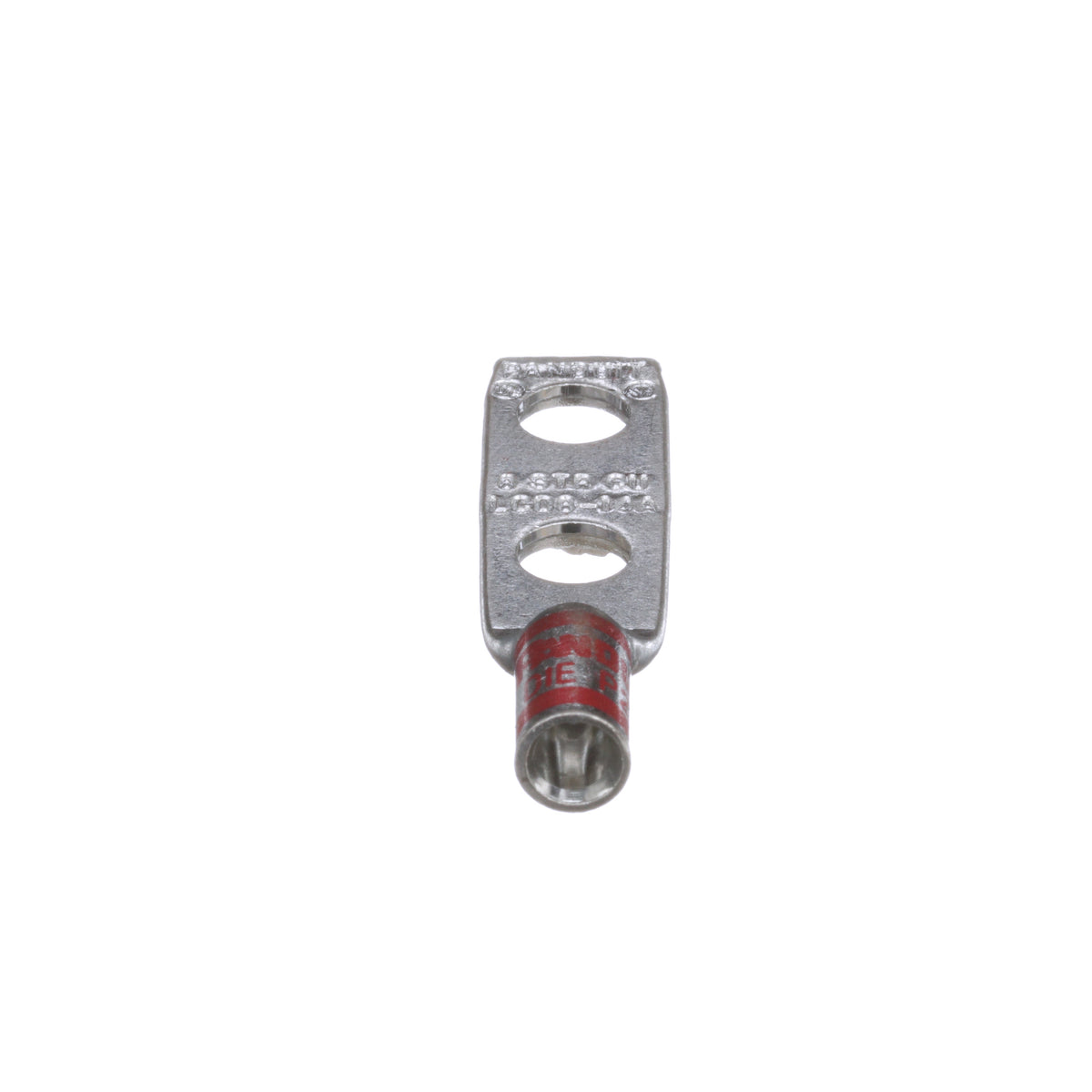

Panduit LCD8-14A-L | Pan-Lug Comp. Lug, Tin Plt Copper, Strt, Two 1/4" Stud, PK50
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCD8-14A-L | Pan-Lug Comp. Lug, Tin Plt Copper, Strt, Two 1...
Description
Description
Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Panduit Compression Lug, 2-Hole, Series: LCD, Stranded Copper Conductor, 8 AWG Conductor, Die Code: P21, 35 kV, 1/4 in Stud, Standard/Straight Tongue, 0.48 in W x 0.07 in THK Tongue, 1.97 in Overall Length, Standard/Inspection Window Barrel, 0.18 in ID x 0.27 in OD x 0.56 in L Barrel, 0.63 in Stud Hole Spacing, 5/8 in L Wire Strip, Tin Plated, 90 deg C, 5/8 in Mounting Hole, Copper, Red
Panduit - LCD8-14A-L - Features
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
Specifications
Specifications
Panduit - LCD8-14A-L - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCD8-14A-L |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Copper Code Conductor Size (AWG) | 8 |
| Barrel Length (In.) | 0.56 |
| Barrel Length (mm) | 14.2 |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Overall Length (In.) | 1.97 |
| UPC | 07498338316 |
Panduit - LCD8-14A-L - Videos
| Panduit LCD8-14A-L Video 1 | Click to View |
|---|---|
| Panduit LCD8-14A-L Video 2 | Click to View |
