Panduit LCDN2/0-14A-X | Pan-Lug Copper Compression Connectors - Lugs
Description
Description

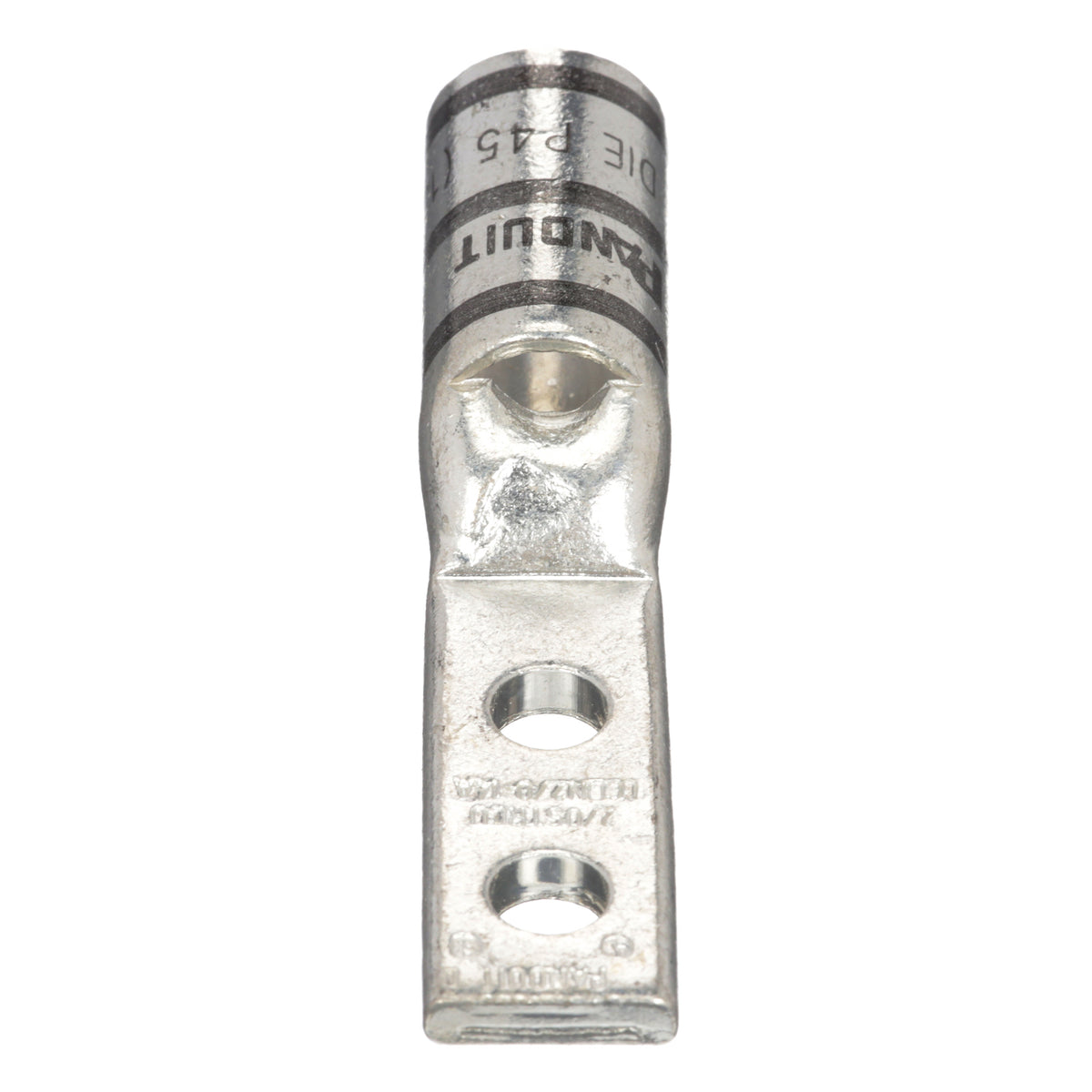

Two holes for added stability and a straight tongue for easy installation in electrical applications, our compression lug ensure reliable and secure electrical connections.
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDN, Copper Conductor, 2/0 AWG Conductor, Die Code: P45, 35 kV, 1/4 in Stud, Narrow Straight Tongue, 0.58 in W x 0.14 in THK Tongue, 2.71 in Overall Length, Standard With Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 0.98 in L Barrel, 1-1/16 in L Wire Strip, 5/8 in Stud Hole Spacing, 90 deg C, 1-1/16 in Mounting Hole, Tin Plated Copper, Black
Panduit - LCDN2/0-14A-X - Features
- Narrow tongue width for limited space applications
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with stranded copper conductors
Specifications
Specifications
Panduit - LCDN2/0-14A-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCDN2/0-14A-X |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Narrow |
| Tongue Angle | Straight |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Copper Code Conductor Size (AWG) | 2/0 |
| Barrel Length (In.) | 0.98 |
| Barrel Length (mm) | 24.9 |
| Tongue Width (In.) | 0.58 |
| Tongue Width (mm) | 14.8 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 2.71 |
| UPC | 07498344472 |
Panduit - LCDN2/0-14A-X - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
Panduit - LCDN2/0-14A-X - Videos
| Panduit LCDN2/0-14A-X Video 1 | Click to View |
|---|---|
| Panduit LCDN2/0-14A-X Video 2 | Click to View |
