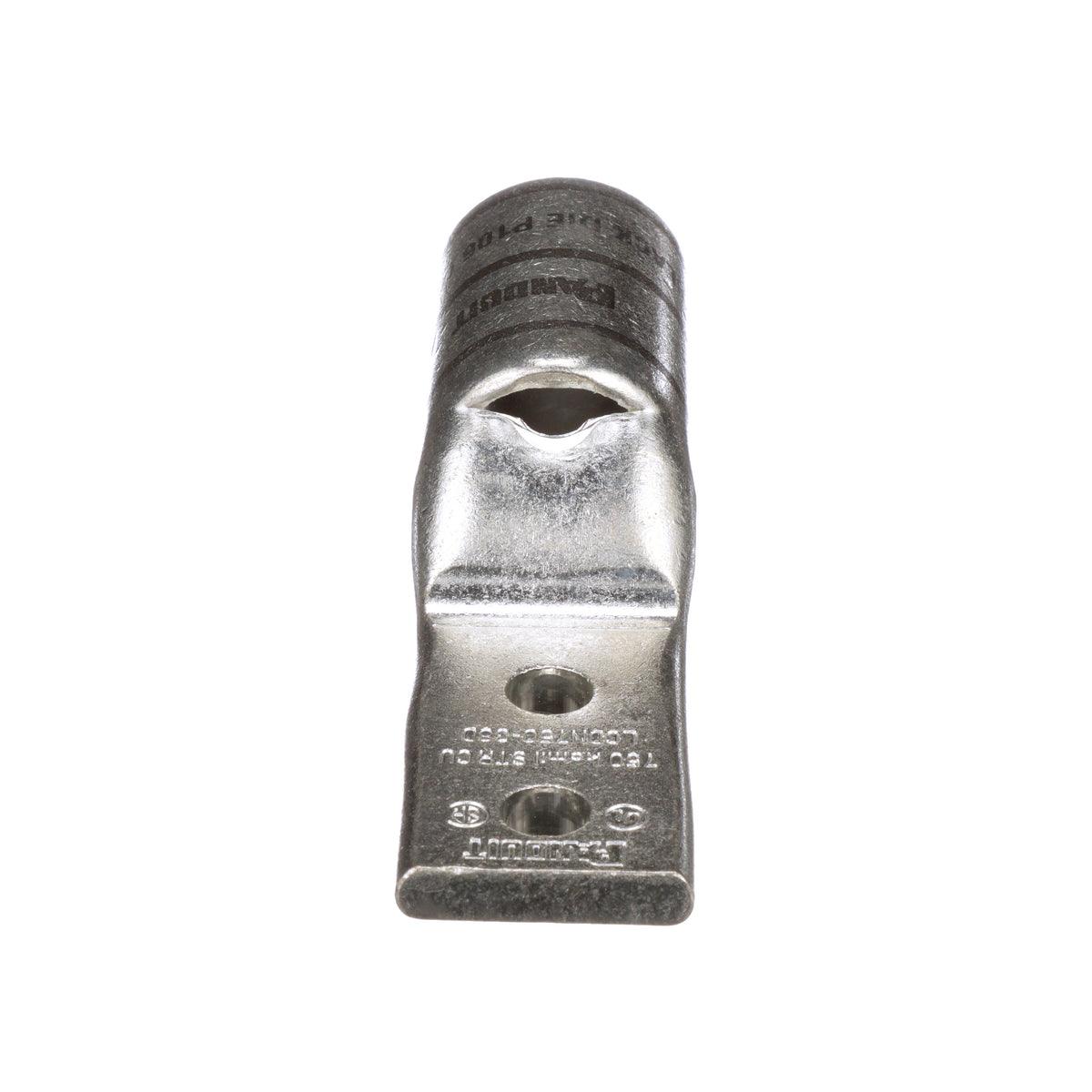

Panduit Compression Lug, 2-Hole, Series: LCDN, Stranded Copper Conductor, 750 kcmil Conductor, Die Code: P106, 35 kV, 3/8 in Stud, Narrow/Straight Tongue, 1.3 in W x 0.29 in THK Tongue, 4.72 in Overall Length, Standard/Inspection Window Barrel, 1.03 in ID x 1.3 in OD x 1.88 in L Barrel, 1 in Stud Hole Spacing, 1-15/16 in L Wire Strip, Tin Plated, 90 deg C, 1.94 in Mounting Hole, Copper, Black
Features + Benefits
- Narrow tongue width for limited space applications
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with stranded copper conductors
Panduit LCDN750-38D-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498344271 Key Specs
| Copper Conductor Size (kcmil) | 750 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.88 |
| Barrel Length (mm) | 47.8 |
| Tongue Type | Narrow |
| Tongue Width (In.) | 1.3 |
| Tongue Width (mm) | 33 |
| Tongue Thickness (In.) | 0.29 |
| Tongue Thickness (mm) | 6.6 |
| Overall Length (In.) | 4.72 |
| Overall Length (mm) | 119.9 |
| Color Code | Black |
| Panduit Die Index Number | P106 |
| Burndy Die Index Number | 24 |
Panduit LCDN750-38D-6 | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498344271 Data Sheets
| Selection Guides | Selection Guide - SA-PCCR02 Tool Chart Guide WEB 4-19-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - LCDN2-10B-Q Product Page | Download and View |
| Part Drawings | Two-Hole, Standard Barrel, Narrow Tongue: LCDN750-38D-6 | Download and View |
