Panduit LCDX1/0-38D-X | Compression Connectors - Lugs | UPC - 07498...
Regular price
$10.35
Unit price
Brand: Panduit
|
SKU:
LCDX1/0-38D-X
Regular price
$10.35
Unit price
Description
Description

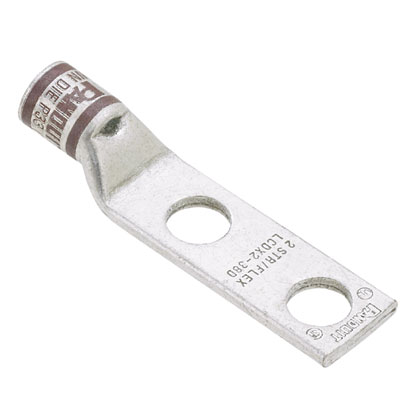

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDX, Copper Conductor, 1/0 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P42, 35 kV, 3/8 in Stud, Straight Tongue, 0.85 in W x 0.13 in THK Tongue, 2.89 in Overall Length, Standard with Inspection Window Barrel, 0.45 in ID x 0.58 in OD x 0.72 in L Barrel, 3/4 in L Wire Strip, Tin Plated, 90 deg C, 3/4 in Mounting Hole, Copper, Pink
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX1/0-38D-X | Compression Connectors - Lugs | UPC - 07498342379 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.72 |
| Barrel Length (mm) | 18.3 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.85 |
| Tongue Width (mm) | 21.6 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.89 |
| Overall Length (mm) | 73.4 |
| Color Code | Pink |
| Panduit Die Index Number | P42 |
| Burndy Die Index Number | 12 |
| Wire Strip Length (In.) | 42,828 |
Panduit LCDX1/0-38D-X | Compression Connectors - Lugs | UPC - 07498342379 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX1_0-38D-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDX1/0-38D-X | Compression Connectors - Lugs | UPC - 07498342379 Environmental Information
| Panduit's RoHS Statement | Download and View |
