Panduit LCDX1-14AF-X | Compression Connectors - Lugs | UPC - 074983...
Regular price
$11.62
Unit price
Brand: Panduit
|
SKU:
922876
Regular price
$11.62
Unit price
Description
Description

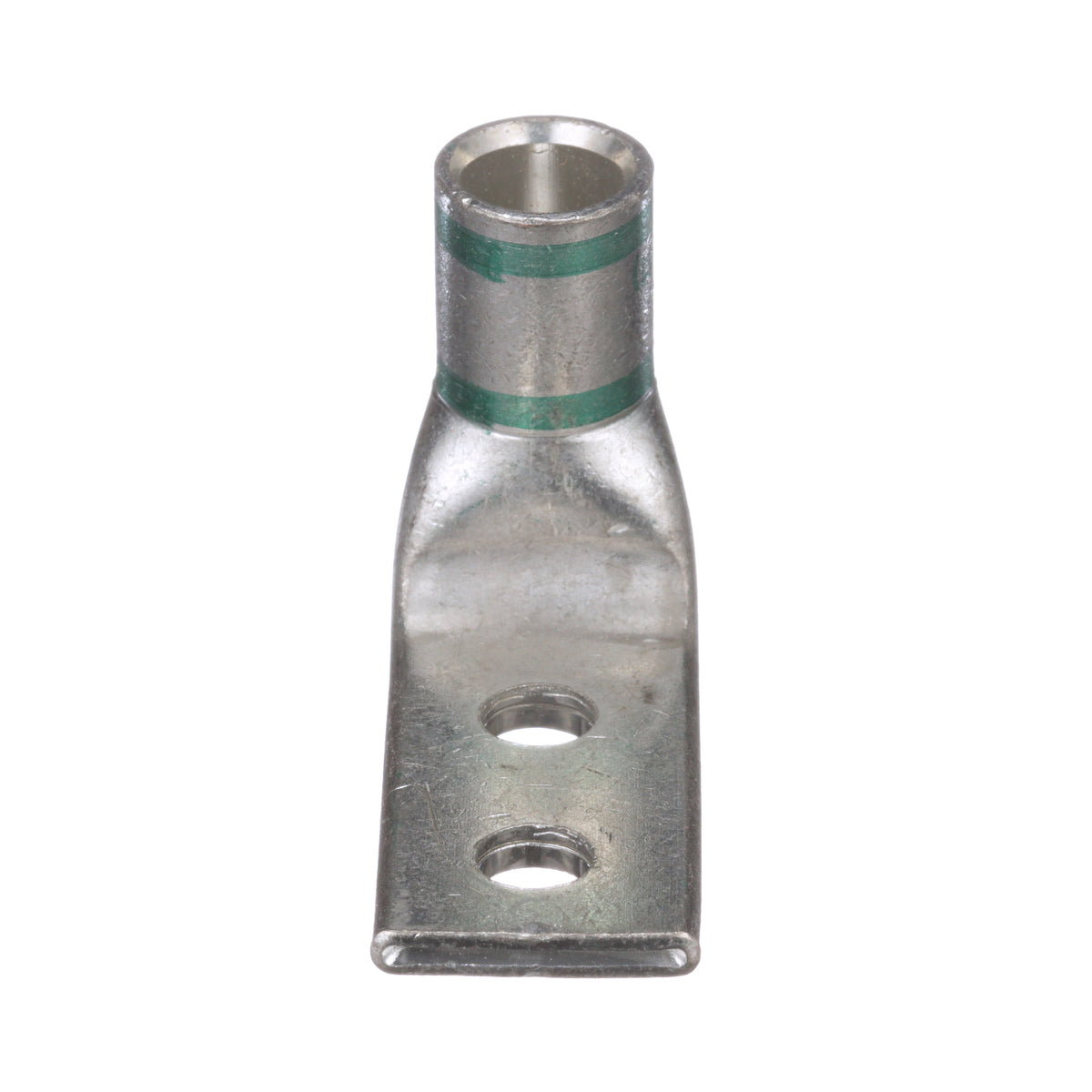

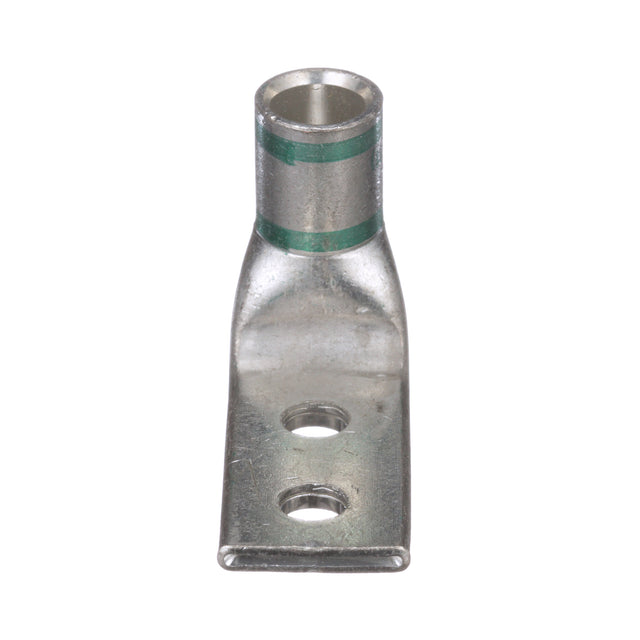

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCDX, 1 AWG Conductor, Die Code: P37, 35 kV, 1/4 in Stud, 90 deg Tongue, 0.76 in W x 0.12 in THK Tongue, 2.08 in Overall Length, Standard Barrel, 0.66 in L Barrel, 90 deg C, 4.2828 in Mounting Hole, Tin Plated Copper, Green
Features + Benefits
Panduit LCDX1-14AF-X Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.66 |
| Barrel Length (mm) | 16.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 2.08 |
| Overall Length (mm) | 52.8 |
| Color Code | Green |
| Panduit Die Index Number | P37 |
| Burndy Die Index Number | 11 |
| Wire Strip Length (In.) | 42,828 |
Panduit LCDX1-14AF-X Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCC8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCC8-38D-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
