Panduit LCDX1-38D-X | Compression Connectors - Lugs | UPC - 0749834...
Regular price
$13.19
Unit price
Brand: Panduit
|
SKU:
LCDX1-38D-X
Regular price
$13.19
Unit price
Description
Description

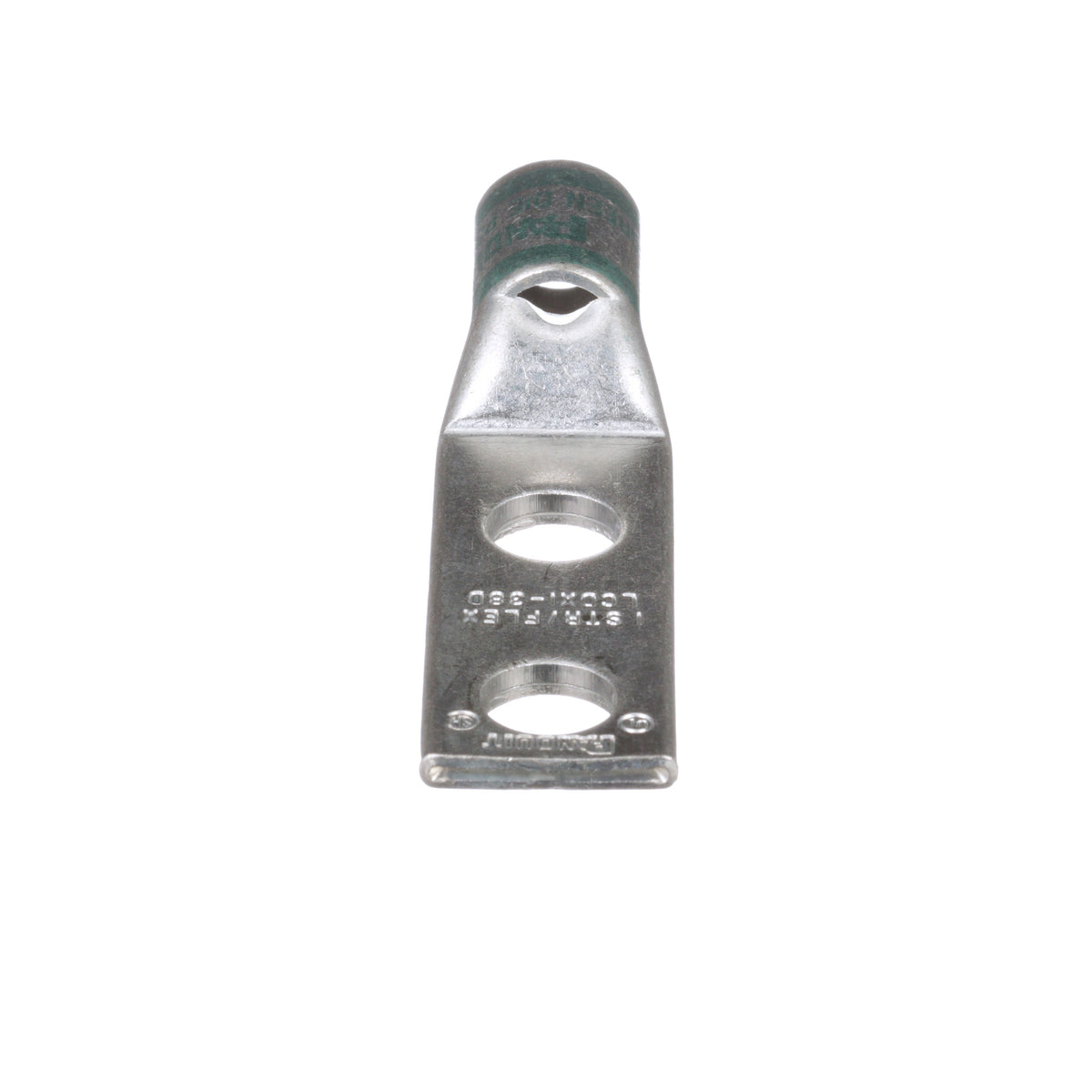

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDX, Copper Conductor, 1 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P37, 35 kV, 3/8 in Stud, Straight Tongue, 3/4 in W x 3/32 in THK Tongue, 2.8 in Overall Length, Standard With Inspection Window Barrel, 0.39 in ID x 0.52 in OD x 0.66 in L Barrel, 3/4 in L Wire Strip, 90 deg C, 3/4 in Mounting Hole, Tin Plated Copper, Green
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX1-38D-X | Compression Connectors - Lugs | UPC - 07498342375 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.66 |
| Barrel Length (mm) | 16.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.76 |
| Tongue Width (mm) | 19.3 |
| Tongue Thickness (In.) | 0.12 |
| Tongue Thickness (mm) | 3 |
| Overall Length (In.) | 2.8 |
| Overall Length (mm) | 71.1 |
| Color Code | Green |
| Panduit Die Index Number | P37 |
| Burndy Die Index Number | 11 |
| Wire Strip Length (In.) | 42,828 |
Panduit LCDX1-38D-X | Compression Connectors - Lugs | UPC - 07498342375 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX1-38D-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDX1-38D-X | Compression Connectors - Lugs | UPC - 07498342375 Environmental Information
| Panduit's RoHS Statement | Download and View |
