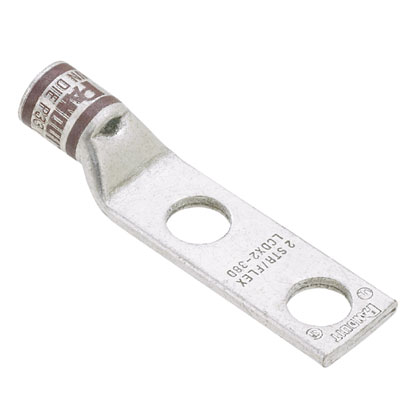

Panduit LCDX2/0-12-X | Compression Connectors - Lugs | UPC - 074983...
Regular price
$12.16
Unit price
Brand: Panduit
|
SKU:
LCDX2/0-12-X
Regular price
$12.16
Unit price
Description
Description
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCDX, 2/0 AWG Conductor, Die Code: P45, 35 kV, 1/2 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 4.19 in Overall Length, Standard Barrel, 0.83 in L Barrel, 90 deg C, 4.2954 in Mounting Hole, Tin Plated Copper, Black
Features + Benefits
Panduit LCDX2/0-12-X | Compression Connectors - Lugs | UPC - 07498342383 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.83 |
| Barrel Length (mm) | 21.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 4.19 |
| Overall Length (mm) | 106.4 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
| Burndy Die Index Number | 13 |
| Wire Strip Length (In.) | 42,954 |
Panduit LCDX2/0-12-X | Compression Connectors - Lugs | UPC - 07498342383 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX2_0-12-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDX2/0-12-X | Compression Connectors - Lugs | UPC - 07498342383 Environmental Information
| Panduit's RoHS Statement | Download and View |
