Panduit LCDX2/0-14A-X | Compression Connectors - Lugs | UPC - 07498...
Regular price
$13.05
Unit price
Brand: Panduit
|
SKU:
LCDX2/0-14A-X
Regular price
$13.05
Unit price
Description
Description

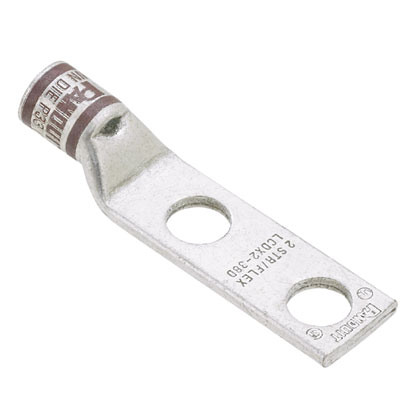

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDX, Copper Conductor, 2/0 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P45, 35 kV, 1/4 in Stud, Straight Tongue, 0.96 in W x 0.13 in THK Tongue, 2.59 in Overall Length, Standard With Inspection Window Barrel, 0.51 in ID x 0.64 in OD x 0.83 in L Barrel, 22 mm L Wire Strip, 90 deg C, 7/8 in Mounting Hole, Tin Plated Copper, Black
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX2/0-14A-X | Compression Connectors - Lugs | UPC - 07498342381 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.83 |
| Barrel Length (mm) | 21.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.96 |
| Tongue Width (mm) | 24.4 |
| Tongue Thickness (In.) | 0.13 |
| Tongue Thickness (mm) | 3.3 |
| Overall Length (In.) | 2.59 |
| Overall Length (mm) | 65.8 |
| Color Code | Black |
| Panduit Die Index Number | P45 |
| Burndy Die Index Number | 13 |
| Wire Strip Length (In.) | 42,954 |
