Panduit LCDX2/0-14AH-X | CuLugF, 2Hole, 2/0AWG, 1/4, .63, 45°PKG10
Description
Description

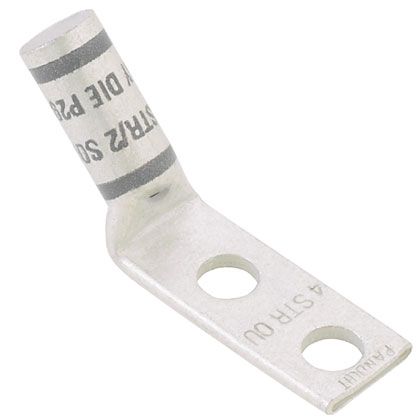

Enhance stability in your demanding applications with our 45° angle tongue compression lug. The 2-hole tongue compression lug connects large wires with two mounting points for added reliability.
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCDX, 2/0 AWG Conductor, Die Code: P45, 35 kV, 1/4 in Stud, 45 deg Tongue, 0.96 in W x 0.13 in THK Tongue, 2.3 in Overall Length, Standard Barrel, 0.83 in L Barrel, 90 deg C, 4.2954 in Mounting Hole, Tin Plated Copper, Black
Specifications
Specifications
Panduit - LCDX2/0-14AH-X - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCDX2/0-14AH-X |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Standard |
| Tongue Angle | 45° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Copper Code Conductor Size (AWG) | 2/0 |
| Class G Copper Flex Conductor Size (AWG) | 2/0 |
| Class H Copper Flex Conductor Size (AWG) | 2/0 |
| Class I Copper Flex Conductor Size (AWG) | 2/0 |
| Class K Copper Flex Conductor Size (AWG) | 2/0 |
| Class M Copper Flex Conductor Size (AWG) | 2/0 |
| DLO Copper Flex Conductor Size (AWG) | 2/0 |
| Barrel Length (In.) | 0.83 |
| UPC | 07498342766 |
Panduit - LCDX2/0-14AH-X - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
