Brand: Panduit
|
SKU:
LCDX2-14A-E
Panduit LCDX2-14A-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342684
Regular price
$10.35
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCDX2-14A-E | Tin-Plated Copper Compression Connectors - Lu...
Regular price
$10.35
Unit price
Description
Description

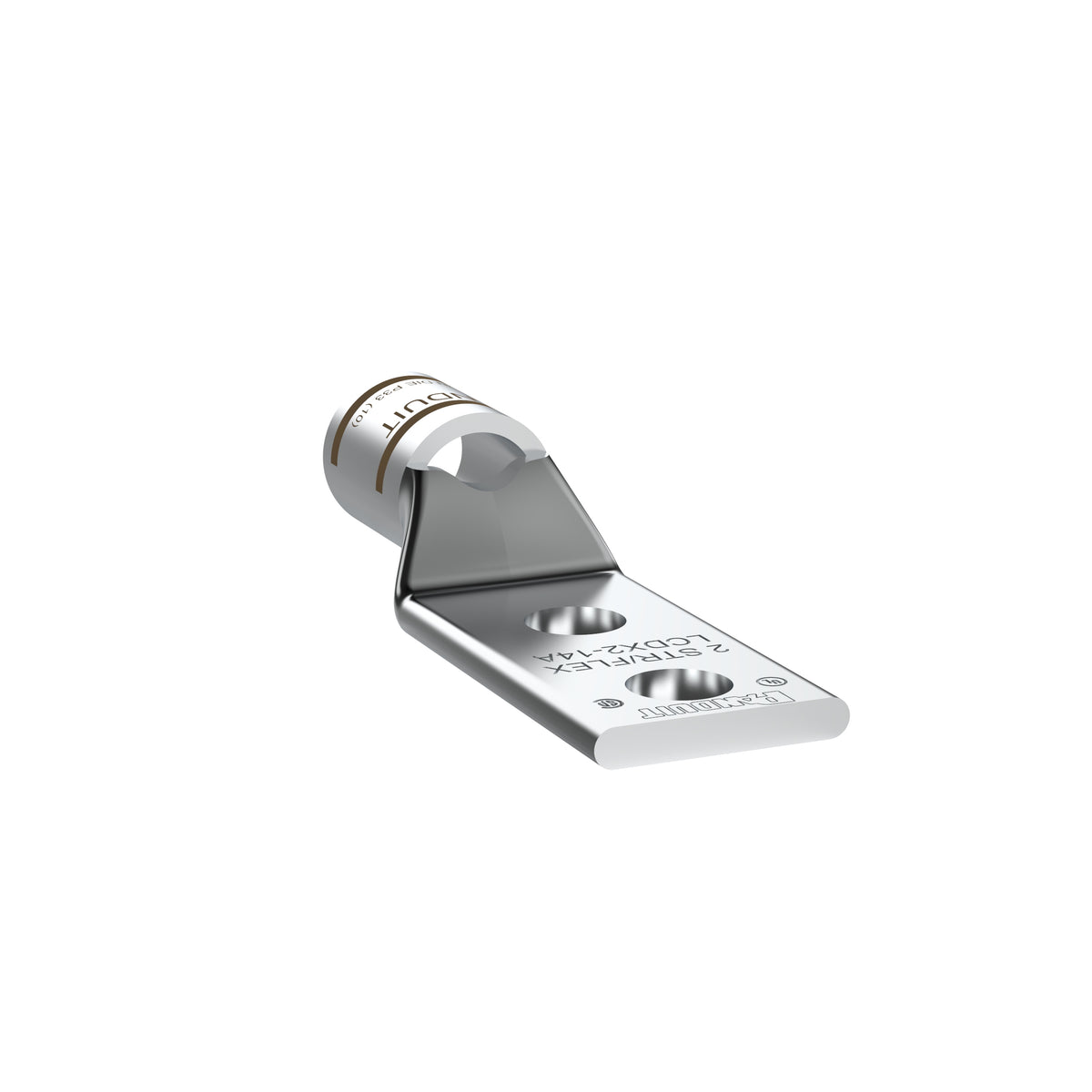

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDX, Copper Conductor, 2 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P33, 35 kV, 1/4 in Stud, Straight Tongue, 0.7 in W x 0.11 in THK Tongue, 2.13 in Overall Length, Standard With Inspection Window Barrel, 0.36 in ID x 0.47 in OD x 0.59 in L Barrel, 17 mm L Wire Strip, 90 deg C, 11/16 in Mounting Hole, Tin Plated Copper, Brown
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX2-14A-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342684 Key Specs
| Inside Diameter (In.) | 0.36 |
| Inside Diameter (mm) | 9.14 |
| Outer Diameter (In.) | 0.47 |
| Outer Diameter (mm) | 11.93 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Class G Copper Flex Conductor Size (AWG) | 2 |
| Class H Copper Flex Conductor Size (AWG) | 2 |
| Class I Copper Flex Conductor Size (AWG) | 2 |
| Class K Copper Flex Conductor Size (AWG) | 2 |
| Class M Copper Flex Conductor Size (AWG) | 2 |
| Copper Code Conductor Size (AWG) | 2 |
| DLO Copper Flex Conductor Size (AWG) | 2 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel with Inspection Window |
Panduit LCDX2-14A-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342684 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX2-14A-E | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDX2-14A-E | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342684 Environmental Information
| Panduit's RoHS Statement | Download and View |
