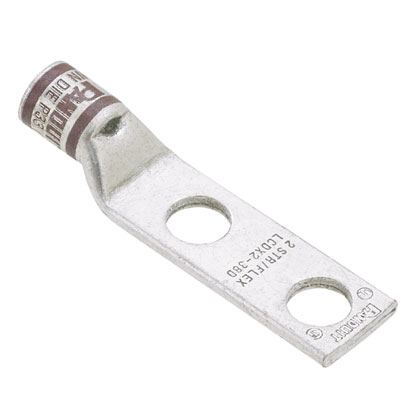

Panduit Compression Lug Connector, 2-Hole, Series: LCDX, Extra-Flexible/Flexible/Stranded Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 1/4 in Stud, Standard/Straight Tongue, 0.7 in W x 0.11 in THK Tongue, 2-1/4 in Overall Length, Standard/Inspection Window Barrel, 0.36 in ID x 0.47 in OD x 0.59 in L Barrel, 17 mm L Wire Strip, 3/4 in Stud Hole Spacing, Tin Plated, 90 deg C, 42-5/8 in Mounting Hole, Copper, Brown
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX2-14B-E | Compression Connectors - Lugs | UPC - 07498342687 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.59 |
| Barrel Length (mm) | 15 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.7 |
| Tongue Width (mm) | 17.8 |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Overall Length (In.) | 2.25 |
| Overall Length (mm) | 57.2 |
| Color Code | Brown |
| Panduit Die Index Number | P33 |
| Burndy Die Index Number | 10 |
| Wire Strip Length (In.) | 42,675 |
