Panduit LCDX250-12-X | Compression Connectors - Lugs | UPC - 074983...
Regular price
$25.06
Unit price
Brand: Panduit
|
SKU:
LCDX250-12-X
Regular price
$25.06
Unit price
Description
Description

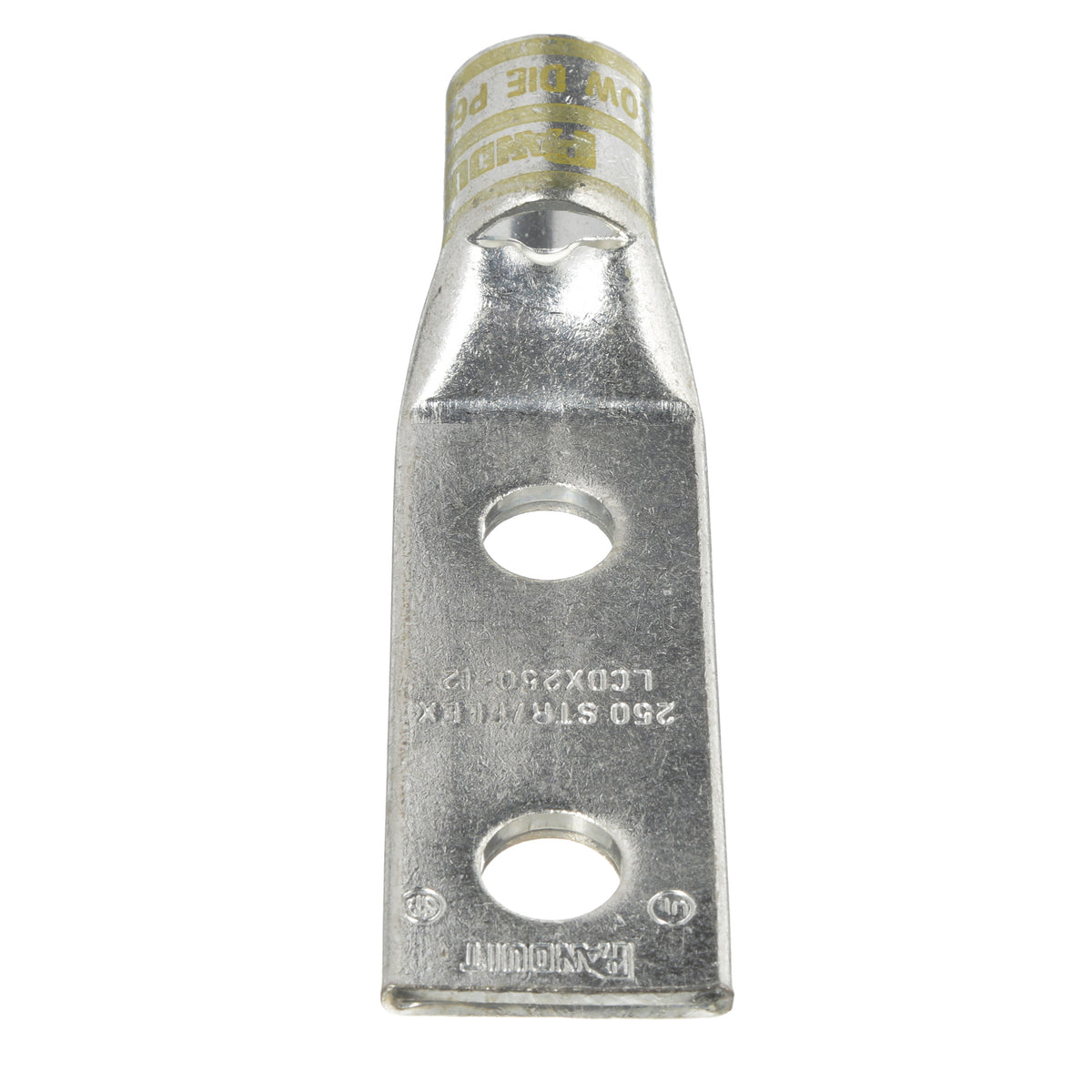

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDX, Copper Conductor, 250 kcmil Class G, H, I, K, M, 262.6 kcmil DLO Conductor, Die Code: P62, 35 kV, 1/2 in Stud, Straight Tongue, 1.28 in W x 0.17 in THK Tongue, 4.56 in Overall Length, Standard With Inspection Window Barrel, 0.7 in ID x 0.7 in OD x 1.03 in L Barrel, 2.9375 in L Wire Strip, 90 deg C, 1-1/16 in Mounting Hole, Tin Plated Copper, Yellow
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX250-12-X | Compression Connectors - Lugs | UPC - 07498342399 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.03 |
| Barrel Length (mm) | 26.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.28 |
| Tongue Width (mm) | 32.5 |
| Tongue Thickness (In.) | 0.17 |
| Tongue Thickness (mm) | 4.3 |
| Overall Length (In.) | 4.56 |
| Overall Length (mm) | 115.8 |
| Color Code | Yellow |
| Panduit Die Index Number | P62 |
| Burndy Die Index Number | 16 |
| Wire Strip Length (In.) | 1.06 |
Panduit LCDX250-12-X | Compression Connectors - Lugs | UPC - 07498342399 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX250-12-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDX250-12-X | Compression Connectors - Lugs | UPC - 07498342399 Environmental Information
| Panduit's RoHS Statement | Download and View |
