Panduit LCDX3/0-14A-X | Compression Connectors - Lugs | UPC - 07498...
Regular price
$12.43
Unit price
Brand: Panduit
|
SKU:
LCDX3/0-14A-X
Regular price
$12.43
Unit price
Description
Description

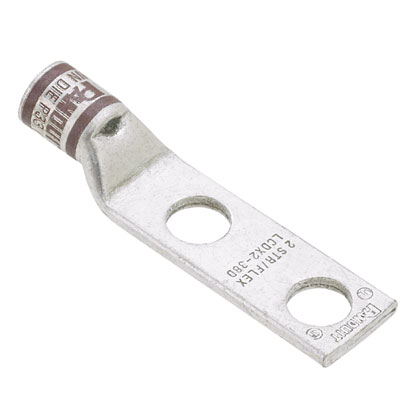

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDX, Copper Conductor, 3/0 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P50, 35 kV, 1/4 in Stud, Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 2.71 in Overall Length, Standard with Inspection Window Barrel, 0.57 in ID x 0.71 in OD x 0.91 in L Barrel, 1 in L Wire Strip, Tin Plated, 90 deg C, 1 in Mounting Hole, Copper, Orange
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX3/0-14A-X | Compression Connectors - Lugs | UPC - 07498342384 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.91 |
| Barrel Length (mm) | 23.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 26.9 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 2.71 |
| Overall Length (mm) | 68.8 |
| Color Code | Orange |
| Panduit Die Index Number | P50 |
| Burndy Die Index Number | 14 |
| Wire Strip Length (In.) | 1 |
Panduit LCDX3/0-14A-X | Compression Connectors - Lugs | UPC - 07498342384 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX3_0-14A-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDX3/0-14A-X | Compression Connectors - Lugs | UPC - 07498342384 Environmental Information
| Panduit's RoHS Statement | Download and View |
