Brand: Panduit
|
SKU:
LCDX3/0-56D-X

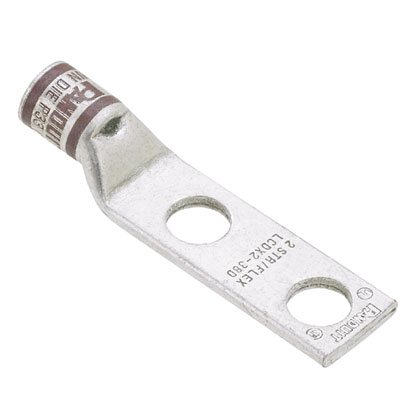

Panduit LCDX3/0-56D-X | Compression Connectors - Lugs | UPC - 07498342790
Regular price
$12.43
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCDX3/0-56D-X | Compression Connectors - Lugs | UPC - 07498...
Regular price
$12.43
Unit price
Brand: Panduit
|
SKU:
LCDX3/0-56D-X
Regular price
$12.43
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCDX, 3/0 AWG Conductor, Die Code: P50, 35 kV, 5/16 in Stud, Straight Tongue, 1.06 in W x 0.14 in THK Tongue, 3.1 in Overall Length, Standard Barrel, 0.91 in L Barrel, 90 deg C, 1 in Mounting Hole, Tin Plated Copper, Orange
Features + Benefits
Panduit LCDX3/0-56D-X | Compression Connectors - Lugs | UPC - 07498342790 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.91 |
| Barrel Length (mm) | 23.1 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.06 |
| Tongue Width (mm) | 26.9 |
| Tongue Thickness (In.) | 0.14 |
| Tongue Thickness (mm) | 3.6 |
| Overall Length (In.) | 3.1 |
| Overall Length (mm) | 78.7 |
| Color Code | Orange |
| Panduit Die Index Number | P50 |
| Burndy Die Index Number | 14 |
| Wire Strip Length (In.) | 1 |
Panduit LCDX3/0-56D-X | Compression Connectors - Lugs | UPC - 07498342790 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX3_0-56D-X | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDX3/0-56D-X | Compression Connectors - Lugs | UPC - 07498342790 Environmental Information
| Panduit's RoHS Statement | Download and View |
