Brand: Panduit
|
SKU:
LCDX300-38D-6
Panduit LCDX300-38D-6 | Compression Connectors - Lugs | UPC - 07498343643
Regular price
$19.65
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCDX300-38D-6 | Compression Connectors - Lugs | UPC - 07498...
Regular price
$19.65
Unit price
Brand: Panduit
|
SKU:
LCDX300-38D-6
Regular price
$19.65
Unit price
Shipping calculated at checkout.
Description
Description

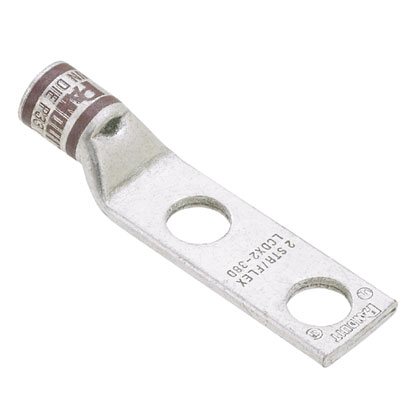

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCDX, 300 kcmil, 313.1 kcmil Conductor, Die Code: P71, 35 kV, 3/8 in Stud, Straight Tongue, 1.39 in W x 0.18 in THK Tongue, 3.56 in Overall Length, Standard Barrel, 1.19 in L Barrel, 90 deg C, 1-1/4 in Mounting Hole, Tin Plated Copper, Red
Features + Benefits
Panduit LCDX300-38D-6 | Compression Connectors - Lugs | UPC - 07498343643 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.19 |
| Barrel Length (mm) | 30.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.39 |
| Tongue Width (mm) | 35.3 |
| Tongue Thickness (In.) | 0.18 |
| Tongue Thickness (mm) | 4.6 |
| Overall Length (In.) | 3.56 |
| Overall Length (mm) | 90.4 |
| Color Code | Red |
| Panduit Die Index Number | P71 |
| Burndy Die Index Number | 18 |
| Wire Strip Length (In.) | 1.25 |
Panduit LCDX300-38D-6 | Compression Connectors - Lugs | UPC - 07498343643 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX300-38D-6 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDX300-38D-6 | Compression Connectors - Lugs | UPC - 07498343643 Environmental Information
| Panduit's RoHS Statement | Download and View |
