Panduit LCDX350-12E-6 | Compression Connectors - Lugs | UPC - 07498...
Regular price
$31.34
Unit price
Brand: Panduit
|
SKU:
LCDX350-12E-6
Regular price
$31.34
Unit price
Description
Description

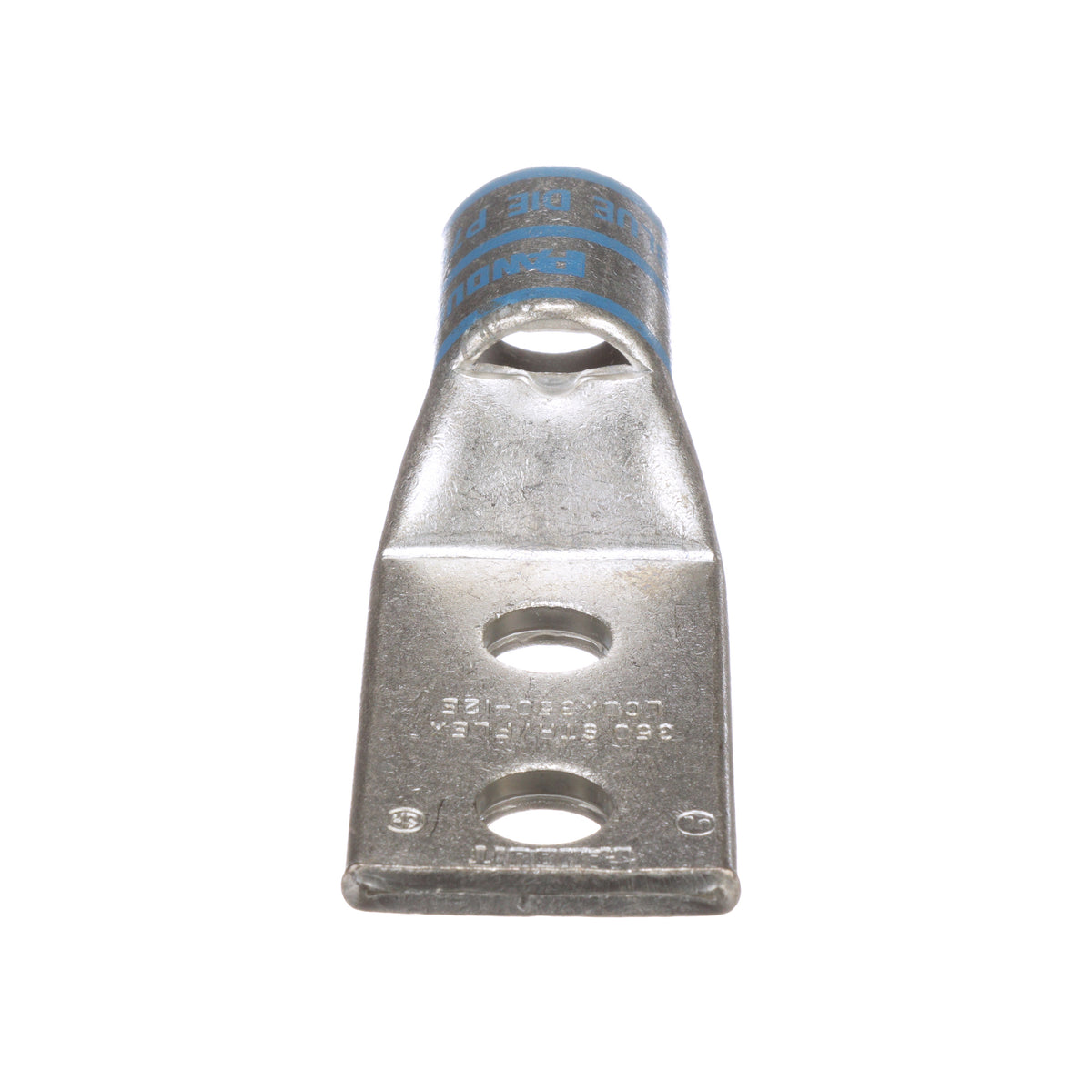

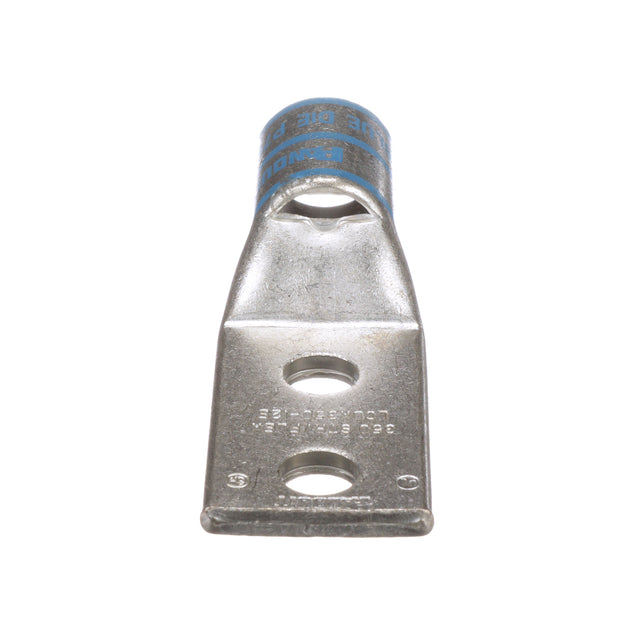

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCDX, 350 kcmil, 373.7 kcmil Conductor, Die Code: P76, 35 kV, 1/2 in Stud, Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 4.29 in Overall Length, Standard Barrel, 1.29 in L Barrel, 90 deg C, 1.38 in Mounting Hole, Tin Plated Copper, Blue
Features + Benefits
Panduit LCDX350-12E-6 | Compression Connectors - Lugs | UPC - 07498342410 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.25 |
| Stud Hole Spacing (mm) | 31.8 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.29 |
| Barrel Length (mm) | 32.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Tongue Thickness (In.) | 0.22 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 4.29 |
| Overall Length (mm) | 109 |
| Color Code | Blue |
| Panduit Die Index Number | P76 |
| Burndy Die Index Number | 19 |
| Wire Strip Length (In.) | 1.38 |
Panduit LCDX350-12E-6 | Compression Connectors - Lugs | UPC - 07498342410 Data Sheets
| Selection Guides | Selection Guide - SA-PCCR02 Tool Chart Guide WEB 4-19-10 | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX350-12E-6 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDX350-12E-6 | Compression Connectors - Lugs | UPC - 07498342410 Environmental Information
| Panduit's RoHS Statement | Download and View |
