Brand: Panduit
|
SKU:
LCDX350-38D-6

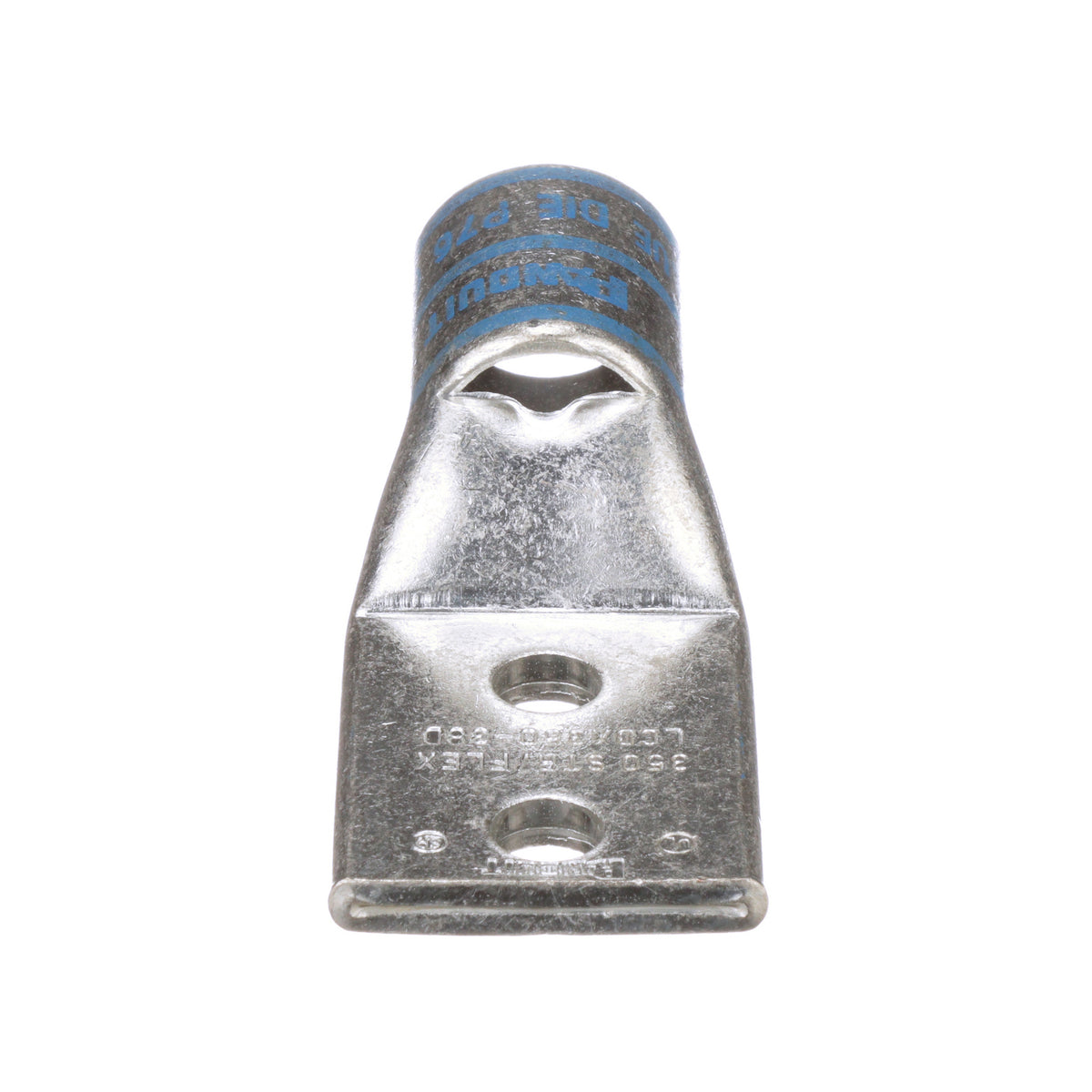

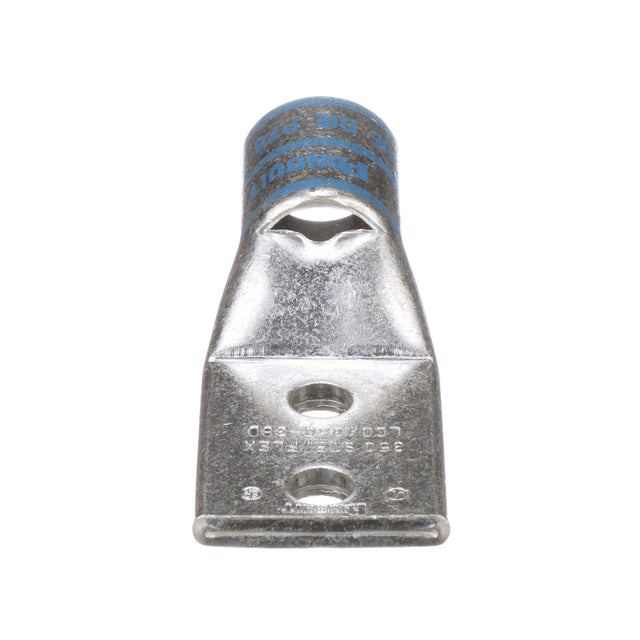

Panduit LCDX350-38D-6 | Compression Connectors - Lugs | UPC - 07498342407
Regular price
$27.41
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCDX350-38D-6 | Compression Connectors - Lugs | UPC - 07498...
Regular price
$27.41
Unit price
Brand: Panduit
|
SKU:
LCDX350-38D-6
Regular price
$27.41
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDX, Copper Conductor, 350 kcmil Class G, H, I, K, M, 373.7 kcmil DLO Conductor, Die Code: P76, 35 kV, 3/8 in Stud, Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 3.74 in Overall Length, Standard with Inspection Window Barrel, 0.84 in ID x 1.06 in OD x 1.29 in L Barrel, 1.38 in L Wire Strip, Tin Plated, 90 deg C, 1-3/8 in Mounting Hole, Copper, Blue
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX350-38D-6 | Compression Connectors - Lugs | UPC - 07498342407 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.29 |
| Barrel Length (mm) | 32.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Tongue Thickness (In.) | 0.22 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 3.74 |
| Overall Length (mm) | 95 |
| Color Code | Blue |
| Panduit Die Index Number | P76 |
| Burndy Die Index Number | 19 |
| Wire Strip Length (In.) | 1.38 |
Panduit LCDX350-38D-6 | Compression Connectors - Lugs | UPC - 07498342407 Data Sheets
| Selection Guides | Selection Guide - SA-PCCR02 Tool Chart Guide WEB 4-19-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX350-38D-6 | Download and View |
Panduit LCDX350-38D-6 | Compression Connectors - Lugs | UPC - 07498342407 Environmental Information
| Panduit's RoHS Statement | Download and View |
