Brand: Panduit
|
SKU:
LCDX350-56D-6
Panduit LCDX350-56D-6 | Compression Connectors - Lugs | UPC - 07498345358
Regular price
$25.24
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCDX350-56D-6 | Compression Connectors - Lugs | UPC - 07498...
Regular price
$25.24
Unit price
Brand: Panduit
|
SKU:
LCDX350-56D-6
Regular price
$25.24
Unit price
Shipping calculated at checkout.
Description
Description

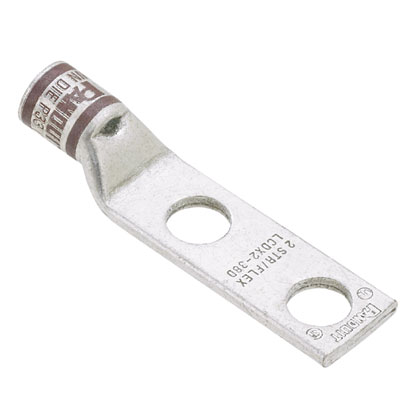

Panduit Compression Lug Connector, 2-Hole, Series: LCDX, Extra-Flexible/Flexible Copper Conductor, 350 kcmil, 373.7 kcmil Conductor, Die Code: P76, 35 kV, 5/16 in Stud, Straight Tongue, 1.54 in W x 0.22 in THK Tongue, 3.71 in Overall Length, Standard Barrel, 1.29 in L Barrel, Specifications: 1 in Stud Hole Spacing, Tin Plated, 90 deg C, 1.38 in Mounting Hole, Copper, Blue
Features + Benefits
Panduit LCDX350-56D-6 | Compression Connectors - Lugs | UPC - 07498345358 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.29 |
| Barrel Length (mm) | 32.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.54 |
| Tongue Width (mm) | 39.1 |
| Tongue Thickness (In.) | 0.22 |
| Tongue Thickness (mm) | 5.6 |
| Overall Length (In.) | 3.71 |
| Overall Length (mm) | 94.2 |
| Color Code | Blue |
| Panduit Die Index Number | P76 |
| Burndy Die Index Number | 19 |
| Wire Strip Length (In.) | 1.38 |
Panduit LCDX350-56D-6 | Compression Connectors - Lugs | UPC - 07498345358 Data Sheets
| Selection Guides | Selection Guide - SA-PCCR02 Tool Chart Guide WEB 4-19-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX350-56D-6 | Download and View |
Panduit LCDX350-56D-6 | Compression Connectors - Lugs | UPC - 07498345358 Environmental Information
| Panduit's RoHS Statement | Download and View |
