Brand: Panduit
|
SKU:
LCDX4/0-38D-X

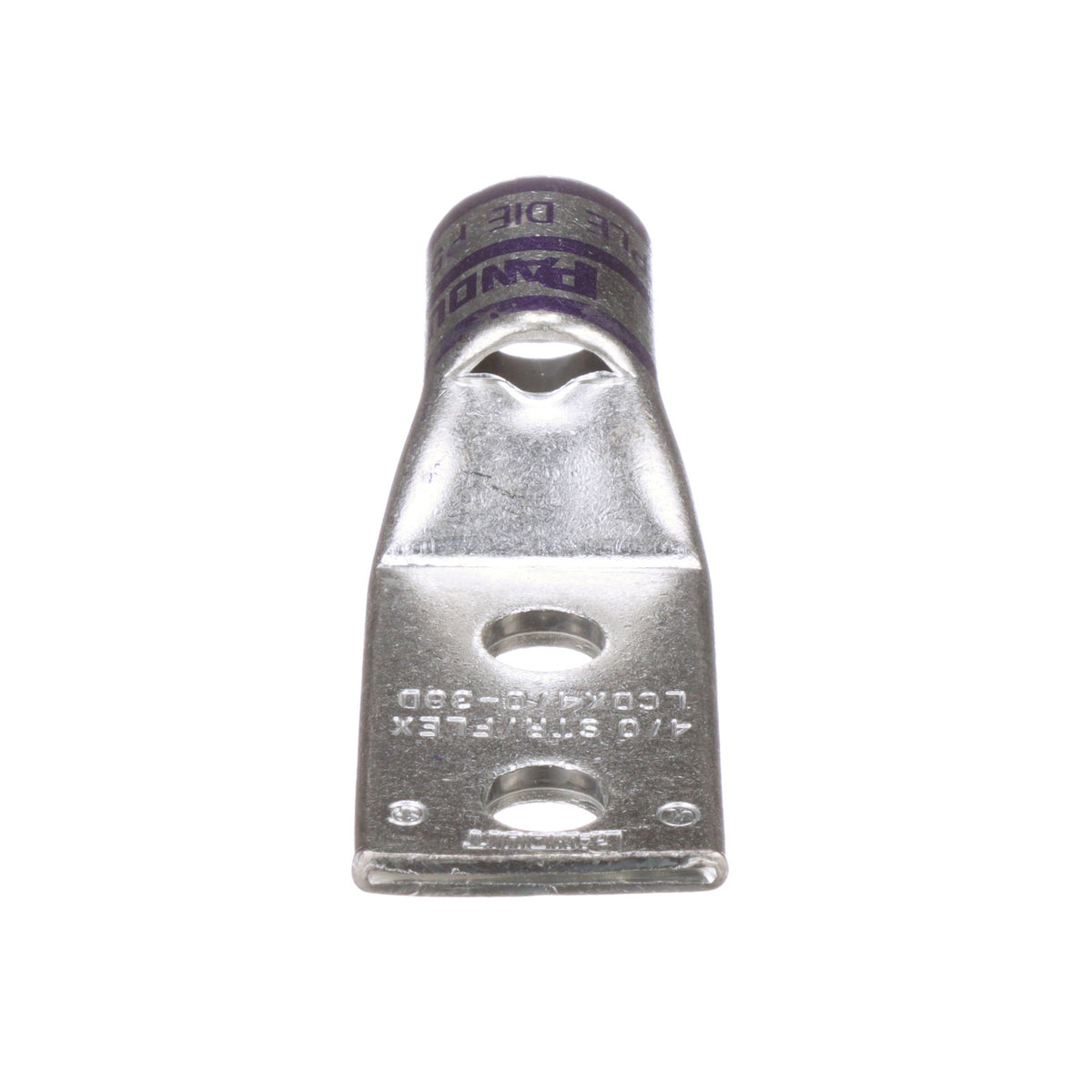

Panduit LCDX4/0-38D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342388
Regular price
$13.19
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCDX4/0-38D-X | Tin-Plated Copper Compression Connectors - ...
Regular price
$13.19
Unit price
Brand: Panduit
|
SKU:
LCDX4/0-38D-X
Regular price
$13.19
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDX, Copper Conductor, 4/0 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P54, 35 kV, 3/8 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 3.34 in Overall Length, Standard With Inspection Window Barrel, 0.65 in ID x 0.81 in OD x 1.03 in L Barrel, 2.9375 in L Wire Strip, 90 deg C, 1-1/16 in Mounting Hole, Tin Plated Copper, Purple
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX4/0-38D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342388 Key Specs
| Inside Diameter (In.) | 0.65 |
| Inside Diameter (mm) | 16.51 |
| Outer Diameter (In.) | 0.81 |
| Outer Diameter (mm) | 20.57 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 4/0 |
| DLO Copper Flex Conductor Size (AWG) | 4/0 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 1.03 |
| Barrel Length (mm) | 26.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.2 |
Panduit LCDX4/0-38D-X | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342388 Data Sheets
| Selection Guides | Selection Guide - SA-PCCR02 Tool Chart Guide WEB 4-19-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX4_0-38D-X | Download and View |
