Panduit LCDX4/0-56D-X | Compression Connectors - Lugs | UPC - 07498...
Regular price
$12.43
Unit price
Brand: Panduit
|
SKU:
LCDX4/0-56D-X
Regular price
$12.43
Unit price
Description
Description

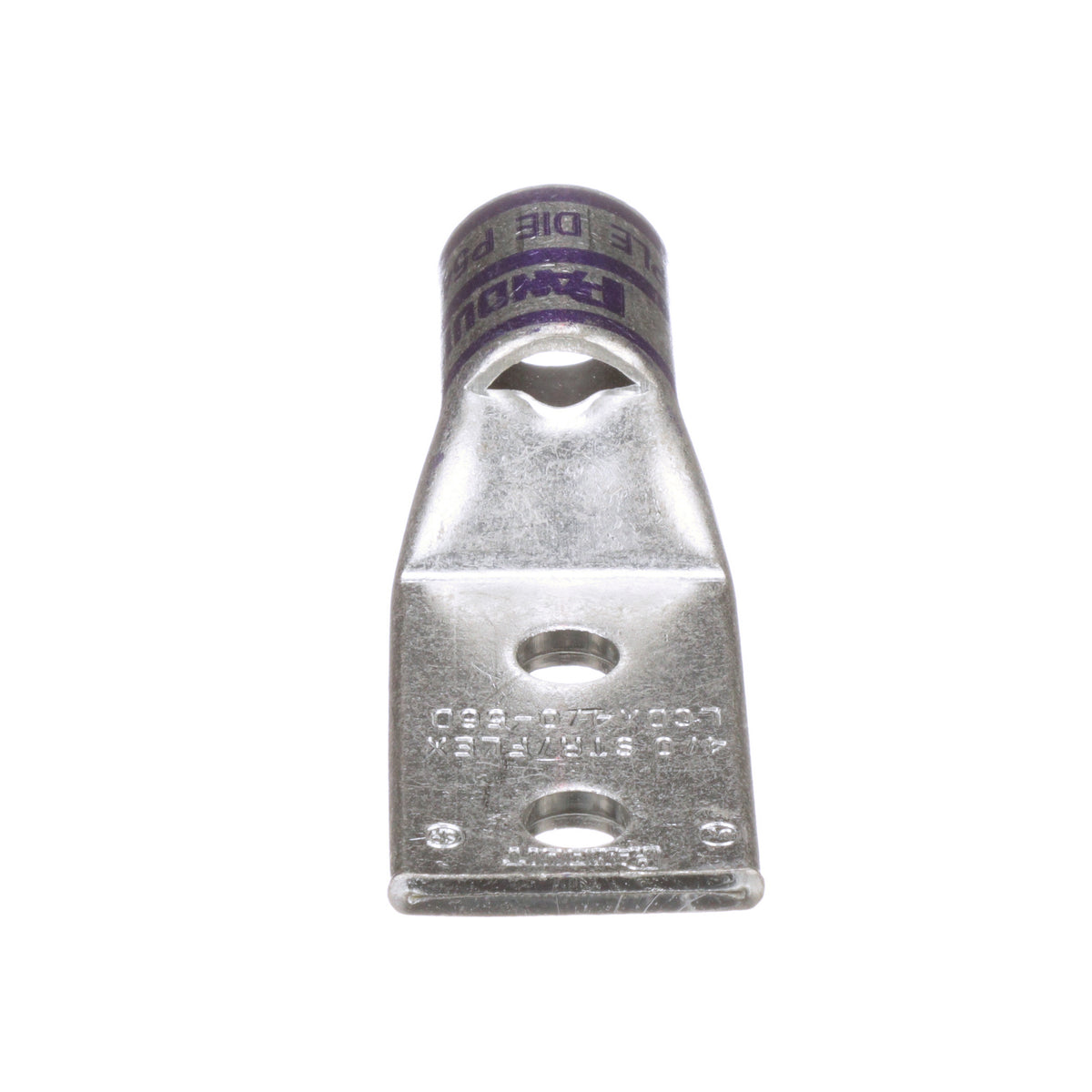

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCDX, 4/0 AWG Conductor, Die Code: P54, 35 kV, 5/16 in Stud, Straight Tongue, 1.19 in W x 0.16 in THK Tongue, 3.31 in Overall Length, Standard Barrel, 1.03 in L Barrel, 90 deg C, 1.06 in Mounting Hole, Tin Plated Copper, Purple
Features + Benefits
Panduit LCDX4/0-56D-X | Compression Connectors - Lugs | UPC - 07498344986 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.491 |
| Stud Hole Size (mm) | 7.9 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.03 |
| Barrel Length (mm) | 26.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.19 |
| Tongue Width (mm) | 30.2 |
| Tongue Thickness (In.) | 0.16 |
| Tongue Thickness (mm) | 4.1 |
| Overall Length (In.) | 3.31 |
| Overall Length (mm) | 84.1 |
| Color Code | Purple |
| Panduit Die Index Number | P54 |
| Burndy Die Index Number | 15 |
| Wire Strip Length (In.) | 1.06 |
Panduit LCDX4/0-56D-X | Compression Connectors - Lugs | UPC - 07498344986 Data Sheets
| Selection Guides | Selection Guide - SA-PCCR02 Tool Chart Guide WEB 4-19-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX4_0-56D-X | Download and View |
Panduit LCDX4/0-56D-X | Compression Connectors - Lugs | UPC - 07498344986 Environmental Information
| Panduit's RoHS Statement | Download and View |
