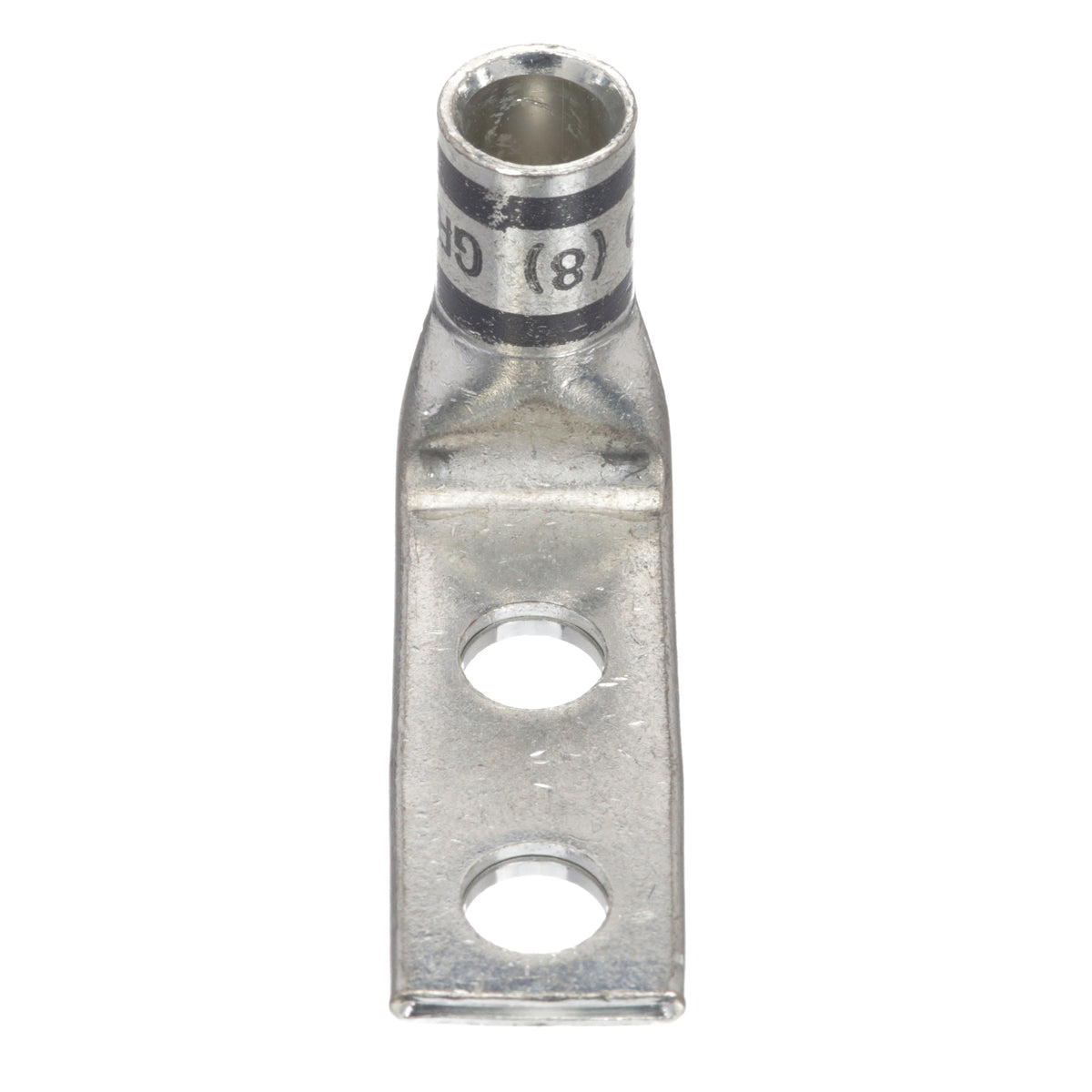

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCDX, 4/5 to 3 AWG Conductor, Die Code: P29, 35 kV, 1/4 in Stud, 90 deg Tongue, 0.55 in W x 0.09 in THK Tongue, 1.74 in Overall Length, Standard Barrel, 0.53 in L Barrel, 90 deg C, 4.2952 in Mounting Hole, Tin Plated Copper, Gray
Features + Benefits
Panduit LCDX4-14AF-L | Compression Connectors - Lugs | UPC - 07498342672 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.53 |
| Barrel Length (mm) | 13.5 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.55 |
| Tongue Width (mm) | 14 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.74 |
| Overall Length (mm) | 44.2 |
| Color Code | Gray |
| Panduit Die Index Number | P29 |
| Burndy Die Index Number | 8 |
| Wire Strip Length (In.) | 42,952 |
