Panduit LCDX450-38D-6 | Compression Connectors - Lugs | UPC - 07498...
Regular price
$37.86
Unit price
Brand: Panduit
|
SKU:
LCDX450-38D-6
Regular price
$37.86
Unit price
Description
Description

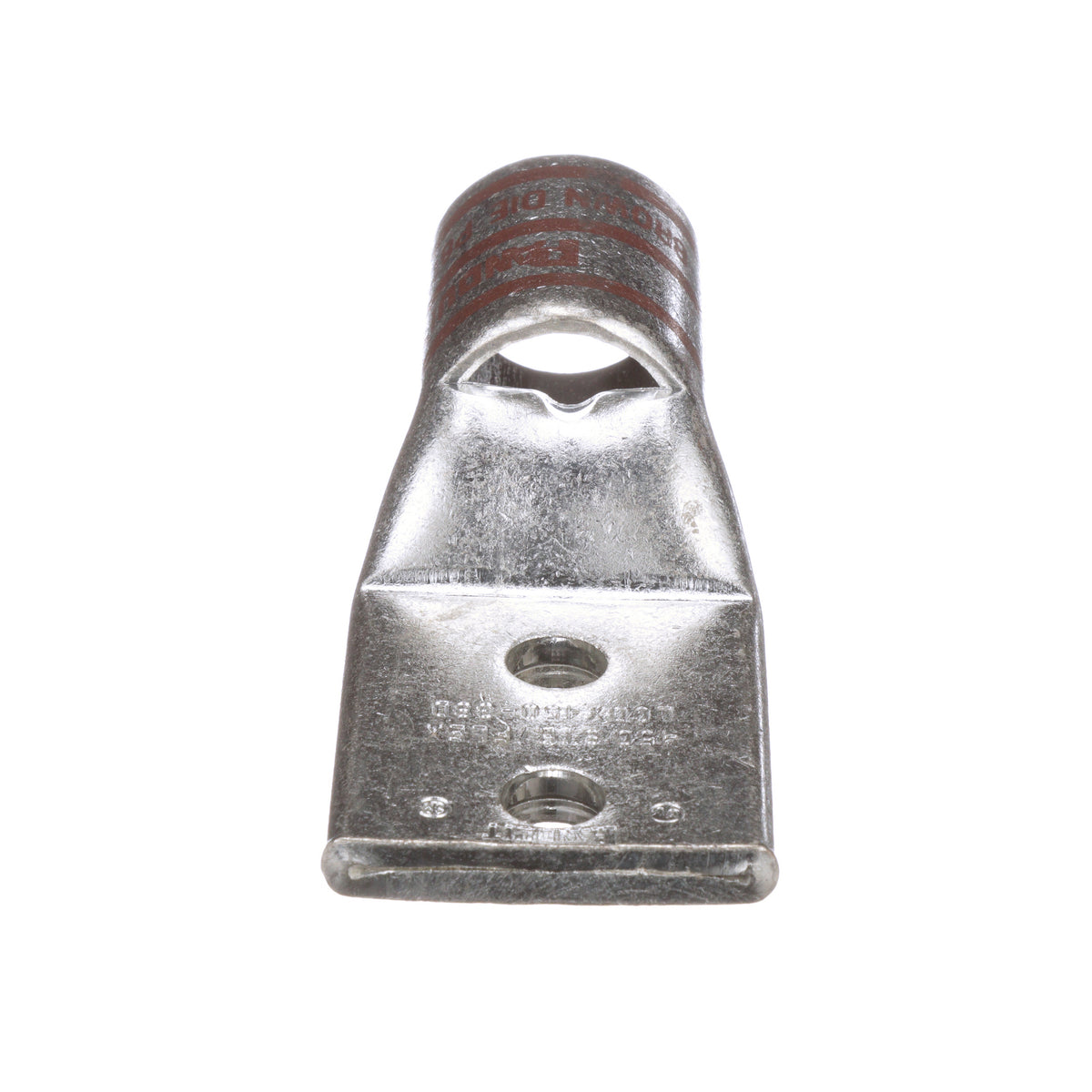

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDX, Copper Conductor, 450 kcmil Class G, H, I, K, M, 444.4 kcmil DLO Conductor, Die Code: P87, 35 kV, 3/8 in Stud, Straight Tongue, 1.7 in W x 0.26 in THK Tongue, 3.9 in Overall Length, Standard With Inspection Window Barrel, 1.4 in L Barrel, 1.44 in L Wire Strip, 90 deg C, 1-7/16 in Mounting Hole, Tin Plated Copper, Brown
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX450-38D-6 | Compression Connectors - Lugs | UPC - 07498345361 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.95 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.4 |
| Barrel Length (mm) | 35.6 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.7 |
| Tongue Width (mm) | 43.2 |
| Tongue Thickness (In.) | 0.26 |
| Tongue Thickness (mm) | 6.6 |
| Overall Length (In.) | 3.9 |
| Overall Length (mm) | 99.1 |
| Color Code | Brown |
| Panduit Die Index Number | P87 |
| Burndy Die Index Number | 20 |
| Wire Strip Length (In.) | 1.44 |
Panduit LCDX450-38D-6 | Compression Connectors - Lugs | UPC - 07498345361 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
| Installation Documents | Copper Compression Connector Installation | Download and View |
