Panduit LCDX6-10BF-L | Compression Connectors - Lugs | UPC - 074983...
Regular price
$9.28
Unit price
Brand: Panduit
|
SKU:
LCDX6-10BF-L
Regular price
$9.28
Unit price
Description
Description

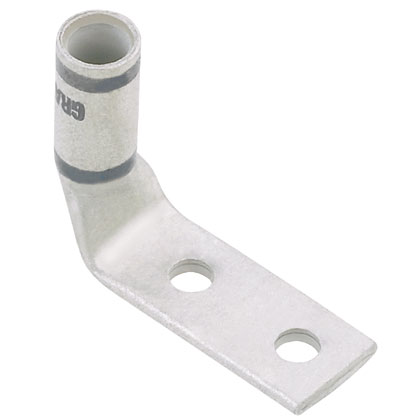

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDX, Flexible/Extra-Flexible Stranded Copper Conductor, 6 AWG Conductor, Die Code: P24, 35 kV, #10 Stud, 90 deg Tongue, 0.46 in W x 0.08 in THK Tongue, 1.69 in Overall Length, Standard With Inspection Window Barrel, 0.22 in ID x 0.31 in OD x 0.48 in L Barrel, 9/16 in L Wire Strip, 3/4 in Hole Spacing, 90 deg C, 9/16 in Mounting Hole, Copper, Blue
Features + Benefits
- 6 AWG class B, C, G, H, I, K, M and DLO conductor
Panduit LCDX6-10BF-L | Compression Connectors - Lugs | UPC - 07498342650 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 0.19 |
| Stud Hole Size (mm) | 4.8 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.48 |
| Barrel Length (mm) | 12.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.46 |
| Tongue Width (mm) | 11.7 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 1.69 |
| Overall Length (mm) | 42.9 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
| Burndy Die Index Number | 7 |
| Wire Strip Length (In.) | 42,614 |
Panduit LCDX6-10BF-L | Compression Connectors - Lugs | UPC - 07498342650 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10AF-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX6-10BF-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
