Panduit LCDX6-14BF-L | Compression Connectors - Lugs | UPC - 074983...
Regular price
$9.07
Unit price
Brand: Panduit
|
SKU:
LCDX6-14BF-L
Regular price
$9.07
Unit price
Description
Description

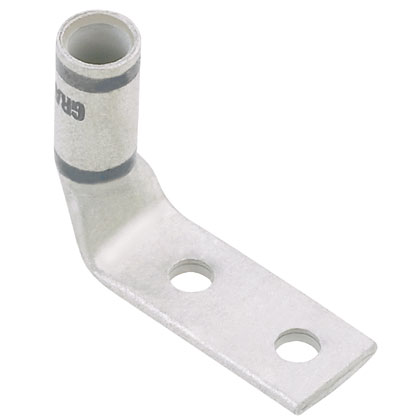

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCDX, 6 AWG Conductor, Die Code: P24, 35 kV, 1/4 in Stud, 90 deg Tongue, 0.48 in W x 0.08 in THK Tongue, 1.78 in Overall Length, Standard Barrel, 0.48 in L Barrel, 90 deg C, 4.2614 in Mounting Hole, Tin Plated Copper, Blue
Features + Benefits
Panduit LCDX6-14BF-L | Compression Connectors - Lugs | UPC - 07498342661 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.75 |
| Stud Hole Spacing (mm) | 19.1 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.48 |
| Barrel Length (mm) | 12.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.08 |
| Tongue Thickness (mm) | 2 |
| Overall Length (In.) | 1.78 |
| Overall Length (mm) | 45.2 |
| Color Code | Blue |
| Panduit Die Index Number | P24 |
| Burndy Die Index Number | 7 |
| Wire Strip Length (In.) | 42,614 |
Panduit LCDX6-14BF-L | Compression Connectors - Lugs | UPC - 07498342661 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10AF-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX6-14BF-L | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDX6-14BF-L | Compression Connectors - Lugs | UPC - 07498342661 Environmental Information
| Panduit's RoHS Statement | Download and View |
