Panduit LCDX650-12-6 | Compression Connectors - Lugs | UPC - 074983...
Description
Description

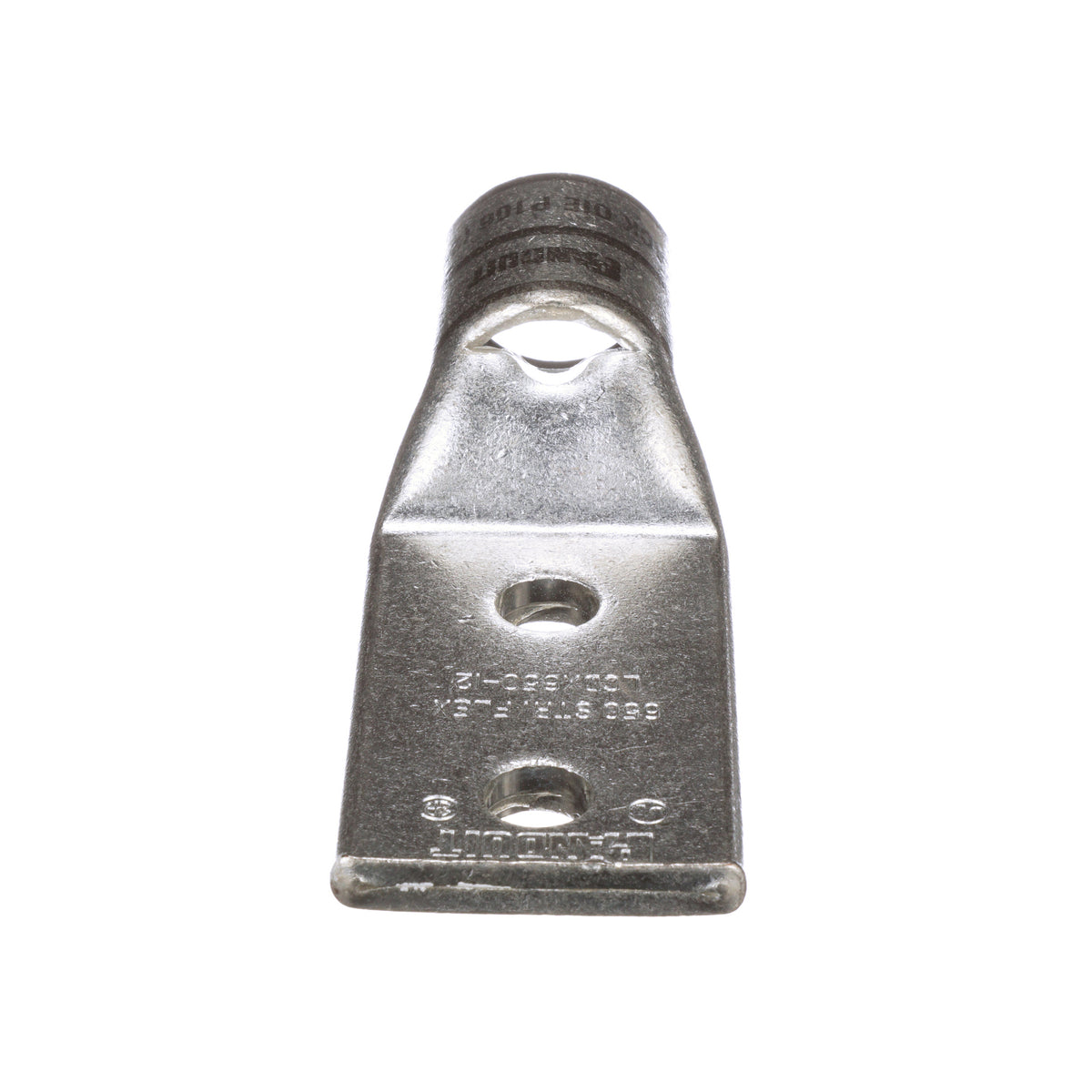

Panduit Compression Lug Connector, 2-Hole, Series: LCDX, Extra-Flexible/Flexible/Stranded Copper Conductor, 646.4 kcmil Conductor, Die Code: P106, 35 kV, 1/2 in Stud, Standard/Straight Tongue, 1.95 in W x 0.3 in THK Tongue, 5.26 in Overall Length, Standard/Inspection Window Barrel, 1.05 in ID x 1.05 in OD x 1.45 in L Barrel, 1-1/2 in L Wire Strip, 1-3/4 in Stud Hole Spacing, Tin Plated, 90 deg C, 1-1/2 in Mounting Hole, Copper, Black
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX650-12-6 | Compression Connectors - Lugs | UPC - 07498342424 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.45 |
| Barrel Length (mm) | 36.8 |
| Tongue Type | Standard |
| Tongue Width (In.) | 1.95 |
| Tongue Width (mm) | 49.5 |
| Tongue Thickness (In.) | 0.3 |
| Tongue Thickness (mm) | 7.6 |
| Overall Length (In.) | 5.26 |
| Overall Length (mm) | 133.6 |
| Color Code | Black |
| Panduit Die Index Number | P106 |
| Burndy Die Index Number | 24 |
| Wire Strip Length (In.) | 1.5 |
Panduit LCDX650-12-6 | Compression Connectors - Lugs | UPC - 07498342424 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX650-12-6 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
