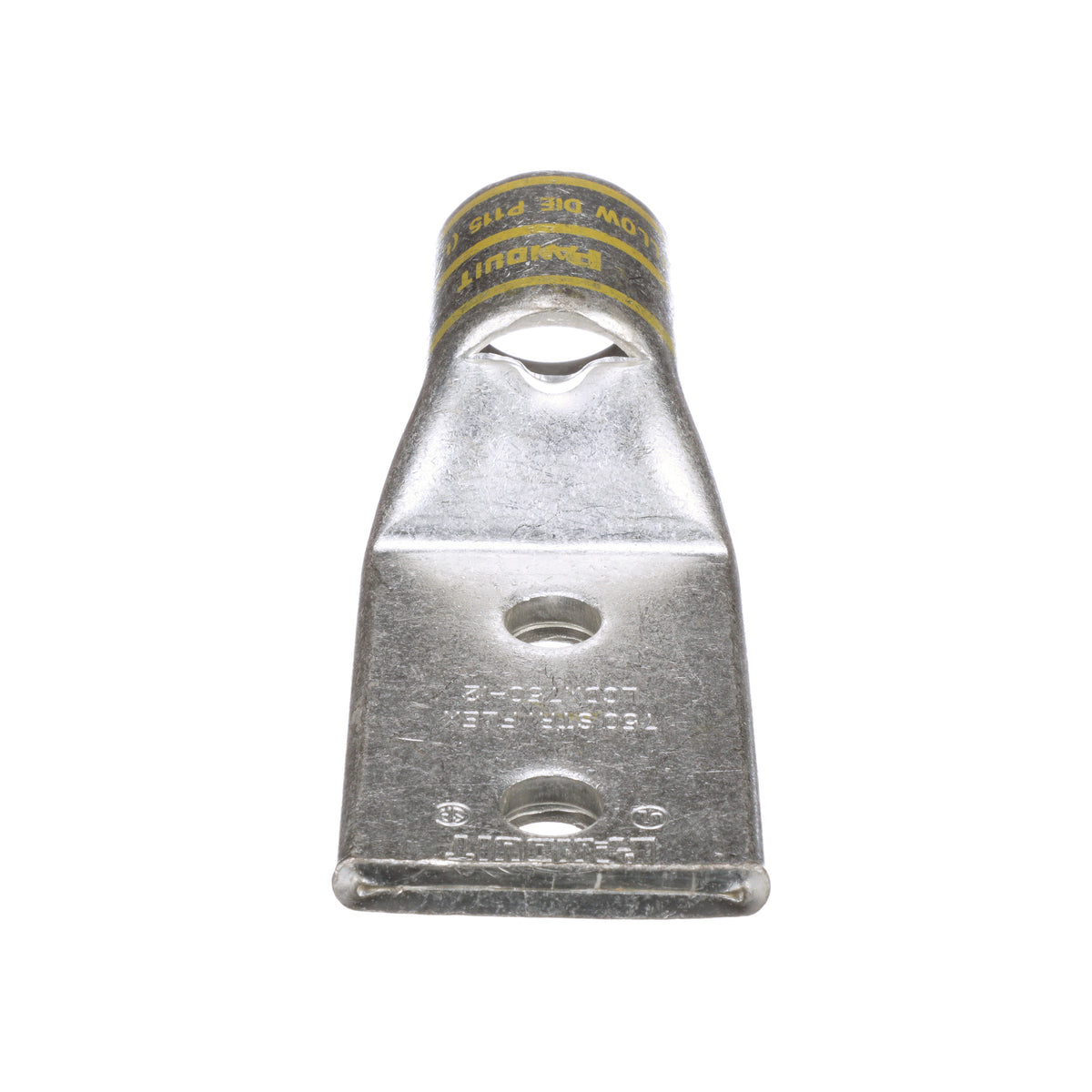

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDX, Copper Conductor, 777.7 kcmil DLO Conductor, Die Code: P115, 35 kV, 1/2 in Stud, Straight Tongue, 2.17 in W x 0.32 in THK Tongue, 5.56 in Overall Length, Standard With Inspection Window Barrel, 1.17 in ID x 1.17 in OD x 1.66 in L Barrel, 1-3/4 in L Wire Strip, 90 deg C, 1-3/4 in Mounting Hole, Tin Plated Copper, Yellow
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX750-12-3 | Compression Connectors - Lugs | UPC - 07498342349 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.75 |
| Stud Hole Spacing (mm) | 44.5 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.66 |
| Barrel Length (mm) | 42.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 2.17 |
| Tongue Width (mm) | 55.1 |
| Tongue Thickness (In.) | 0.32 |
| Tongue Thickness (mm) | 8.1 |
| Overall Length (In.) | 5.56 |
| Overall Length (mm) | 141.2 |
| Color Code | Yellow |
| Panduit Die Index Number | P115 |
| Burndy Die Index Number | L115 |
| Wire Strip Length (In.) | 1.75 |
Panduit LCDX750-12-3 | Compression Connectors - Lugs | UPC - 07498342349 Data Sheets
| Selection Guides | Selection Guide - SA-PCCR02 Tool Chart Guide WEB 4-19-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDX750-12-3 | Download and View |
Panduit LCDX750-12-3 | Compression Connectors - Lugs | UPC - 07498342349 Environmental Information
| Panduit's RoHS Statement | Download and View |
