Brand: Panduit
|
SKU:
LCDX750-12G-3

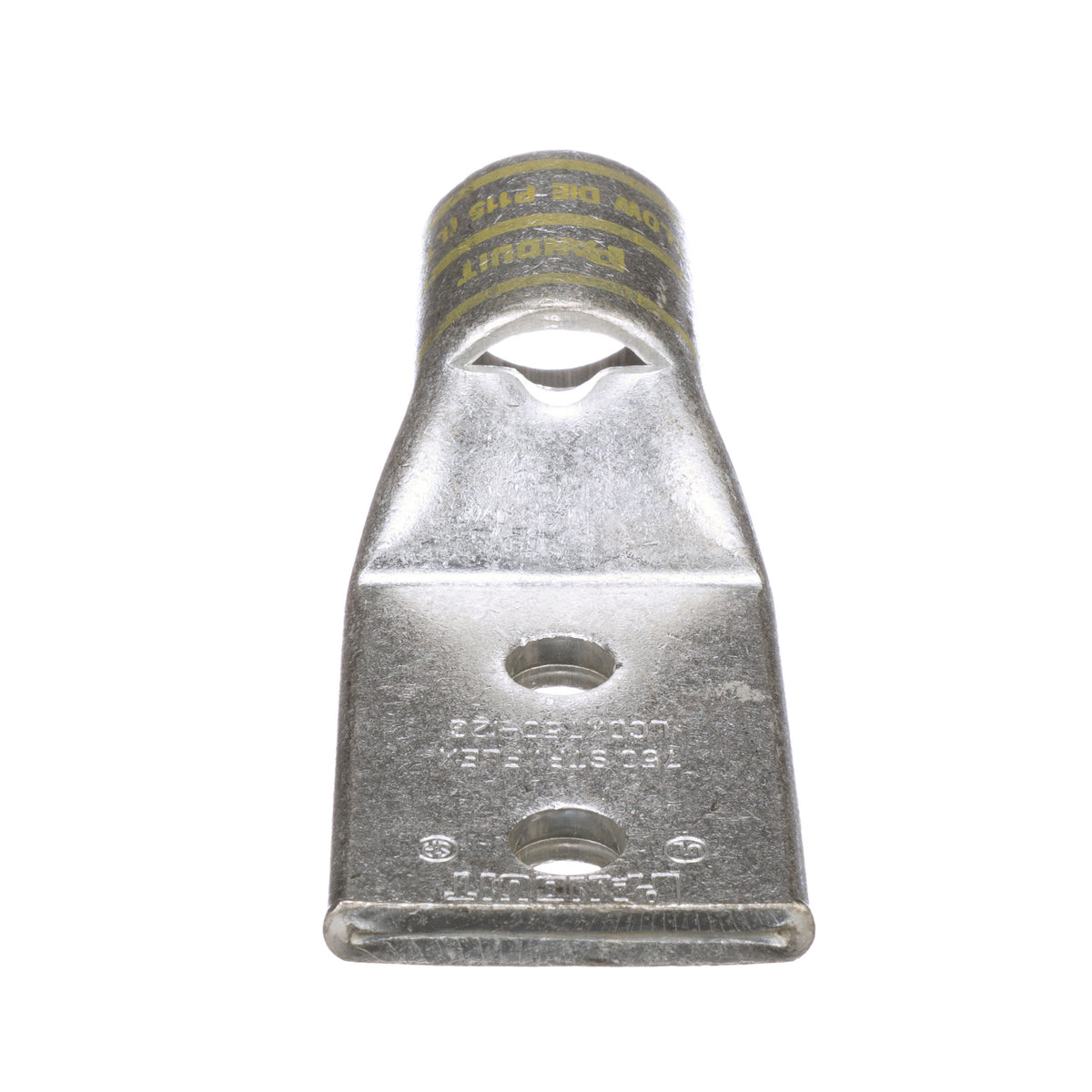

Panduit LCDX750-12G-3 | Compression Connectors - Lugs | UPC - 07498345383
Regular price
$74.03
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCDX750-12G-3 | Compression Connectors - Lugs | UPC - 07498...
Regular price
$74.03
Unit price
Brand: Panduit
|
SKU:
LCDX750-12G-3
Regular price
$74.03
Unit price
Shipping calculated at checkout.
Description
Description
Panduit Compression Lug Connector, 2-Hole, Series: LCDX, Extra-Flexible/Flexible Copper Conductor, 777.7 kcmil Conductor, Die Code: P115, 35 kV, 1/2 in Stud, Straight Tongue, 2.17 in W x 0.32 in THK Tongue, 5.31 in Overall Length, Standard Barrel, 1.66 in L Barrel, Specifications: 1-1/2 in Stud Hole Spacing, Tin Plated, 90 deg C, 1-3/4 in Mounting Hole, Copper, Yellow
Features + Benefits
Panduit LCDX750-12G-3 | Compression Connectors - Lugs | UPC - 07498345383 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.767 |
| Stud Hole Size (mm) | 12.7 |
| Stud Hole Spacing (In.) | 1.5 |
| Stud Hole Spacing (mm) | 38.1 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.66 |
| Barrel Length (mm) | 42.2 |
| Tongue Type | Standard |
| Tongue Width (In.) | 2.17 |
| Tongue Width (mm) | 55.1 |
| Tongue Thickness (In.) | 0.32 |
| Tongue Thickness (mm) | 8.1 |
| Overall Length (In.) | 5.31 |
| Overall Length (mm) | 134.9 |
| Color Code | Yellow |
| Panduit Die Index Number | P115 |
| Burndy Die Index Number | L115 |
| Wire Strip Length (In.) | 1.75 |
Panduit LCDX750-12G-3 | Compression Connectors - Lugs | UPC - 07498345383 Data Sheets
| Selection Guides | Selection Guide - SA-PCCR02 Tool Chart Guide WEB 4-19-10 | Download and View |
| Catalog Cut Sheets | Catalog Cut Sheet - LCDX8-10A-L Product Page | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDX750-12G-3 | Compression Connectors - Lugs | UPC - 07498345383 Environmental Information
| Panduit's RoHS Statement | Download and View |
