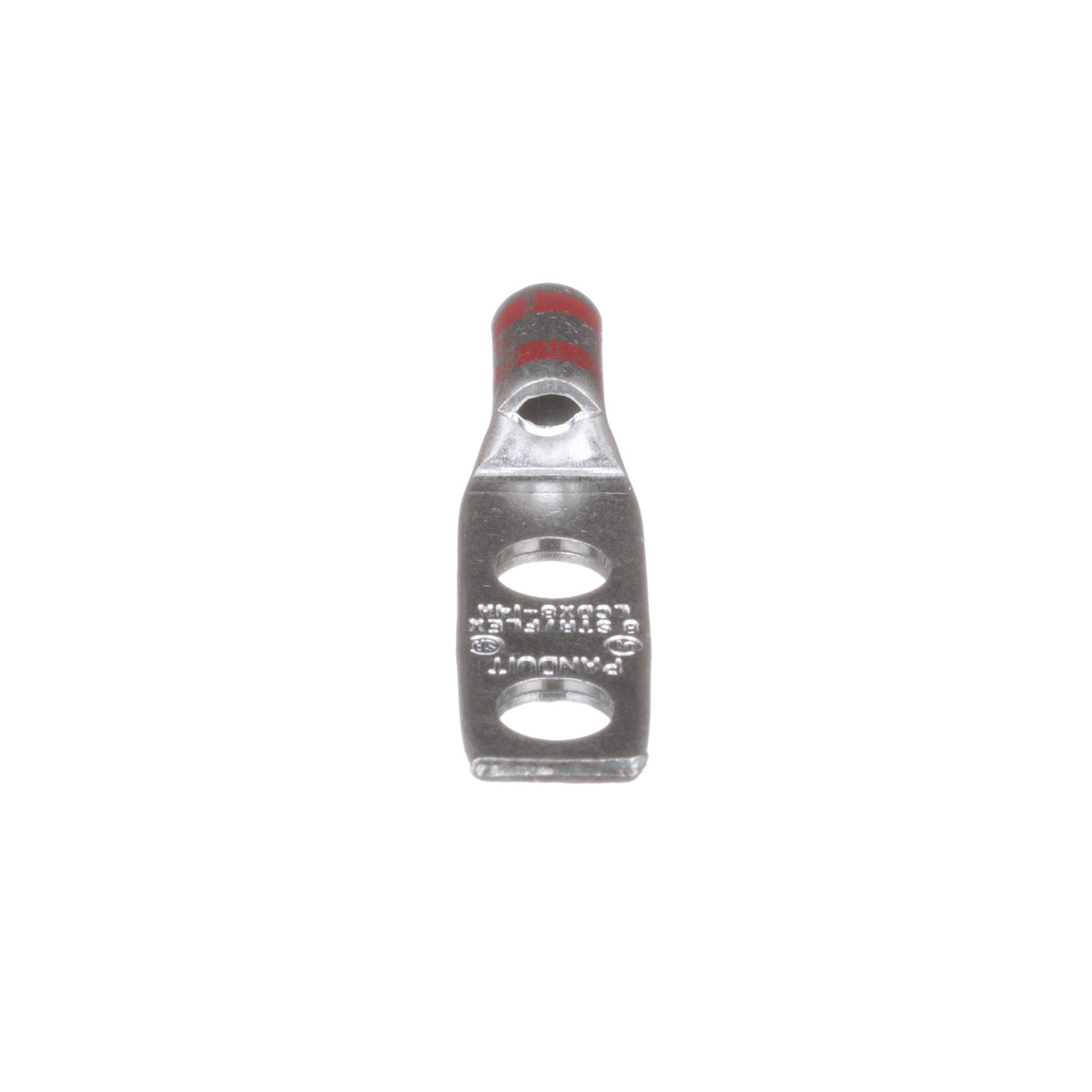

Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDX, Copper Conductor, 8 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P21, 35 kV, 1/4 in Stud, Straight Tongue, 0.48 in W x 0.07 in THK Tongue, 1.83 in Overall Length, Standard With Inspection Window Barrel, 0.18 in ID x 0.27 in OD x 0.42 in L Barrel, 1/2 in L Wire Strip, 90 deg C, 1/2 in Mounting Hole, Tin Plated Copper, Red
Features + Benefits
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDX8-14A-L | Tin-Plated Copper Compression Connectors - Lugs | UPC - 07498342353 Key Specs
| Inside Diameter (In.) | 0.18 |
| Inside Diameter (mm) | 4.57 |
| Outer Diameter (In.) | 0.27 |
| Outer Diameter (mm) | 6.85 |
| Product Type | Tin-Plated Copper Compression Connectors - Lugs |
| Lug Type | 2 Stud Hole Lug |
| Base Material | Copper |
| Copper Code Conductor Size (AWG) | 8 |
| DLO Copper Flex Conductor Size (AWG) | 8 |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel with Inspection Window |
| Barrel Length (In.) | 0.42 |
| Barrel Length (mm) | 10.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
