Brand: Panduit
|
SKU:
LCDX8-14AH-L
Panduit LCDX8-14AH-L | Compression Connectors - Lugs | UPC - 07498342356
Regular price
$7.59
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCDX8-14AH-L | Compression Connectors - Lugs | UPC - 074983...
Regular price
$7.59
Unit price
Description
Description

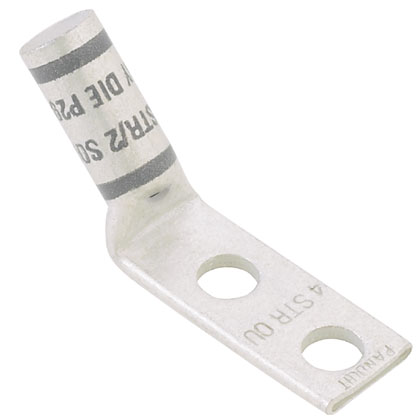

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCDX, 8 AWG Conductor, Die Code: P21, 35 kV, 1/4 in Stud, 45 deg Tongue, 0.48 in W x 0.07 in THK Tongue, 1.71 in Overall Length, Standard Barrel, 0.42 in L Barrel, 90 deg C, 4.2767 in Mounting Hole, Tin Plated Copper, Red
Features + Benefits
Panduit LCDX8-14AH-L | Compression Connectors - Lugs | UPC - 07498342356 Key Specs
| Product Type | Compression Connectors - Lugs |
| Sub Brand | Pan-Lug |
| Stud Hole Size (In.) | 42.826 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.42 |
| Barrel Length (mm) | 10.7 |
| Tongue Type | Standard |
| Tongue Width (In.) | 0.48 |
| Tongue Width (mm) | 12.2 |
| Tongue Thickness (In.) | 0.07 |
| Tongue Thickness (mm) | 1.8 |
| Overall Length (In.) | 1.71 |
| Overall Length (mm) | 43.4 |
| Color Code | Red |
| Panduit Die Index Number | P21 |
| Burndy Die Index Number | 49 |
| Wire Strip Length (In.) | 42,767 |
Panduit LCDX8-14AH-L | Compression Connectors - Lugs | UPC - 07498342356 Data Sheets
| Part Drawings | Part Drawing - PDF - LCDX8-14AH-L | Download and View |
| Catalog Cut Sheets | Flex Conductor, Two Hole, Standard Barrel 45° | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDX8-14AH-L | Compression Connectors - Lugs | UPC - 07498342356 Environmental Information
| Panduit's RoHS Statement | Download and View |
