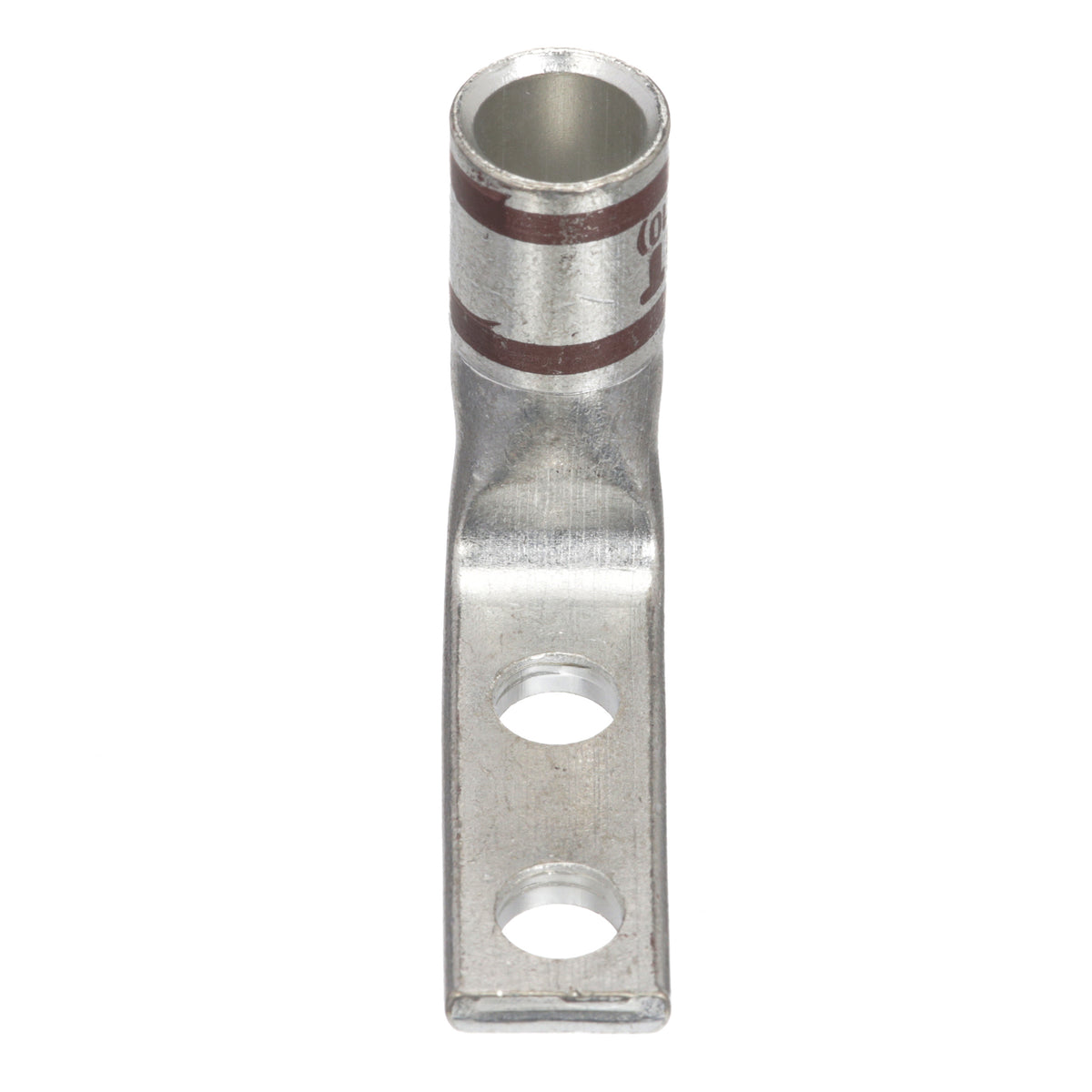

Panduit LCDXN2-14AF-E | Pan-Lug Compression Connectors - Lugs
Description
Description
Double the stability with two mounting holes for secure connections of large electrical wires in demanding installations with our 90° angle tongue compression lug.
Panduit Pan-Lug Compression Lug, 2-Hole, Series: LCDXN-F, Copper Conductor, 2 AWG Class B, C, G, H, I, K, M and DLO Conductor, Die Code: P33, 35 kV, 1/4 in Stud, 90 deg Narrow Tongue, 1.26 in L x 0.47 in W x 0.13 in THK Tongue, 1.94 in Overall Length, Standard With Inspection Window Barrel, 0.36 in ID x 0.47 in OD x 1.17 in L Barrel, 11/16 in L Wire Strip, 90 deg C, 11/16 in Mounting Hole, Tin Plated Copper, Brown
Panduit - LCDXN2-14AF-E - Features
- Narrow tongue width for limited space applications
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin-plated to inhibit corrosion
- For use with flexible copper conductors
Specifications
Specifications
Panduit - LCDXN2-14AF-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCDXN2-14AF-E |
| Product Type | Compression Lug |
| Base Material | Copper |
| Number of Stud Holes | 2 |
| Barrel Type | Standard |
| Barrel Entry | Beveled |
| Tongue Type | Narrow |
| Tongue Angle | 90° |
| Inspection Window | Yes |
| Finish/Coating | Tin-Plated |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Copper Code Conductor Size (AWG) | 2 |
| Class G Copper Flex Conductor Size (AWG) | 2 |
| Class H Copper Flex Conductor Size (AWG) | 2 |
| Class I Copper Flex Conductor Size (AWG) | 2 |
| Class K Copper Flex Conductor Size (AWG) | 2 |
| Class M Copper Flex Conductor Size (AWG) | 2 |
| DLO Copper Flex Conductor Size (AWG) | 2 |
| Barrel Length (In.) | 0.59 |
| UPC | 07498302881 |
Panduit - LCDXN2-14AF-E - Environmental Information
| RoHS Status | ROHS3 Compliant |
|---|---|
| Moisture Sensitivity Level (MSL) | Not Applicable |
| ECCN | EAR99 |
| HTSUS | 8536.90.4000 |
Panduit - LCDXN2-14AF-E - Videos
| Panduit LCDXN2-14AF-E Video 1 | Click to View |
|---|---|
| Panduit LCDXN2-14AF-E Video 2 | Click to View |
