Panduit LCDXN2-14AH-E | Compression Connectors - Lugs | UPC - 07498...
Regular price
$254.30
Unit price
Brand: Panduit
|
SKU:
9992389
Regular price
$254.30
Unit price
Description
Description

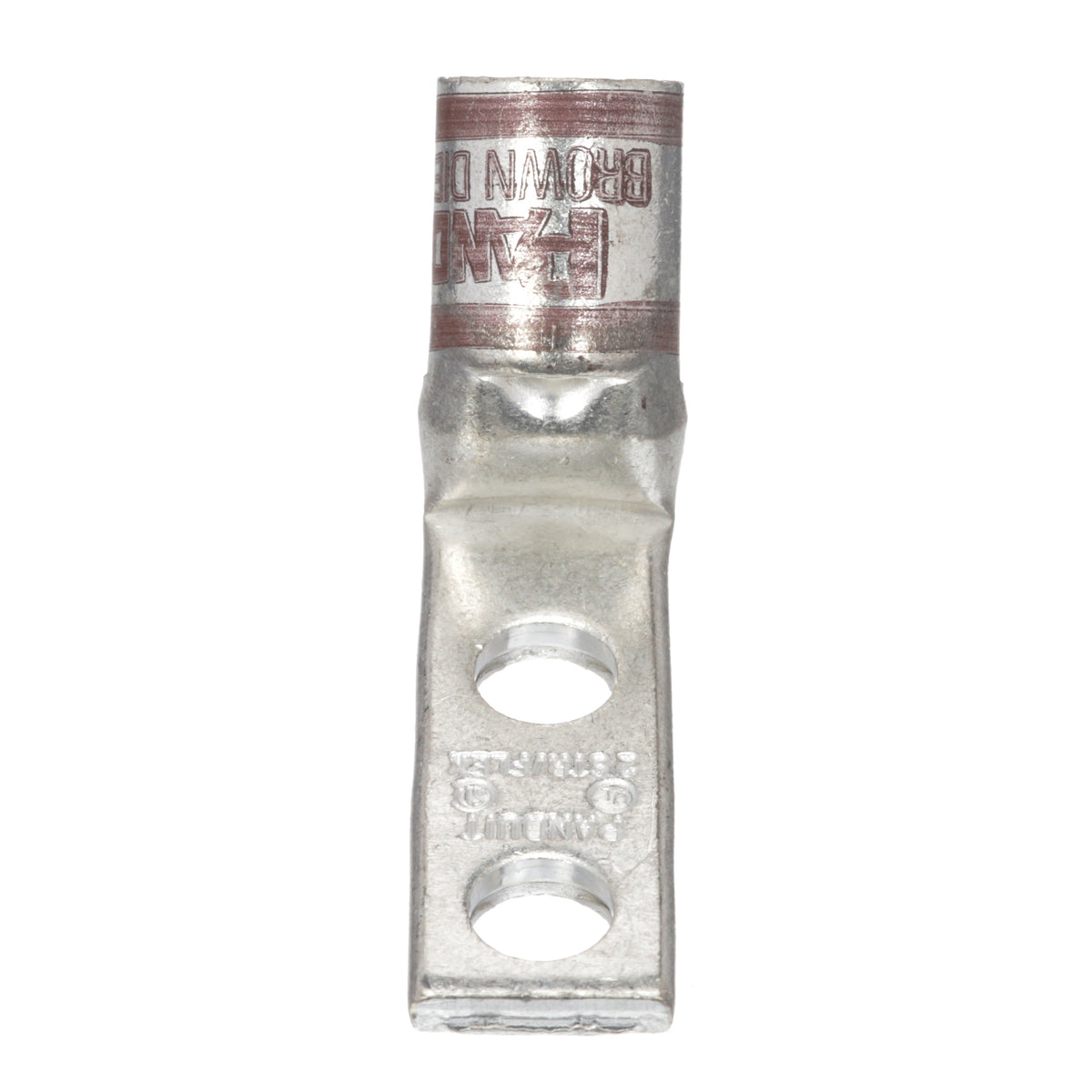

Panduit Compression Lug Connector, 2-Hole, Series: LCDXN, Flexible Copper Conductor, 2 AWG Conductor, Die Code: P33, 35 kV, 1/4 in Stud, 45 deg/Narrow Tongue, 0.47 in W x 0.11 in THK Tongue, 1.92 in Overall Length, Standard/Inspection Window Barrel, 0.59 in L Barrel, 0.63 in Stud Hole Spacing, Tin Plated, 90 deg C, 4.2675 in Mounting Hole, Copper, Brown
Features + Benefits
- Narrow tongue width for limited space applications
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCDXN2-14AH-E | Compression Connectors - Lugs | UPC - 07498302895 Key Specs
| Product Type | Compression Connectors - Lugs |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Tongue Type | Narrow |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Tongue Width (In.) | 0.47 |
| Tongue Width (mm) | 11.9 |
| Overall Length (In.) | 1.92 |
| Overall Length (mm) | 48.8 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 0.59 |
| Barrel Length (mm) | 15 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 42675.00 |
| Wire Strip Length (mm) | 75 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps. |
Panduit LCDXN2-14AH-E | Compression Connectors - Lugs | UPC - 07498302895 Data Sheets
| Part Drawings | Catalog Cut Sheet - LCDXN750-38DH-3 | Download and View |
| Part Drawings | Part Drawing - PDF - LCDXN2-14AH-E-01 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDXN2-14AH-E | Compression Connectors - Lugs | UPC - 07498302895 Environmental Information
| Panduit's RoHS Statement | Download and View |
