Panduit LCDXN2-14AH-E | Pan-Lug LCDXN2-14AH-E Compression Connector...
Regular price
$14.15
Unit price
Brand: Panduit
|
SKU:
9992389-EA
Regular price
$14.15
Unit price
Description
Description

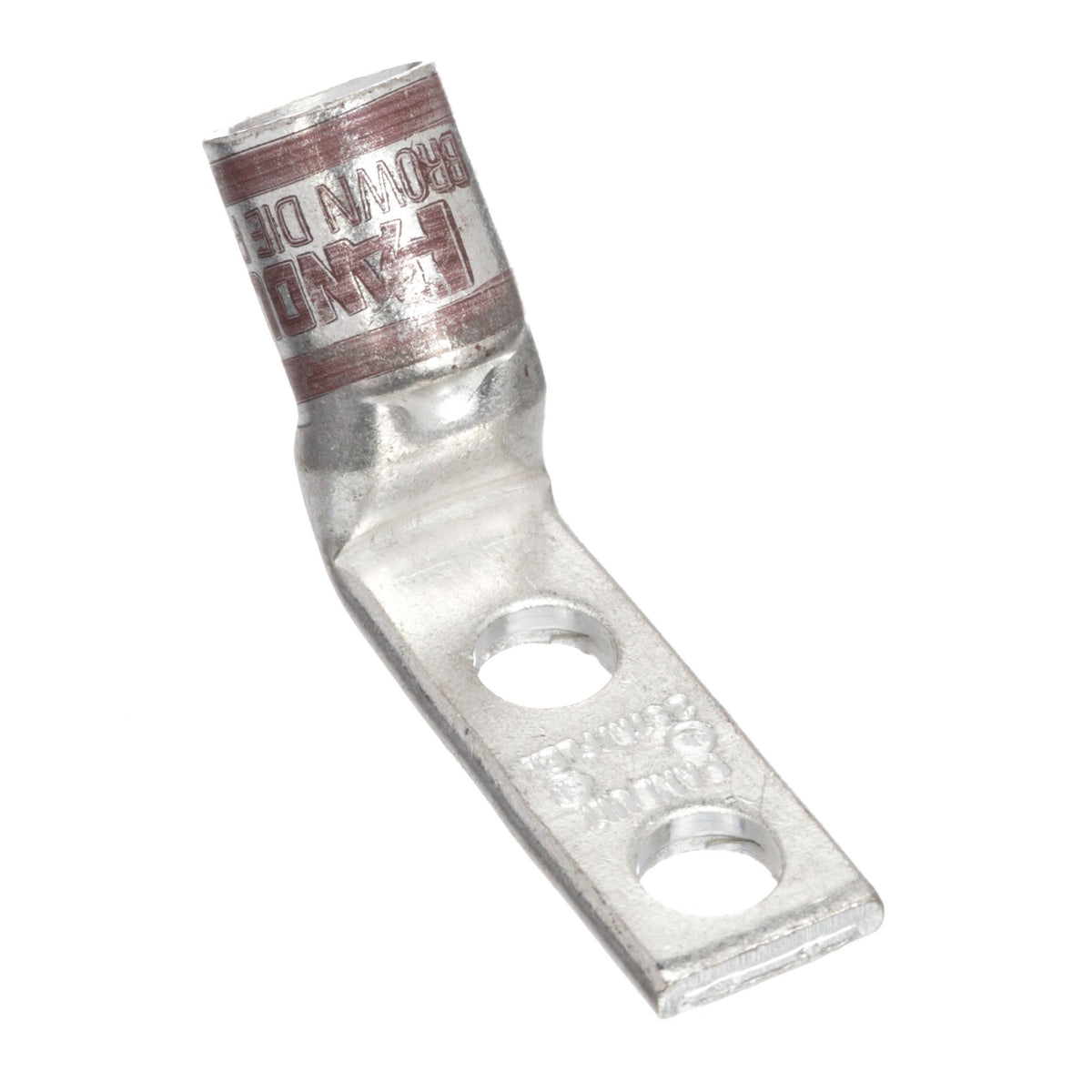

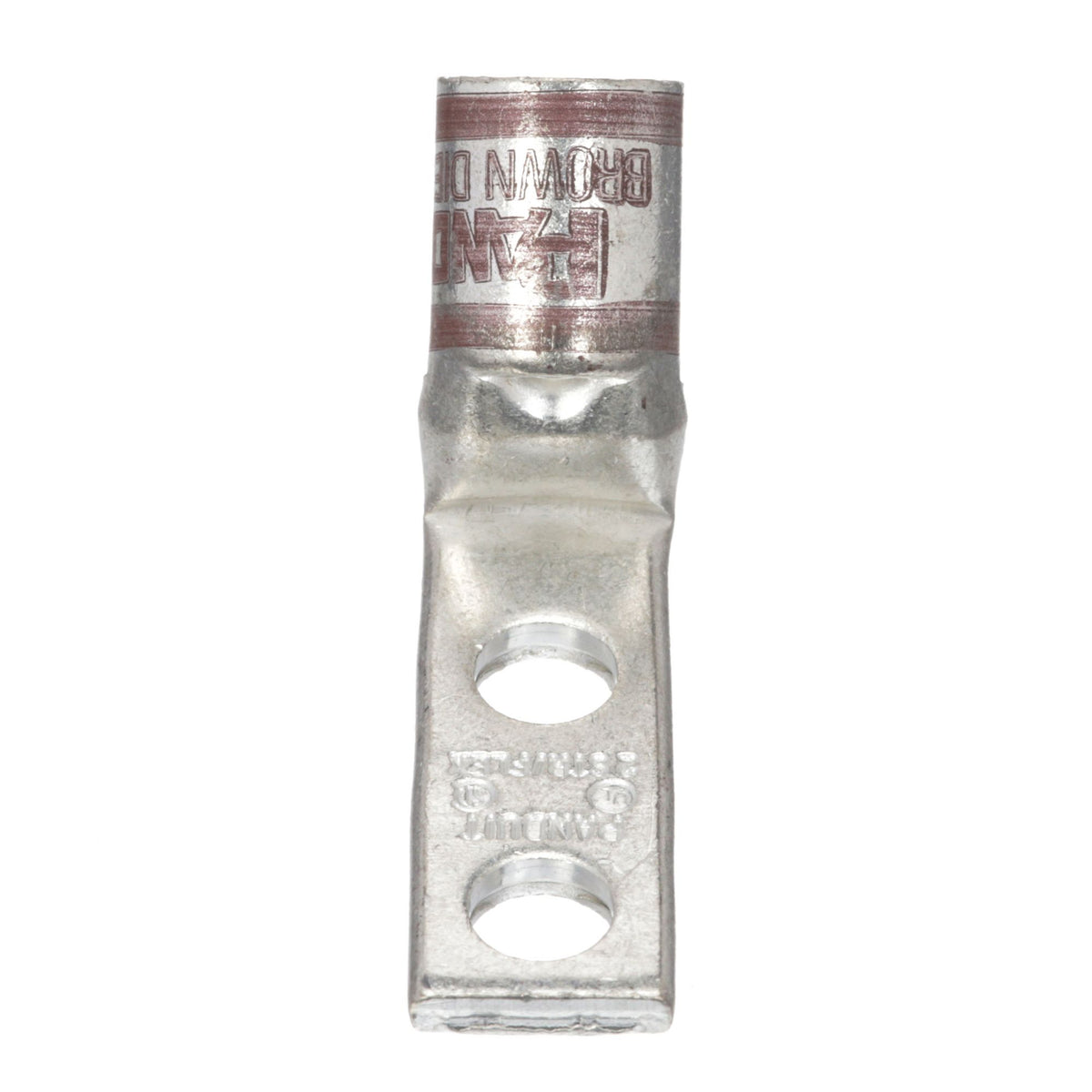

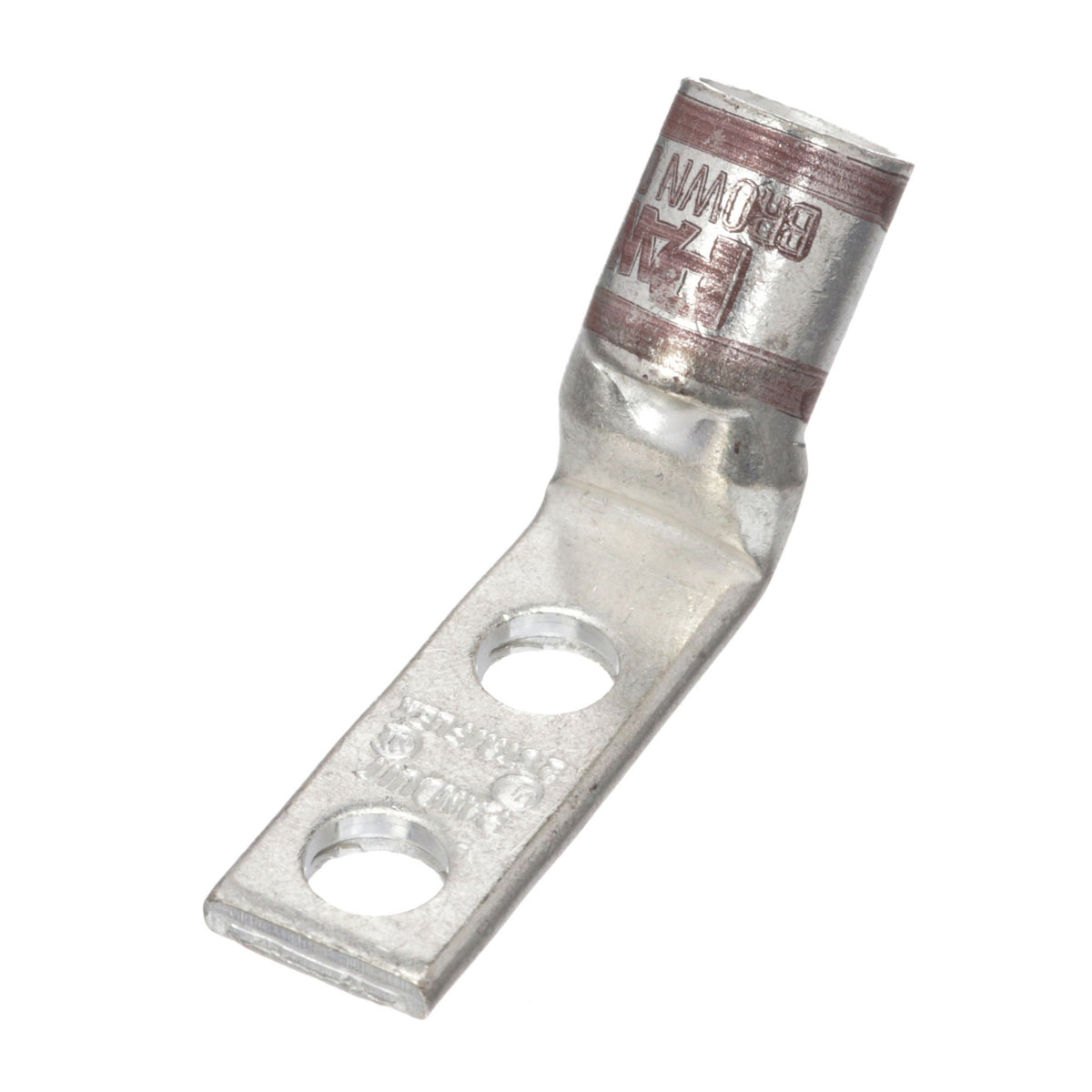

Panduit LCDXN2-14AH-E | Pan-Lug LCDXN2-14AH-E Compression Connectors - Lugs
Two-hole, flex lug, standard barrel with window, narrow tongue, #2 AWG wire, 1/4 stud hole, .63 hole spacing, 45° angle tongue.
Panduit LCDXN2-14AH-E - LUG #2 - 2H, FLEX, STANDARD BARREL
Specifications
Specifications
Panduit - LCDXN2-14AH-E - Product Categories
- Wire Termination
- Mechanical & Compression Lugs & Splices
Panduit - LCDXN2-14AH-E - Specifications
| Brand Name | Panduit |
|---|---|
| Manufacturer Part Number | LCDXN2-14AH-E |
| Item Description | Pan-Lug LCDXN2-14AH-E Compression Connectors - Lugs |
| Product Type | Compression Connectors - Lugs |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.4 |
| Stud Hole Spacing (In.) | 0.63 |
| Stud Hole Spacing (mm) | 16 |
| Tongue Thickness (In.) | 0.11 |
| Tongue Thickness (mm) | 2.8 |
| Tongue Width (In.) | 0.47 |
| Tongue Width (mm) | 11.9 |
| Overall Length (In.) | 1.92 |
| Overall Length (mm) | 48.8 |
| Barrel Length (In.) | 0.59 |
| Barrel Length (mm) | 15 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 42675.00 |
| Wire Strip Length (mm) | 75 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps. |
Panduit - LCDXN2-14AH-E - Package Information
| UPC | 07498302895 |
|---|---|
| Standard Package Quantity | 20 |
| Standard Package Volume (cf) | 0.0302 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - LCDXN2-14AH-E - Videos
| Video 1 | Click to View |
|---|---|
| Video 2 | Click to View |
