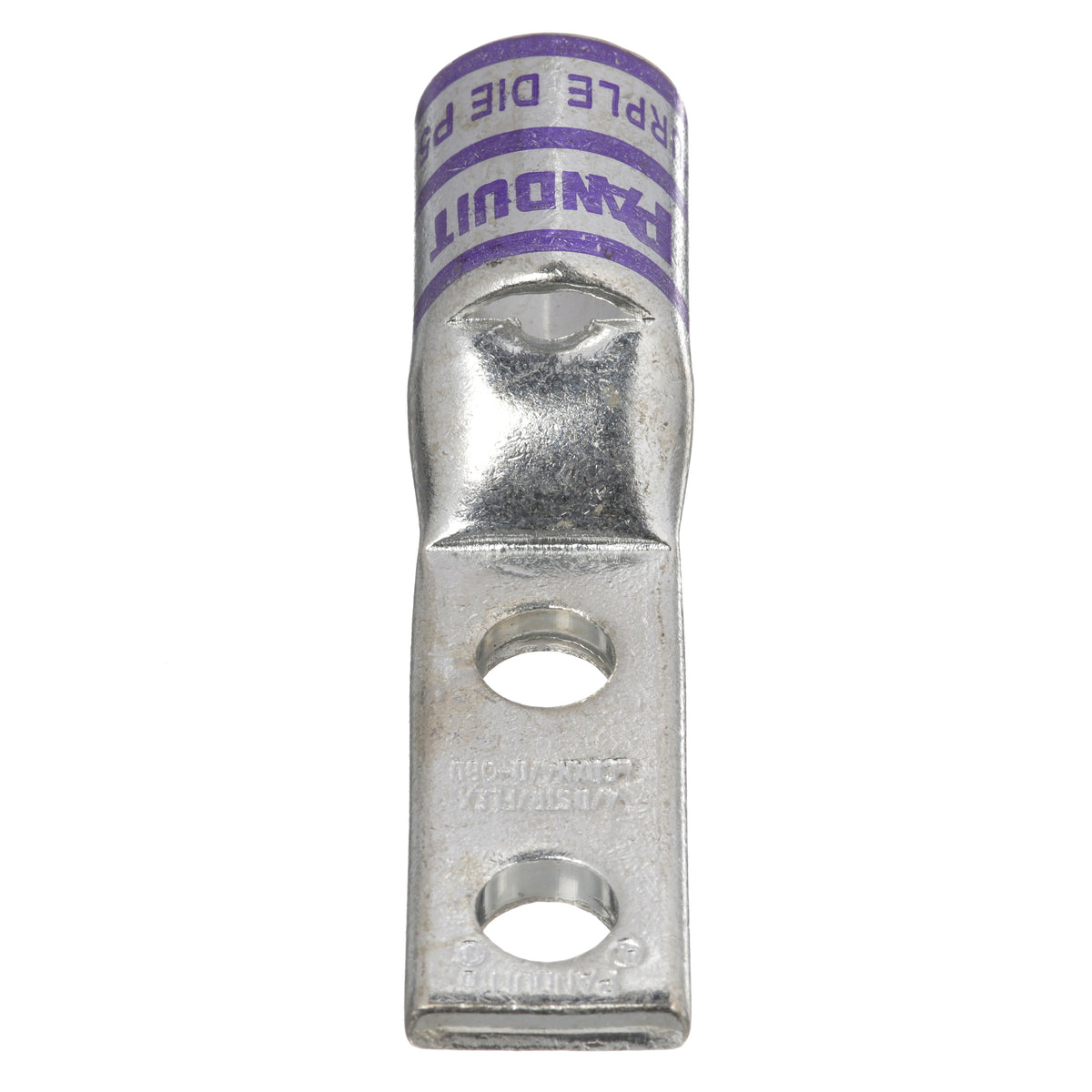

Panduit Compression Lug Connector, 2-Hole, Series: LCDXN, Extra-Flexible/Flexible/Stranded Copper Conductor, 4/0 AWG Conductor, Die Code: P54, 35 kV, 3/8 in Stud, Narrow/Straight Tongue, 0.81 in W x 0.2 in THK Tongue, 3.36 in Overall Length, Standard/Inspection Window Barrel, 0.65 in ID x 0.81 in OD x 1.03 in L Barrel, 1 in Stud Hole Spacing, 2-15/16 in L Wire Strip, Tin Plated, 90 deg C, 1.06 in Mounting Hole, Copper, Purple
Features + Benefits
- Narrow tongue width for limited space applications
- Can be used with code conductor and flex conductor class G, H, I, K, M and diesel Locomotive
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
- For use with flexible, extra-flexible and code stranded copper conductors
Panduit LCDXN4/0-38D-X | Compression Connectors - Lugs | UPC - 07498344990 Key Specs
| Product Type | Compression Connectors - Lugs |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Tongue Type | Narrow |
| Tongue Thickness (In.) | 0.2 |
| Tongue Thickness (mm) | 4.1 |
| Tongue Width (In.) | 0.81 |
| Tongue Width (mm) | 20.6 |
| Overall Length (In.) | 3.36 |
| Overall Length (mm) | 84.8 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.03 |
| Barrel Length (mm) | 26.2 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 1.06 |
| Wire Strip Length (mm) | 75 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps. |
