Brand: Panduit
|
SKU:
LCDXN500-38D-6
Panduit LCDXN500-38D-6 | Compression Connectors - Lugs | UPC - 07498344273
Regular price
$50.91
Unit price
Shipping calculated at checkout.
-
Low prices.
Price match guarantee
-
In-House Experts.
We know our products
-
Easy Returns.
Quick & Hassle Free
-
Superior Selection.
Extensive product catalog
Panduit LCDXN500-38D-6 | Compression Connectors - Lugs | UPC - 0749...
Regular price
$50.91
Unit price
Brand: Panduit
|
SKU:
LCDXN500-38D-6
Regular price
$50.91
Unit price
Shipping calculated at checkout.
Description
Description

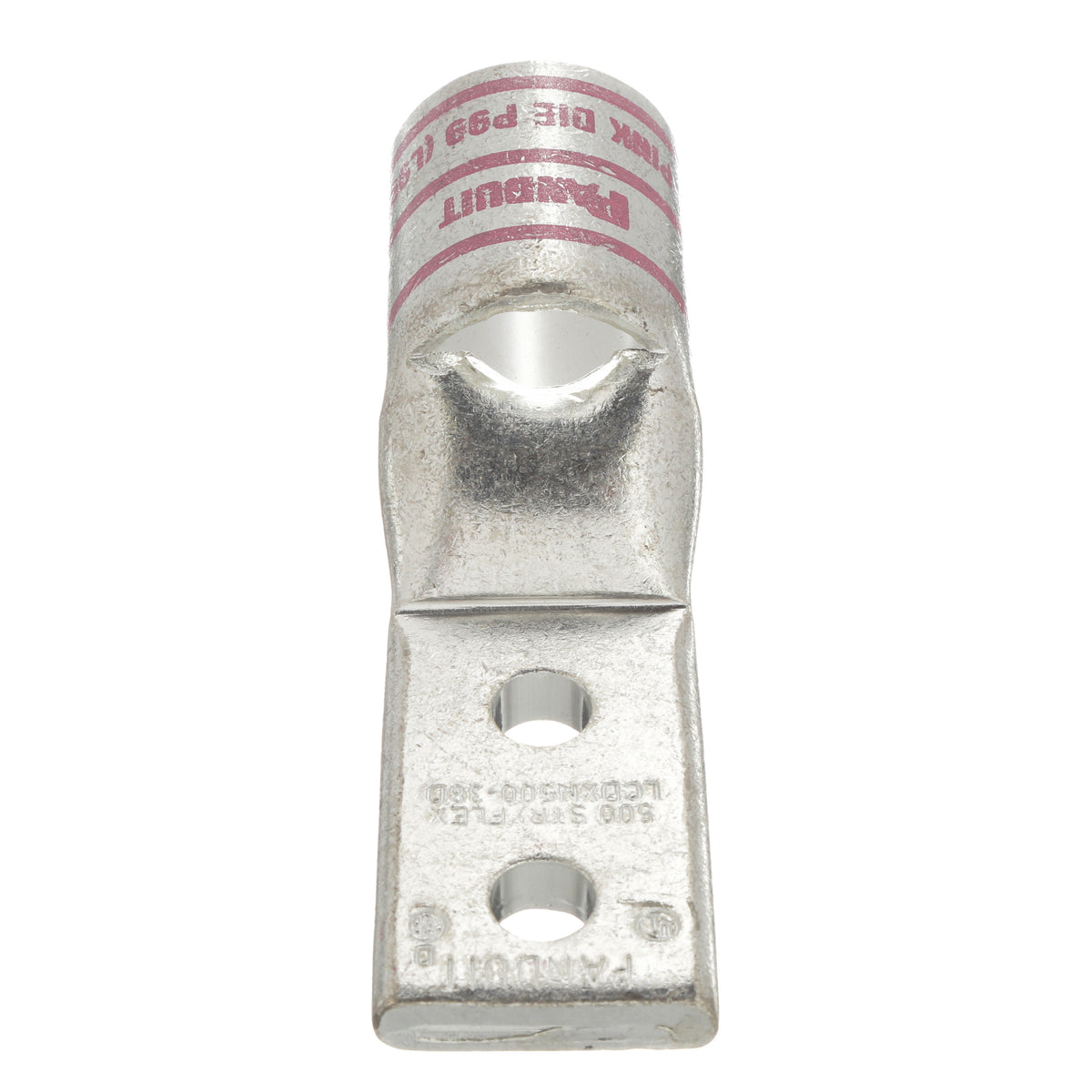

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCDXN, 500 kcmil, 535.3 kcmil Conductor, Die Code: P99, 35 kV, 3/8 in Stud, Narrow Straight Tongue, 1.3 in W x 0.28 in THK Tongue, 4.32 in Overall Length, Standard Barrel, 1.48 in L Barrel, 90 deg C, 1.56 in Mounting Hole, Tin Plated Copper, Pink
Features + Benefits
- Narrow tongue width for limited space applications
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCDXN500-38D-6 | Compression Connectors - Lugs | UPC - 07498344273 Key Specs
| Product Type | Compression Connectors - Lugs |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Tongue Type | Narrow |
| Tongue Thickness (In.) | 0.32 |
| Tongue Thickness (mm) | 7.1 |
| Tongue Width (In.) | 1.3 |
| Tongue Width (mm) | 33 |
| Overall Length (In.) | 4.37 |
| Overall Length (mm) | 109.7 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.48 |
| Barrel Length (mm) | 37.6 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 1.56 |
| Wire Strip Length (mm) | 40 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps. |
Panduit LCDXN500-38D-6 | Compression Connectors - Lugs | UPC - 07498344273 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDXN2-14A-E Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDXN500-38D-6rev04 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDXN500-38D-6 | Compression Connectors - Lugs | UPC - 07498344273 Environmental Information
| Panduit's RoHS Statement | Download and View |
