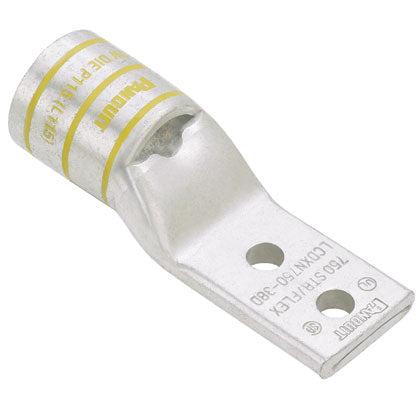

Panduit Pan-Lug Lug Compression Connector, 2-Hole, Series: LCDXN, 777.7 kcmil Conductor, Die Code: P115, 35 kV, 3/8 in Stud, Narrow Straight Tongue, 1.5 in W x 0.34 in THK Tongue, 4.62 in Overall Length, Standard Barrel, 1.66 in L Barrel, 90 deg C, 1-3/4 in Mounting Hole, Tin Plated Copper, Yellow
Features + Benefits
- Narrow tongue width for limited space applications
- Generously beveled wire entry prevents bent back strands when inserting conductor into barrel
- Color coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection
- Inspection window to visually assure full conductor insertion
- Tin plated to inhibit corrosion
Panduit LCDXN750-38D-3 | Compression Connectors - Lugs | UPC - 07498344274 Key Specs
| Product Type | Compression Connectors - Lugs |
| Stud Hole Size (In.) | 3/8 |
| Stud Hole Size (mm) | 9.5 |
| Stud Hole Spacing (In.) | 1 |
| Stud Hole Spacing (mm) | 25.4 |
| Tongue Type | Narrow |
| Tongue Thickness (In.) | 0.34 |
| Tongue Thickness (mm) | 8.6 |
| Tongue Width (In.) | 1.5 |
| Tongue Width (mm) | 38.1 |
| Overall Length (In.) | 4.62 |
| Overall Length (mm) | 117.4 |
| Barrel Type | Standard Barrel Length with Inspection Window |
| Barrel Length (In.) | 1.66 |
| Barrel Length (mm) | 42.2 |
| Sub Brand | Pan-Lug |
| Wire Strip Length (In.) | 1.75 |
| Wire Strip Length (mm) | 45 |
| Part Features | Tin plated to inhibit corrosion,color coded barrel,inspection window,narrow tongue for limited space apps. |
Panduit LCDXN750-38D-3 | Compression Connectors - Lugs | UPC - 07498344274 Data Sheets
| Catalog Cut Sheets | Catalog Cut Sheet - LCDXN2-14A-E Product Page | Download and View |
| Part Drawings | Part Drawing - PDF - LCDXN750-38D-3 | Download and View |
| Selection Guides | Power Connector Tool and Die Selection Guides | Download and View |
Panduit LCDXN750-38D-3 | Compression Connectors - Lugs | UPC - 07498344274 Environmental Information
| Panduit's RoHS Statement | Download and View |
