Panduit LCG4-C | Pan-Lug™ LCG Series Copper Ground Mechanical Lug
Description
Description

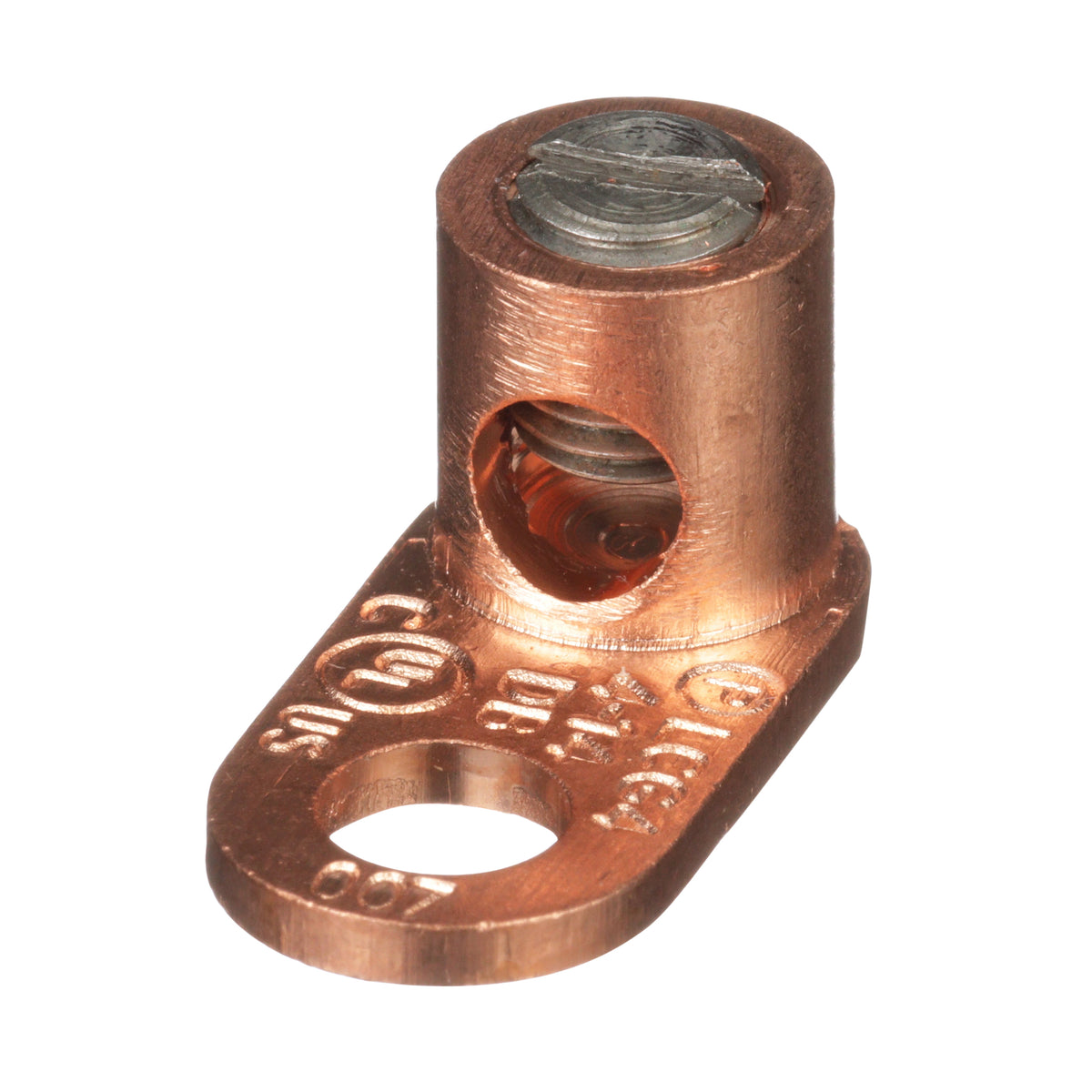

Panduit Mechanical Lug, Ground, Solid/Stranded Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1.11 in L x 0.54 in W x 0.55 in H
Made from high-quality copper for optimal conductivity and strength, our mechanical lug features an inspection window for easy verification and a flat bottom for secure mounting.
The LCG4-C copper grounding mechancial lug is used with Stranded and Solid Copper Conductors. Made from heavy wall, extruded, high conductivity copper provides high strength and premium electrical properties. Inspection window to fisually assure full c onductor insertion. Flat bottom allows for complete contact with mounting surface, cULus Listed for grounding and bonding suitable for direct burial in earth and concrete. UL Listed for use up to 600V and tempature rated 90C.
Panduit - LCG4-C - Features
- 1-piece locking wedge for consistent performance and reliability
- Low thread force and high loop tensile strength
- Curved tip is easy to pickup from flat surfaces and allows faster initial threading to speed installation
- Greater resistance to damage caused by ultraviolet light
- Applications: Facility Electrical Protection
Specifications
Specifications
Panduit - LCG4-C - Specifications
| Gauge | 4 Awg |
|---|---|
| Inspection Hole | No |
| Lug Material | Copper |
| Type | Mechanical |
| UNSPSC Code | 39121400 |
| Technical Information | cULus Listed for Direct Burial UL 467 |
| Product Type | Mechanical Lug |
| Base Material | Copper |
| Number of Stud Holes | 1 |
| Barrel Type | Single Barrel |
| Tongue Type | Straight Tongue |
| Tongue Angle | Straight |
| Finish/Coating | Bare |
| Stud Hole Size (In.) | 1/4 |
| Stud Hole Size (mm) | 6.35 |
| Screw Type | Slotted |
| Maximum Copper Conductor Size (AWG STR) | 4 |
| Minimum Copper Conductor Size (AWG SOL) | 14 |
| Tongue Width (In.) | 0.54 |
| Tongue Width (mm) | 13.7 |
| Tongue Thickness (In.) | 0.09 |
| Tongue Thickness (mm) | 2.3 |
| Overall Length (In.) | 1.11 |
| Overall Length (mm) | 28.2 |
| Overall Width (In.) | 0.54 |
| Overall Width (mm) | 13.7 |
| Overall Height (In.) | 0.55 |
| UPC | 61305666977 |
Panduit - LCG4-C - Package Information
| UPC | 61305666977 |
|---|---|
| Standard Packaging Quantity | 100 |
| Standard Packaging Volume (cf) | 0.0328 |
| Standard Ctn. Quantity | 0 |
| Standard Ctn. Volume (cf) | 0.0000 |
Panduit - LCG4-C - Videos
| Panduit LCG4-C Videos | Click to View |
|---|
